• Automatic：Fully Automatic
• Transport Package：Wooden Packing
• Specification：5900x1000x1900mm
• Trademark：loyal
• Origin：Jinan, China
• HS Code：8438800000
• Production Capacity：5000 Sets,Year

Basic Info.

Automatic Fully Automatic Transport Package Wooden Packing Specification 5900x1000x1900mm Trademark loyal Origin Jinan, China HS Code 8438800000 Production Capacity 5000 Sets/Year

Product Description

Twin screw soy protein production line
 Product Description

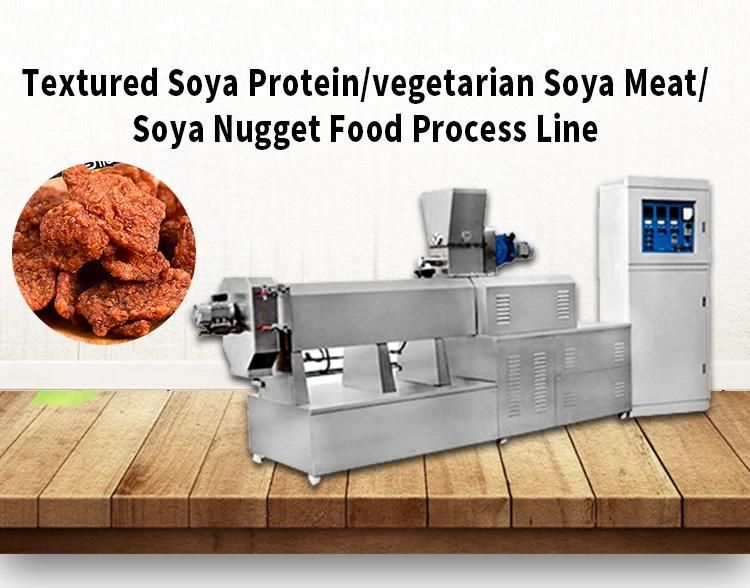

Automatic Textured Twin Screw Extruder Meat Manufacturing Soya Protein Production Line

The soybean extruder machines uses defatted soybean meal and peanut meal as the main raw materials, which are stirred, squeezed and sheared to form a layered fiber structure; its product has a high protein content, has a meaty state and taste, and has the characteristics of oil absorption, water absorption, and taste absorption; Free of cholesterol and animal fat. It can be widely used in meat products, fast food, quick-frozen food, and can also be made into various vegetarian snack foods and vegetarian dishes. Soya protein food processing line also be named TVP/TSP/FVP(Textured vegetarian soy protein/ Fiber protein) is deisgned with our rich experiences on food extruder industry.

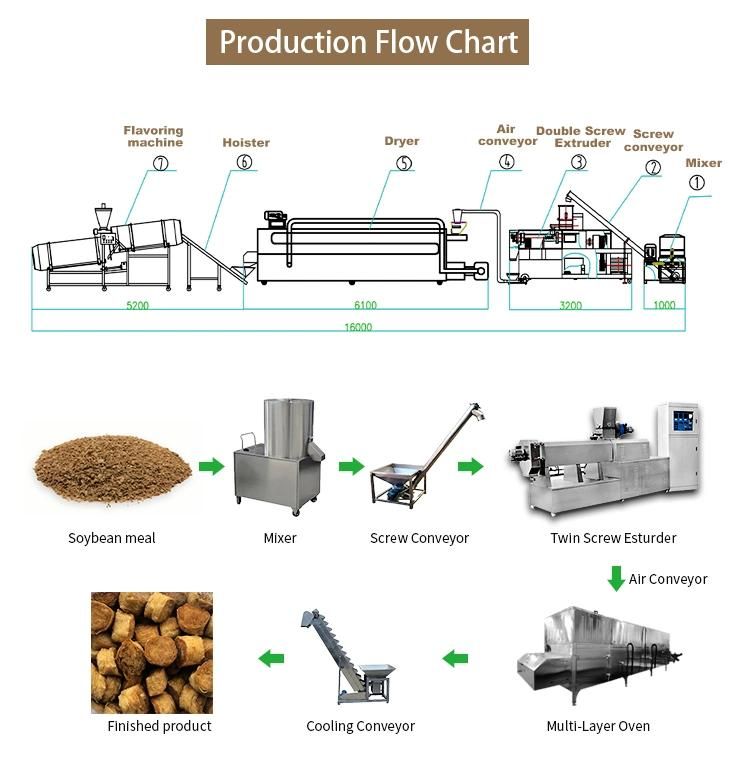

Production Process
Automatic Textured Twin Screw Extruder Meat Manufacturing Soya Protein Production Line
Mixer (mixing powder) → 2. Screw conveyor → 3. Twin screw extruder (extrusion, cutting and forming) → 4. Air conveyor (conveying) → 5. Oven (baking) → 6 .Cooling conveyor

NO.	Product Name	Function
1	Flour Mixer	Mixing raw materials, water, additives
2	Screw Hoister	The screw conveyor can be conveyed horizontally or at any angle. The materials are conveyed through stainless steel rollers without leakage and dust pollution.
3	Double Screw Extruder	To cook the soyabean meal and extruded in different shapes. The machine is composed of a feeding system, an extrusion system, a rotary cutting system, a heating system, a transmission system, and a control system. It adopts advanced screw extrusion technology and uses high temperature and high pressure to mature and expand the material into one-time completion.
4	Hoister	Deliver the product to the oven
5	Oven	The oven is a multi-layer circulating dryer, can reduce the moisture of extruded protein snacks.
6	Cooling Conveyor	This equipment is used for product cooling. To cool down the extruded protein snacks and send to next equipment.
7	Packing Machine	Pack the soya protein in different size bags.

Product parameter
Automatic Textured Twin Screw Extruder Meat Manufacturing Soya Protein Production Line

Model	LY-65	LY-70	LY80
Installed Power	90kw	110kw	150kw
Power Consumption	70kw	90kw	130kw
Capacity	100-150kg/h	150-200kg/h	300-350kg/hr
Dimension	19x2x3.5m	32x2.5x3.5m	38*4.5*6.5m

Finished product
(1)Dry Textured soya protein Pellets, Crumbs, Minced, Flakes, Chunks, Chips, Schnitzel, Nuggets.
(2)High moisture wet protein Soya,pea, Pea-sunflower

Soy protein is a kind of plant protein. The amino acid composition of soy protein is similar to that of milk protein. Except for slightly lower methionine, the content of other essential amino acids is relatively rich. It is a plant-based complete protein. In terms of nutritional value, it can be equivalent to animal protein. It is also the closest to human body in terms of genetic structure. So it is the most nutritious plant protein.

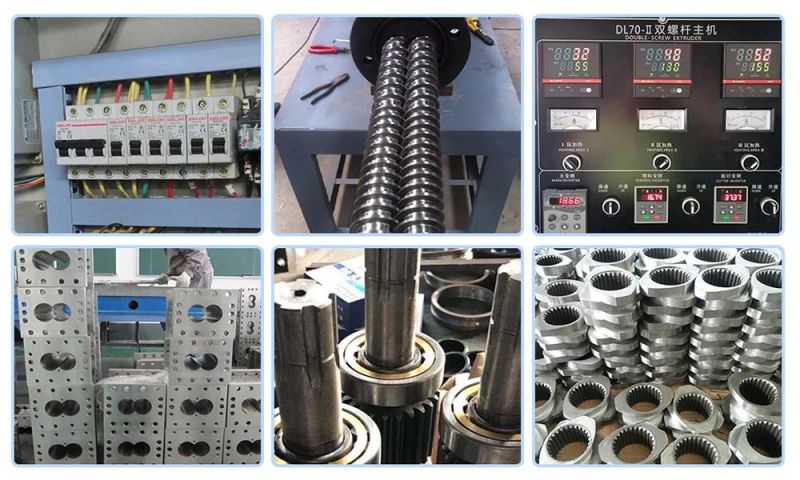

Machine details
advantages Regarding Soybean protein production line

1. The alloy (38CrMoAL) screw is nitrided, which has high strength and wear resistance. Strong self-cleaning ability, no need to unload or clean the barrel and screw when baking or changing materials.
2. The feed system, extrusion system, and cutting system all adopt speed-adjusting converters. Food-grade stainless steel twin-screw feeder provides stable feeding during the entire food processing process.
3. The gear box has an automatic lubrication function to extend the life of the gear.
4. The world-famous Siemens main motor, quality assurance
5. A radiator is added to the driving part to force a cooling effect to ensure the safe operation of the extruder.
6. The cutting knife is fixed on the die base, and the triangular belt drives the rotary cutting.

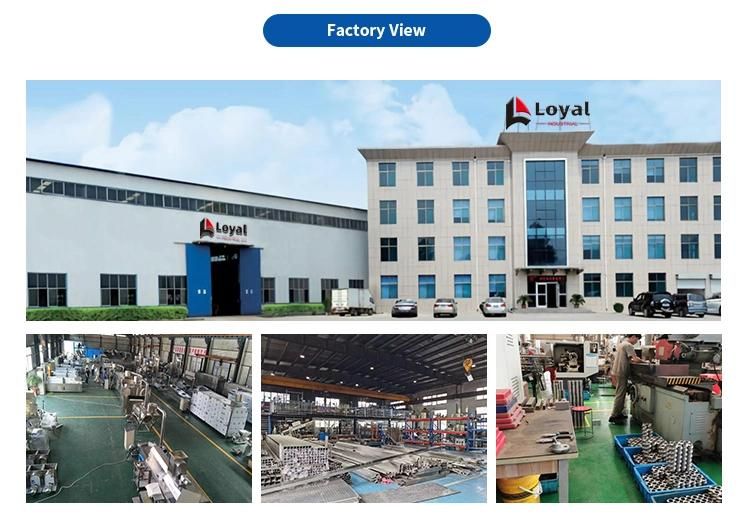

Company Profile

We are a reliable factory located in Jinan, a beautiful spring city in China.
We have a complete management system ISO9001.
We are the largest manufacturer of food processing machinery in Jinan. The Loyal brand is well-known in the global and domestic markets. It is exported to more than 50 countries and regions. We have ISO system, SGS certificate, 10 CE certificates, and 25 technical patents. Since then, we have continued moving forward. Quality control, new technology development and better customer service. Loyal's leading products include food extruders, industrial microwave systems, biscuit production lines, instant noodle production lines, puffed and fried snack foods, breakfast cereal corn flakes, fortified rice production lines, TSP food, pet food and fish feed production lines ,Packing Machine.
More than 20 engineers have more than 8 years of work experience and have footprints in more than 50 countries and regions.
Provide 24-hour telephone mailing service to provide you with timely and feasible solutions and better after-sales service.

our service:
pre-sale service
1. Provide technical parameters
2. Factory layout and size recommendations
3. Provide general formula
4. Custom Design Service
5. About the market, machinery, materials, packaging
Professional advice 6. It is recommended that a professional ship agent or help to book a ship as the customer's request.
7. 24 hours online after-sales service
After-sales service
1. The distribution map will be provided according to the buyer's request.
2. An operation manual will be provided after delivery.
3. One year warranty, lifetime maintenance, cost price.
4. Free fragile spare parts will be sent together with the container.
5. The first installation can be done by an engineer.
 6. Train workers in the customer's factory.

Packaging and transportation:
Packing: with packing film and wooden box, or according to customer needs.
Delivery time: 10-15 working days.
Transportation type: sea, railway, etc.
