• Model NO.：HT-LXP5
• Drying form of centrifugal nozzle：Electric
• Revolution of atomizer (r.p.m)：22000
• Diameter of atomizing disc(mm)：50
• Dried powder recovery rate (%)：more than 95%
• Transport Package：Fumigation-Free Wooden Case
• Specification：1200*2000*2300mm
• Trademark：HENTO
• Origin：Henan, China
• Production Capacity：5kg,H

Basic Info.

Model NO. HT-LXP5 Drying form of centrifugal nozzle Electric Revolution of atomizer (r.p.m) 22000 Diameter of atomizing disc(mm) 50 Dried powder recovery rate (%) more than 95% Transport Package Fumigation-Free Wooden Case Specification 1200*2000*2300mm Trademark HENTO Origin Henan, China Production Capacity 5kg/H

Product Description

Stainless Steel Spray Drying Equipment On Sale1.Production Description:
1, Working Principle
Air through the filter and heater,enter into the drying chamber at the top of the hot air distributor, hot air spiraling evenly into the drying chamber,liquid material through the filter,sent the top drying chamber of centrifugal spray head by pump.and it is sprayed into tinny fog droplets, with great surface area in contact with the hot air and the water evaporated quickly, within a very short time to dry grain products, in the bottom and the cyclone separator capture by wet exhaust fan to outside.
2.Feature And Usage
1)The spray dryer have fast drying speed, the material liquid by the centrifugal spray, to increase surface area, in the high temperature air, can evaporate 95-98% water by memont. it takes only a few seconds drying time.
2)It Suitable for heat-sensitive materials.Because the droplets and hot air flow and flow direction, although the hot air temperature is higher, but the material does not overheat during water evaporation.
3) Product has good dispersion, fluidity and solubility. because of the instantaneous drying, the product can maintain uniform fine granular
4) Production processing is simple, convenient operation and control.Special material for 40-60% moisture content (up to 90%) can dry powder products one time. Dried power don't need to crushing and screening, reduced the production process, improve the product purity.For the product particle size, bulk density, moisture, within a certain range, can change to adjust the operating conditions, control and management is very convenient.
2.Technical Parameter:

Model	HT-LXP5
Inlet temperature (°C)	≤50-350ºC Automatically controlled
Outlet temperature (°C)	<60-100ºC
Water evaporation capacity(kg/h)	5
Drying form of centrifugal nozzle	Electric
Revolution of atomizer (r.p.m)	22000
Diameter of atomizing disc(mm)	50
Max. power of electric heater(kw)	9
Overall dimension (m)	1200*2000*2300mm
Dried powder recovery rate (%)	≥95

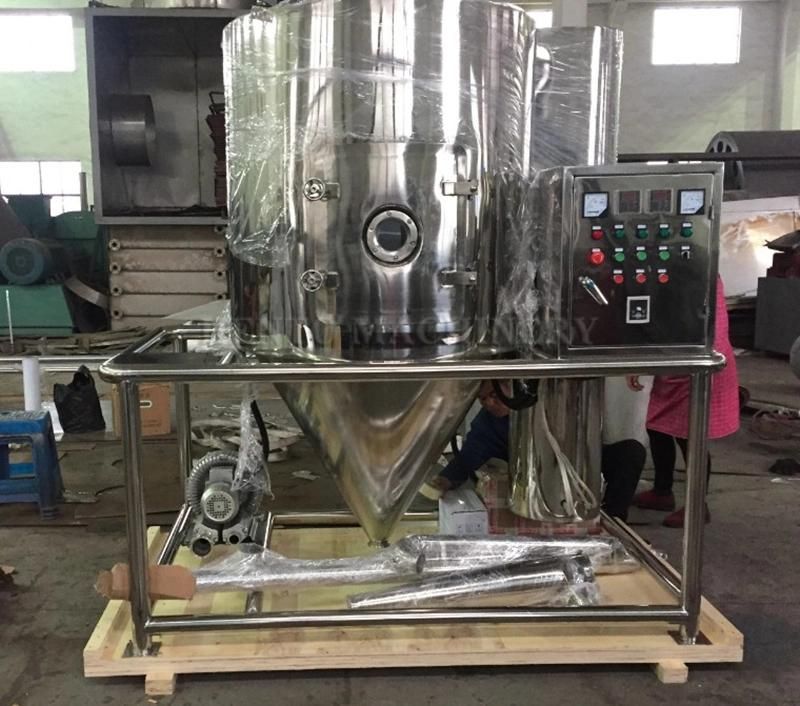

3.Product Picture:



4.Company Certificate:


5.Our Customer:


6.Contact Information:
