Machinery FOR Food Beverage Cereal

Cljpaddy Processing Machine Tscy125 Paddy Rice Pre-Cleaner Machine

HUNAN CHENZHOU GRAIN & OIL MACHINERY CO., LTD.
  • After-sales Service:Online Service
  • Warranty:1 Year
  • Type:Rice Mill
  • Application:All
  • Voltage:380V
  • Appearance:Horizontal

Base Info

  • Press Materials:Rice
  • Condition:New
  • Customized:Customized
  • Weight:500kg
  • Air Volume:10-12m3,Min
  • Capacity:15-30 T,H
  • Transport Package:Wooden Case
  • Specification:2240x1180x1920mm
  • Trademark:CLJ
  • Origin:China
  • HS Code:84378000
  • Production Capacity:4000 Units ,Year

Description

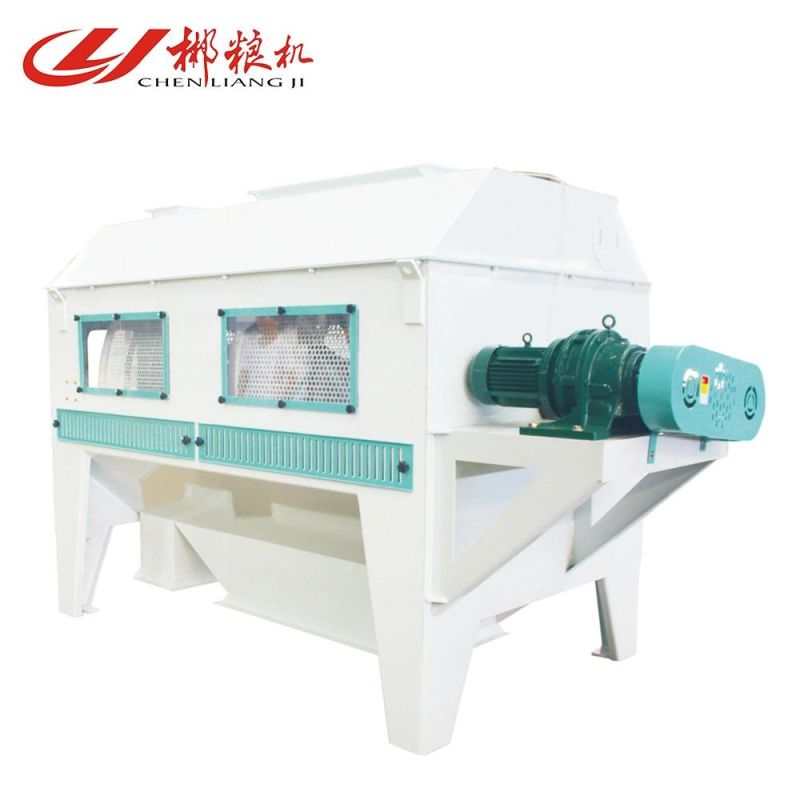

Cljpaddy Processing Machine Tscy125 Paddy Rice Pre-Cleaner Machine
Model
Numerical value
Parameters
TSCY80ATSCY100TSCY125
Capacity(precleaning/cleaning t/h)10/2020/3030/40
Sieve diameter (mm)80010001250
Sieve length (mm)125016001800
Sieve mesh configuration(mm)16 X13X1118 X16X1318 X16X13
Air volume (m3/min)10/1415/2017/25
Rated power (kW)       1.11.1/1.5     1.5
Rotating speed (Rotation/min)       1713.6     11.25
Weight(kg)600700950
Dimensions(length*width*height mm)1940X940X16702400X1275X20202750X1500X2420





TSCY combined drum sieve can be used to process raw materials in the rice mill, flour mill, vertical silos of grains and other industries. Similar to other pre-cleaning devices, it is mainly to eliminate large impurity in the raw material, such as straws, wheat straws, scraps of paper, soil block, corn leaves, corn cobs and other wastes, avoiding faults and damage in the machine and conveyer devices.
    With high output, low energy consumption and easy installation, this machine needs minimal space and maintenance. The sieve is easy to be replaced. It has a unique transmission mechanism, feeding mechanism as well as an extended sieve, lengthening the sieving process of the materials. In accordance with the quality of the material, the machine is equipped with proper sieve meshes to reach the output requirement and separating. Moreover, replacing riding wheels and sieve rollers subject to damage is more convenient, for each riding wheel has a replacing hole.
