High Shearing Dispersing Homogenizing Emulsifier
Yangzhou ZhiTong Machinery Co., Ltd.- Process:Thermal Processing
- Power Source:Electric
- Certification:CE, ISO9001
- Automatic Grade:Automatic
- Application:Milk
- Customized:Customized
Base Info
- Model NO.:ZT
- Model:200L
- Power:7.5kw
- Material:Stainless Steel
- Heating Method:Steam Heating
- Thickness:4mm
- MOQ:1set
- Polish:300 Mesh
- Jacket:Double
- Quality:Excellent
- Control:Button Control Panel
- Transport Package:Ply Wood Case
- Specification:Stainless steel
- Trademark:ZHITONG
- Origin:Guangzhou
- HS Code:8479820090
- Production Capacity:5000
Description
Basic Info.
Model NO. ZT Model 200L Power 7.5kw Material Stainless Steel Heating Method Steam Heating Thickness 4mm MOQ 1set Polish 300 Mesh Jacket Double Quality Excellent Control Button Control Panel Transport Package Ply Wood Case Specification Stainless steel Trademark ZHITONG Origin Guangzhou HS Code 8479820090 Production Capacity 5000Product Description

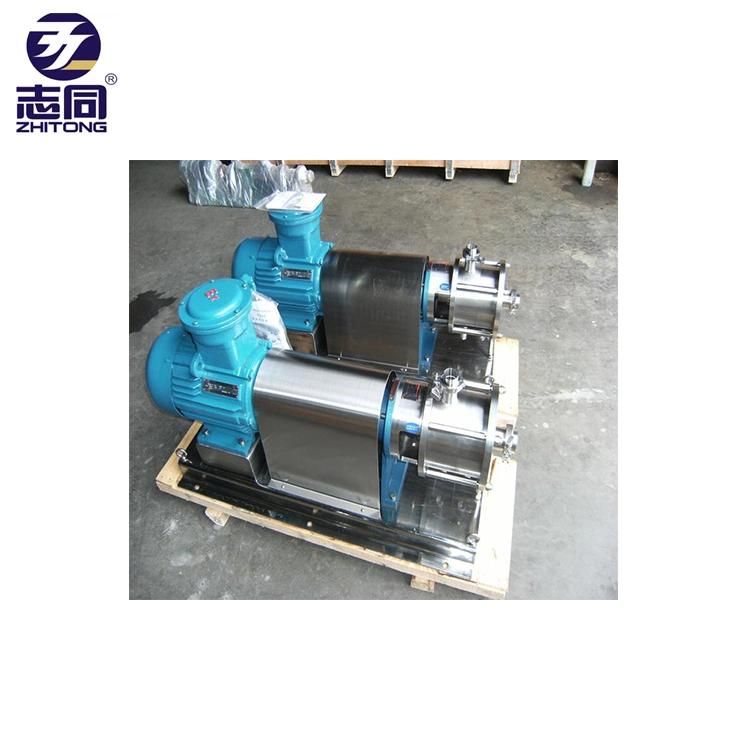

High Shearing Dispersing Homogenizing Emulsifier Equipment Parameters:Item | High Shearing Dispersing Homogenizing Emulsifier |
Model | ZT-15KW |
Motor | ABB Motor |
Power | 15KW |
Speed(RPM) | 2920 |
Flow (M3/H) | <16 M3/H |
Size of Pipe outlet | 50mm |
Voltage | 380V 50HZ 3 Phase |
Material | All parts are stainless steel except the motor, contact parts is SUS316L |
Import and Export Caliber | Import :DN65 , Export: DN50 |
Direction of Inlet and Outlet | Sucking in from Vertical, expelling from the radial direction |
Protective Level | IP55 |
Mechanical seals | Double mechanical seal, need to cooling water cooling mechanical seal |
Static seal | Fluorous rubber, PTFE |
Max allowable Temp. | 100 degree Celsius |
Finish | Part of contacting material Ra0.4 and other parts Ra0.8 |
Structure of rotor and stator | Rotor and stator occlude,material is SUS316L,3 group in all |
Structure | Horizontally installing on the outside of vessel, contacting with pump and can process circularly |
If you have any problem,please feel free to contact us.
