• Parts 1：Glycol Jacket, 3mm Stainless Steel Shell
• Parts 2：PT100, Solenoid Valve
• Parts 3：Manway, Rotating Racking Arm
• Parts 4：Sample Valve, Carbonation Stone
• Parts 5：Drain Outlet, Dry Hopping Port
• Parts 6：CIP Spray Ball, CIP Port
• Parts 7：Pressure Release Valve, Spunding Valve
• Parts 8：Level Gauge, Temperature Gauge
• Warranty：2 Years
• Certification：Ce, ISO, TUV
• Drawing：Provided Before Production, Customized
• Transport Package：Iron Frame + Wooden Box
• Specification：300L-20000L
• Trademark：Cassman
• Origin：Jinan
• HS Code：8438400000
• Production Capacity：50000PCS,Year

Basic Info.

Parts 1 Glycol Jacket, 3mm Stainless Steel Shell Parts 2 PT100, Solenoid Valve Parts 3 Manway, Rotating Racking Arm Parts 4 Sample Valve, Carbonation Stone Parts 5 Drain Outlet, Dry Hopping Port Parts 6 CIP Spray Ball, CIP Port Parts 7 Pressure Release Valve, Spunding Valve Parts 8 Level Gauge, Temperature Gauge Warranty 2 Years Certification Ce, ISO, TUV Drawing Provided Before Production, Customized Transport Package Iron Frame + Wooden Box Specification 300L-20000L Trademark Cassman Origin Jinan HS Code 8438400000 Production Capacity 50000PCS/Year

Product Description

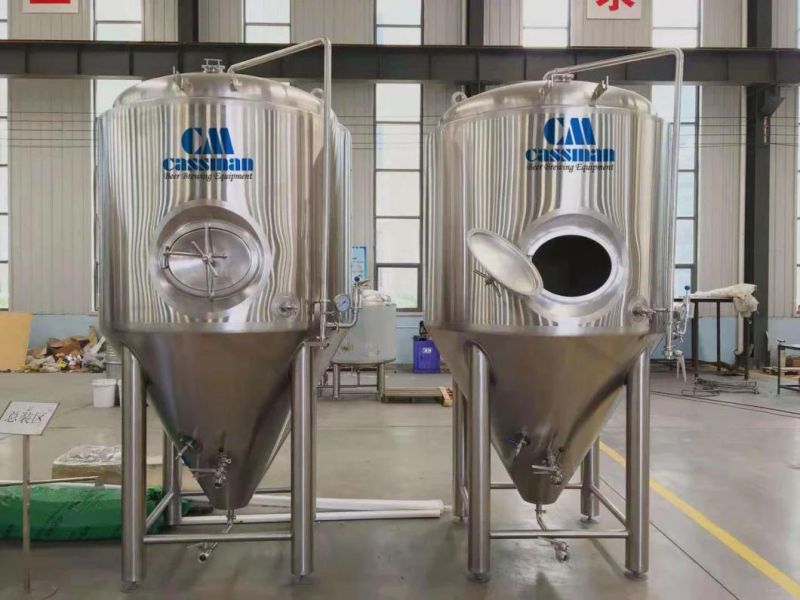

Cassman 300L 500L Stainless Steel Beer Brewery Equipment for Sale

• 300L 500L Net capacity, 25% head space
• Diameter 1060mm*Height 2100mm.
• SUS 304 material insulated tank.

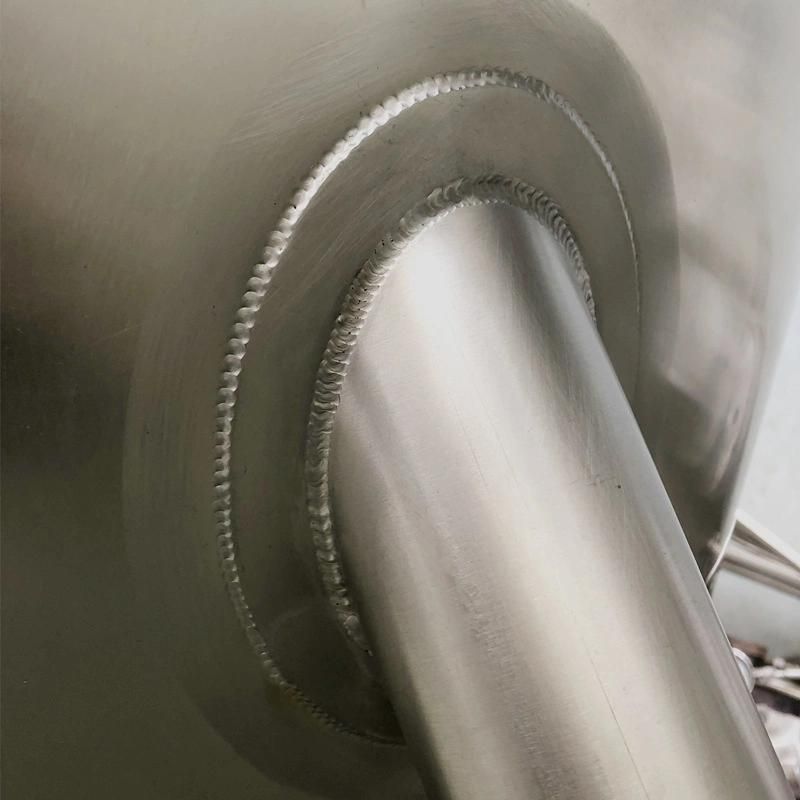

• 100% TIG welding with pure argon gas.
• 0.3 Mpa test pressure. 0.2 Mpa working pressure.
• Dimple cooling jacket, side and cone of the tank. NPT connection.
• Top relief valve(PVRV), Top dry hopping port.
• Sanitary side manway (top for option).

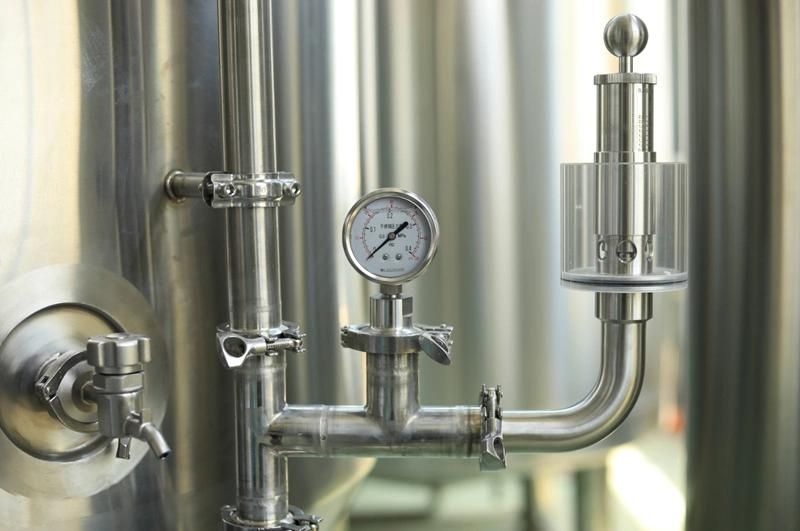

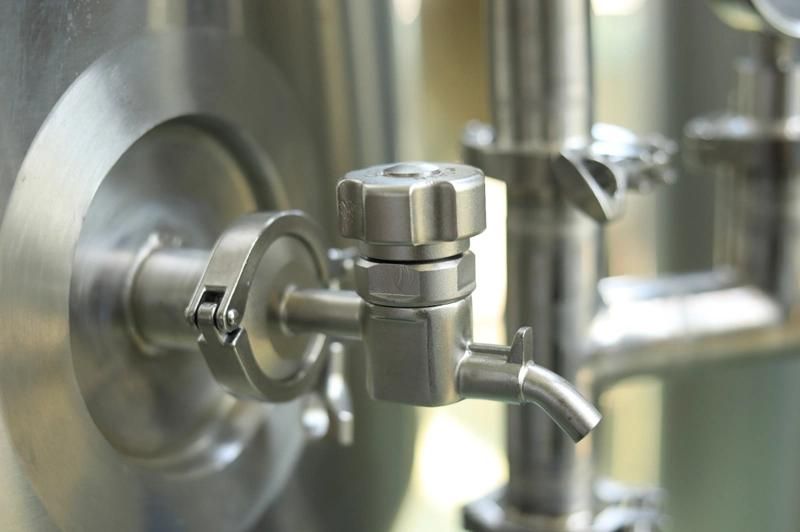

• Sample valve. Pressure valve, Co2 relief valve, DIN/TC racking arm.

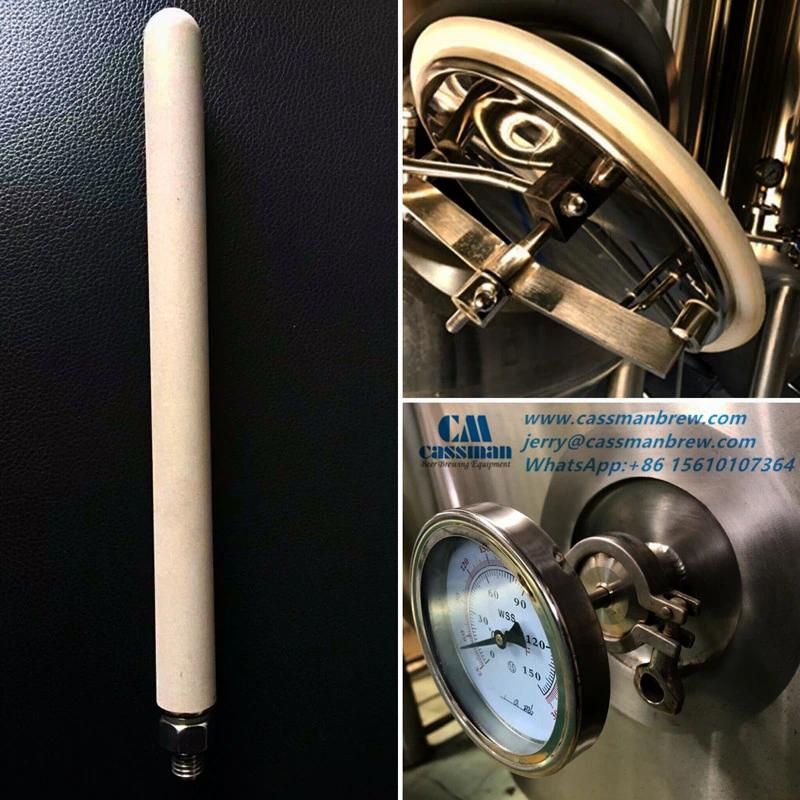

• 60 degree cone.carbonation stone,

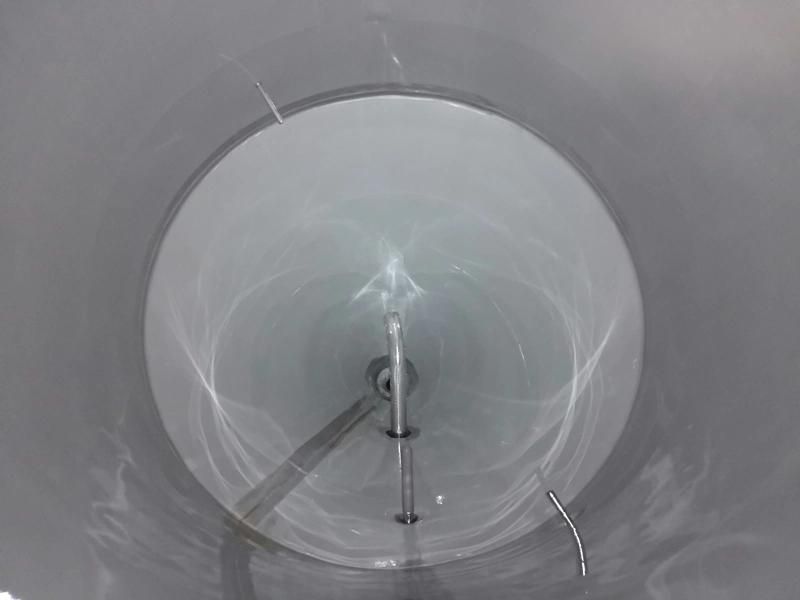

• Level tube, CIP pipe, Blow Off pipe,

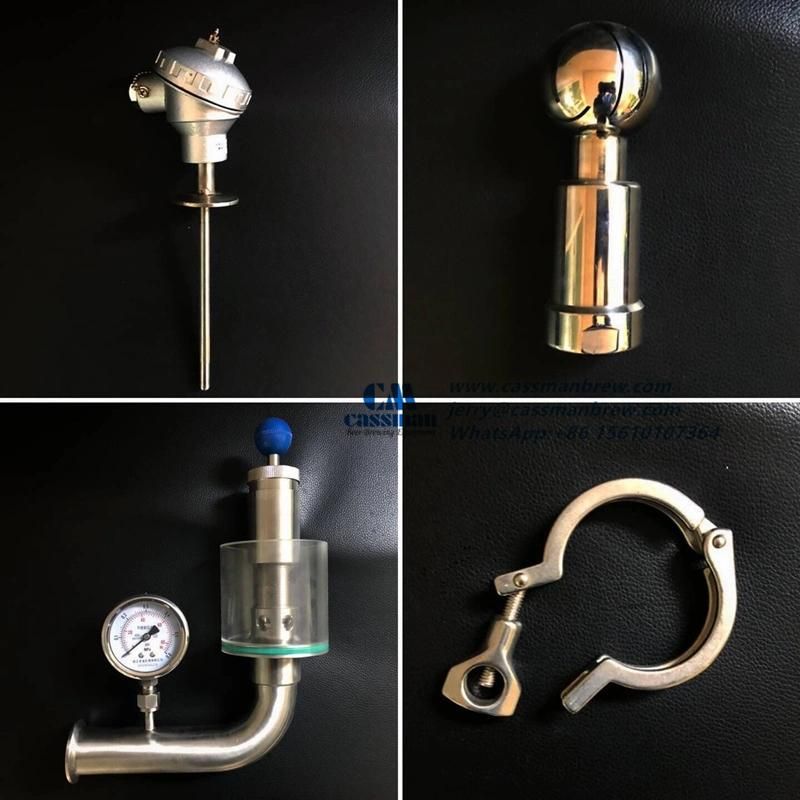

• 24V solenoid valve.Dial Thermometer. RTD sensor.

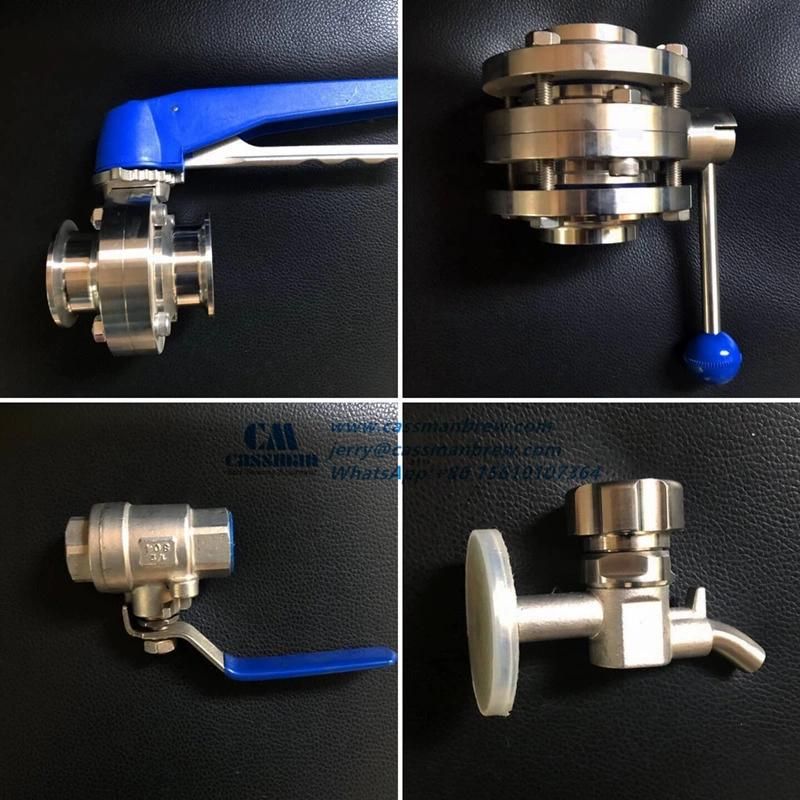

• Stainless steel 304 butterfly valve.(DIN, Tri-clamp)
• Lifting Lugs,Adjustable Feet,Ladder Hooks.

Customized Drawing provided, height & diameter can be revised according to your room space.
CE, ISO, TUV Certification. 2 Years warranty.
