• Model NO.：WSHG series
• Key Word 2：Fruit Dryer
• Keyt Sword 3：Dryer Machine
• Raw Material：Fruis, Vegetable, Fish, Meat, Beef Jerky, Herbs
• Material：Carbon Steel; Stainless Steel
• Transport Package：Export Wooden Cases
• Specification：ce co ccc
• Trademark：GMEC
• Origin：Zhengzhou
• HS Code：8474900000
• Production Capacity：50kg,Batch

Basic Info.

Model NO. WSHG series Key Word 2 Fruit Dryer Keyt Sword 3 Dryer Machine Raw Material Fruis, Vegetable, Fish, Meat, Beef Jerky, Herbs Material Carbon Steel; Stainless Steel Transport Package Export Wooden Cases Specification ce co ccc Trademark GMEC Origin Zhengzhou HS Code 8474900000 Production Capacity 50kg/Batch

Product Description

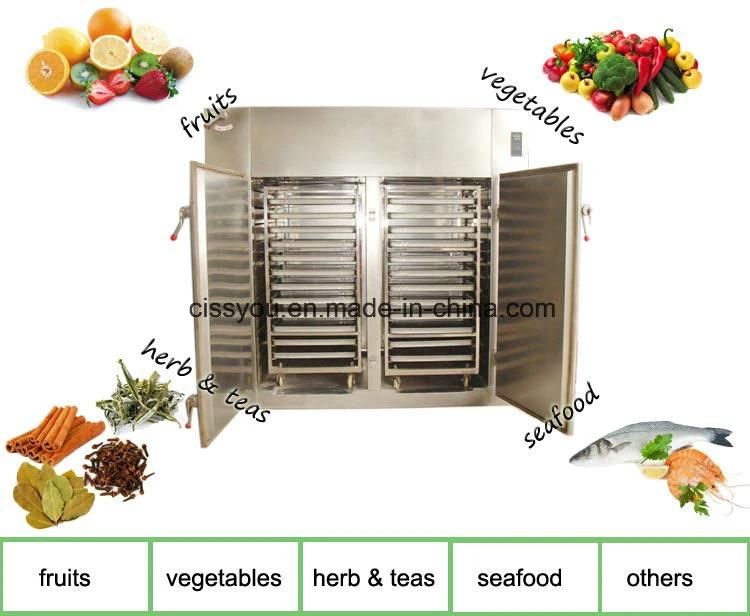

China vegetable fruit dryer/sea food dryer/ fish food dryer


Description
Food Dryer/Industrial Food Drying Machine/Mulfunctional Dryer 008615238618639
1.Food drying machine Energy:gas,electric
2.Food drying machine material:stainless steel
3.Food Dryer Capacity:500kg/lot



Detailed Description:
1.Inside wall is stainless steel SUS304 with thickness 0.5mm
2.Outside wall is carbon steel ST12 with thickness 1.2mm look
3.Stainless Steel drying plate size is 640x460x45mm
4.The material of heat preservation :  fiberglass cotton  w/thickness 80mm

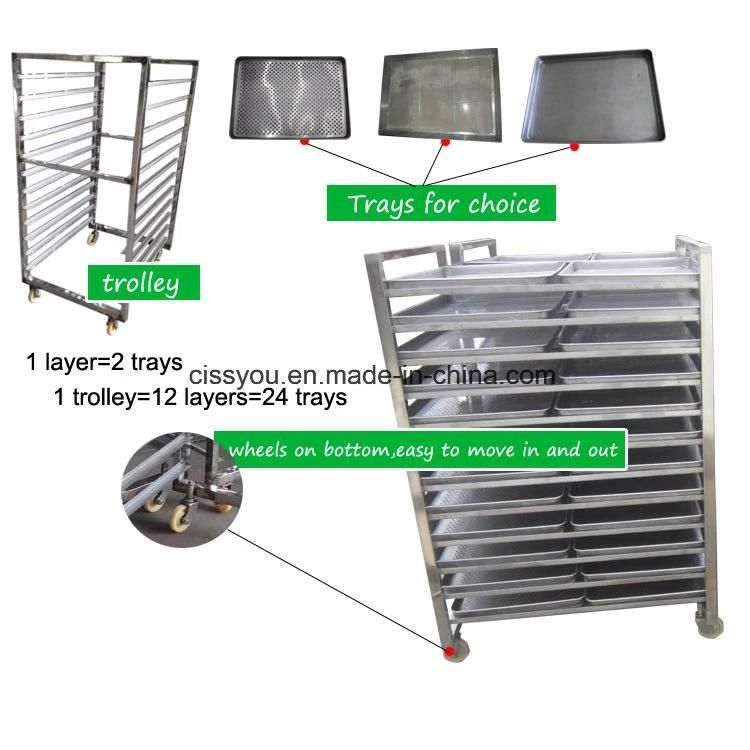

5.Stainless steel SUS304 drying car: 1pc,2pcs, 4 pcs, 6 pcs,8pcs for five models
 Mail us get catalog with prices



Working principle and features:
The working principle of the WSHG series drying machine is as follows: the normal temperature air is adopted. After passing through the heat exchanger, it is changed into the high temperature dried hot air. Under the function of fan, the hot air and materials carry out heat exchange to achieve to dry. The most prominent features of the box type drying machine are convenient operation, good flexibility and controllability, wide application and strong practicality. It is especially suitable for products containing sugar or viscous products, such as sugared carrot, cabbage, kelp laver and etc. In addition, the hygienic condition is good, which makes it be easily cleaned and maintained. The parts contacting foods are made of stainless steel, which fully complies with hygienic requirements for exports.( seafood dryer dehydrator )

Model	Number of Trolley	Number of  Plate	Motor	Area of the plates	Productivity (fresh)	Dimension (m)
WSHG-1	1	24	9kw	5.76m²	50kg/batch	1.55*0.8*2.2
WSHG-2	2	48	12kw	11.52m²	100kg/batch	2.1*1.1*2.3
WSHG-4	4	96	18kw	23.04m²	200kg/batch	2.1*2*2.3
WSHG-6	6	144	22kw	34.56m²	300kg/batch	2.6*2.1*2.3
WSHG-8	8	192	30kw	46.08m²	400kg/batch	4*2*2.3*2.62
