• Model NO.：TSST-1
• Application：Chips
• Customized：Customized
• Material：Food Grade Stainless Steel
• Frying Temperature：0-300 Degrees Celsius
• Fried Time：2-3min
• Automatic：Full
• Transport Package：According to Customer Requirement
• Specification：Customized
• Trademark：Ambitious
• Origin：China
• HS Code：8438600000
• Production Capacity：10sets,Year

Basic Info.

Model NO. TSST-1 Application Chips Customized Customized Material Food Grade Stainless Steel Frying Temperature 0-300 Degrees Celsius Fried Time 2-3min Automatic Full Transport Package According to Customer Requirement Specification Customized Trademark Ambitious Origin China HS Code 8438600000 Production Capacity 10sets/Year

Product Description

Potato Chips Machine 500 1000Kgh Fully Automatic Frozen French Fries Line

1. -Machine Introduction

The french fries production line is an advanced snack food processing equipment. It integrates
the advantages of all kinds of individual machines. It is easy to be operated, powerful and
investment saving.


Main processing of the french fries:

1) Soaking: The first stage of the production of french fries is soaking,to make stones and soil
adhering to the potatos surface to be easy to washed.

2) Washing: Washed away stones and soil adhering to the potatos surface by water at room temperature.

(The above two steps are optional,they're necessary when your potatos are very dirty)

3) Peeling&Washing: In this stage,the peeling machine of the french fries production line is continuous, and the peeling effect is achieved by rubbing with a carborundum roller, and then the residue is brushed off with a brush whee,at the same time,washed by the water spray device.

4) Sorting: Pick up the bad potatos,remove the spoiled one.

5) Slicing: Cutting machine is a machine for slicing potatoes for desired size. With the principle
of centrifugation,the potato chips can be cut to the required thickness quickly and accurately.

6) Starch Washing: The water of the starch washing machine can be recycled,and the export is
transported with water and sprayed again to improve the quality of the potato chips.

7) Blanching&Cooling: After starch washing,the chips are transfered into blanching machine for
blanching,for color pretection,after this,into the cold water tank for cooling.

8) Drying: Cold air drying machine works this process,to remove most water on the surface of the
french fries.Keep the product dry is necessary before they are put into frying process.

9) Frying: The potato chips are fried at a stable oil temperature and evenly presented in golden
yellow color.The continuous belt frying machine is equipped with PLC touch operation.The screen
can set and display the frying temperature and time.

10) Deoiling&Cooling: The french fries must be deoiled after fried, to remove the redundant frying oilon the surface,and lower the temperature before get in the packing machine.

11) Freezing: After fried from the continous frying machine, the french fries get into the freezing machine for quick freezed, then transfered into the cold storage.

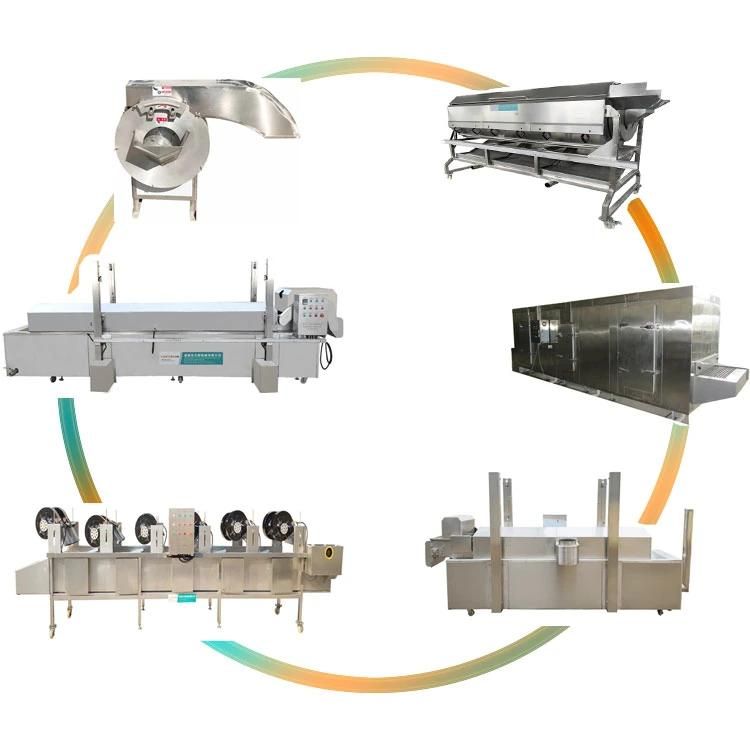

Main machines:



2. -Technical Data Details


Output	500kgs/hr	1000kgs/hr
Factory Layout(Min)	600m2, length 50m(Linear)	800m2, length 70m(Linear)
Consumption 1	Gas:11m3  /hr, Electric: 29KW	Gas:16m3 /hr, Electric:35KW
Consumption 2	Electric 250KW	Electric 300KW
Edible Oil Required	860L/Batch	1300L/Batch
Labor Required	5	8
Raw Potatoes Material	1000kgs	2000kgs



3. -Suitable For Products
Mainly for frying potato chips, french fries, banana chips, and so on.

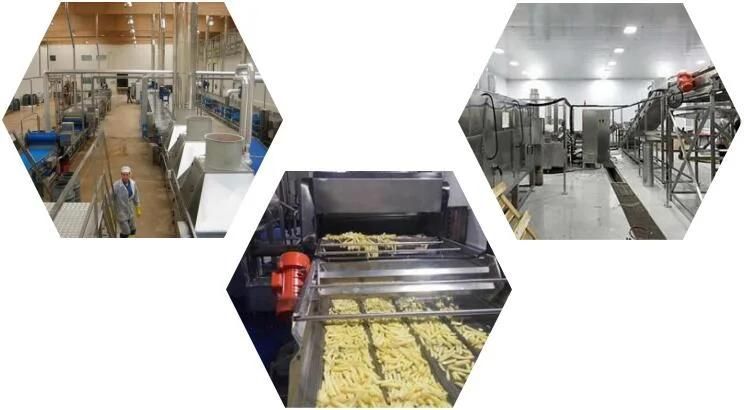

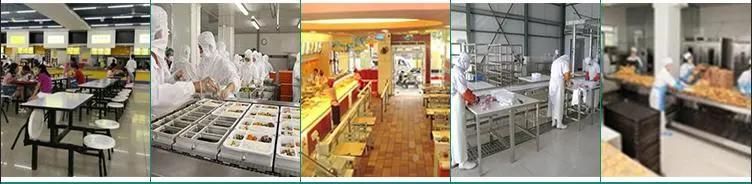

4. -Using Scene



5. -Applications

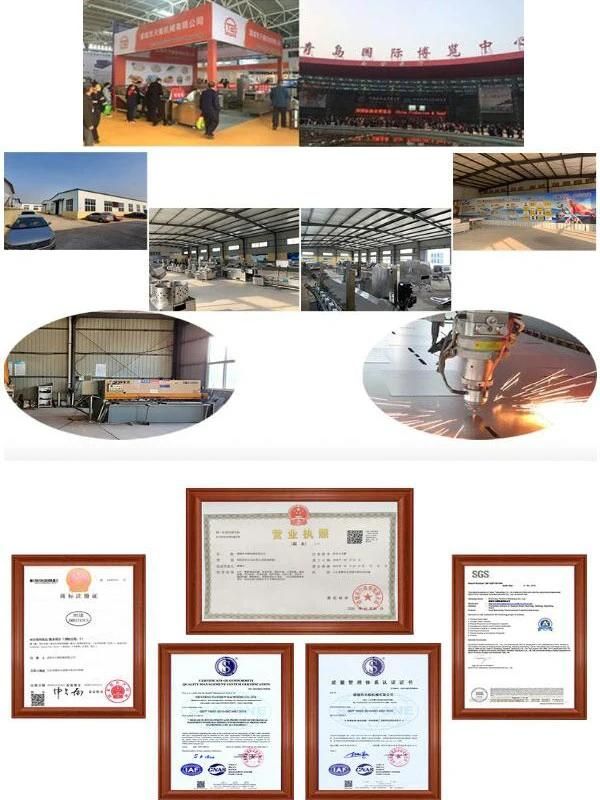

6. -Company Profile

Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing enterprise which integrates R & D and manufacturing. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.


Main products: Food machinery and complete production lines, including:
Vegetables&fruits cutting machines,
Peeling&washing machines,
Frying equipment,
Air drying machinery,
Blanching&cooking machine,
Food flavoring machine,
Food coating machine,
Freeze dryer,
Jacketed kettle,
Vacuum packing machine,
Complete production line for vegetables,snack foods,etc.

All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, etc. Some of them have pass the CE certificate. All of them could be customized, and we also provide and design individual machines for customers.



7. -Our Clients


8. -Packing And Shipment



9. -FAQ

Q1.Could we visit your factory to check the machine carefully and closely?

A:Welcome to our facotry,will provide machines testing service,face-face discussing,turnkey project design solution.


Q2.How long is your machine's guarantee time?

A:1 year without normal wear parts,machine itself life guaranteed.


Q3.If we have very special request for the complete production line,could you help me to do the design?

A:Experienced mechanical designer customized-design provided.


Q4.If we show you our layout of factory,can you help to design the whole process line?

A:Layout design service provided after received customer's factory layout size.


Q5.If we have samples of new products,can you help to analysis and design the machine?

A:Yes,our technical department can help to analysis,design and test the new products based on the specific requirements you provided.
