• Model NO.：BWG200
• Dimension：800*1250
• Transport Package：Sea Transportation
• Specification：190kg
• Trademark：GUSU
• Origin：China
• HS Code：8438200000
• Production Capacity：1000

Basic Info.

Model NO. BWG200 Dimension 800*1250 Transport Package Sea Transportation Specification 190kg Trademark GUSU Origin China HS Code 8438200000 Production Capacity 1000

Product Description

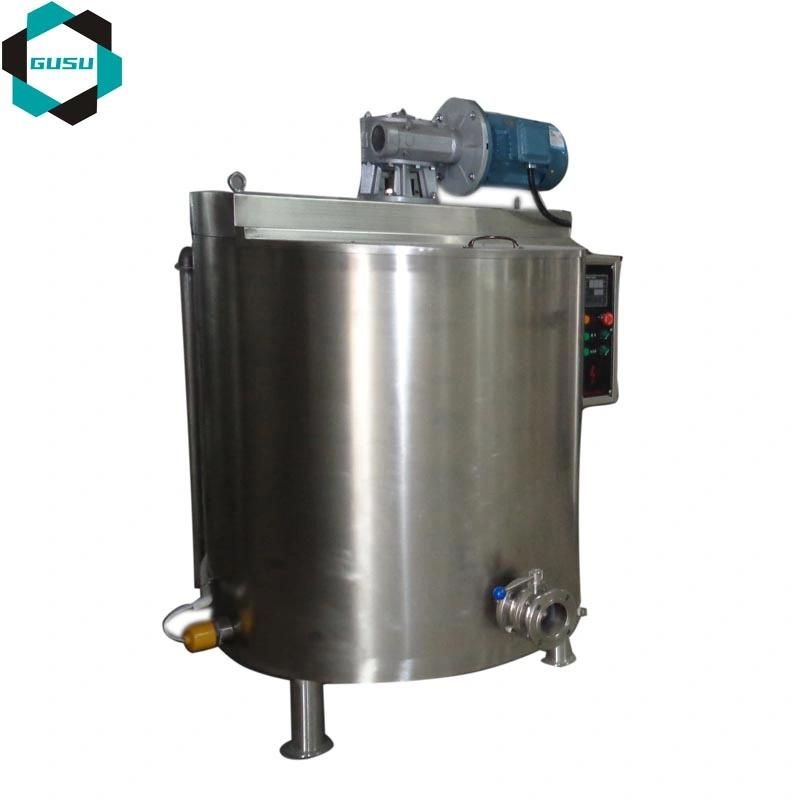

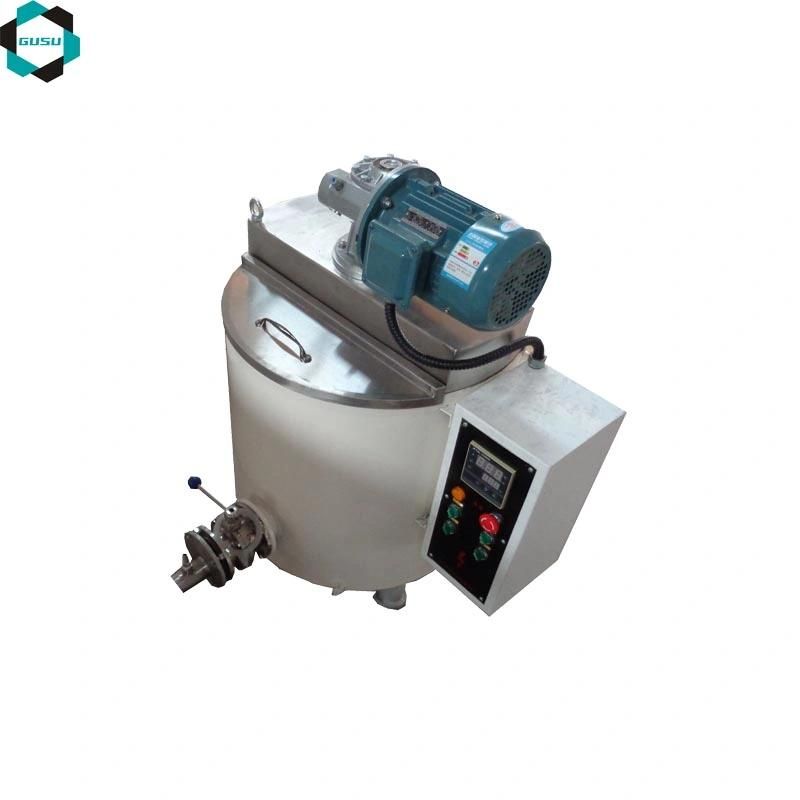

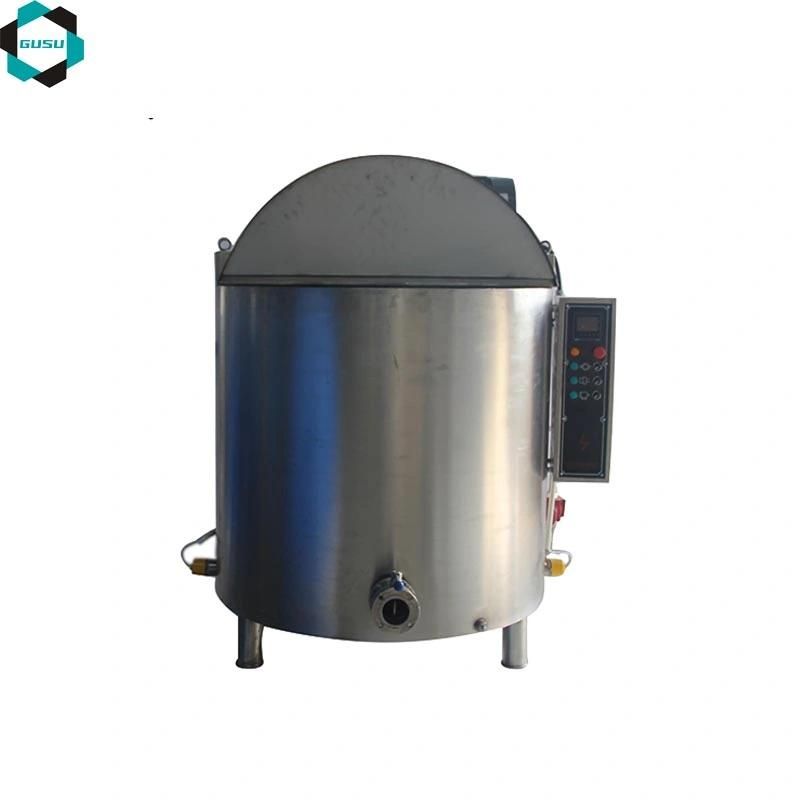

                                                    Chocolate Storage tankhocolate tanks are a crucial step in chocolate production - between the tempering and final molding phase. If you want delicately molded chocolates, the chocolate must be kept at the correct consistency and temperature. A highly advanced chocolate tank is the only way to achieve such results and exactly why you should choose GUSU as your machine suppliers.

From 100L to 5,000L and higher in the standard range of vertical tanks. Larger capacity vertical and horizontal tanks can be built to suit your specific need. These fully China made storage tanks are used to store finished liquid masses like chocolate, at a required temperature and are continuously moved by means of the stirrer in one direction. A heavy duty stirrer guarantees a continuous agitation of the mass. Water temperature in the jacket is controlled by means of a thermostat control which is governed by the setting on the control panel.

GUSU chocolate Storage tank comes in a sleek stainless steel design. Its thick shell makes it highly durable and built to last years on your production line.


Model	Capacity(L)	Motor Power(kw)	Weighe(kg)	Outer Dimension(mm)
BWG50	50	0.75	120	490*750
BWG100	100	0.75	150	700*1250
BWG200	200	0.75	190	800*1250
BWG300	300	0.75	200	900*1250
BWG500	500	1.5	350	1000*1380
BWG1000	1000	2.2	470	1220*1850
BWG2000	2000	3.0	1500	1400*2500
BWG3000	3000	4	2500	1700*2500
BWG5000	5000	5.5/7.5	3500	2000*2710
BWG6000	6000	5.5/7.5	4200	2130*2785
BWG7500	7500	11	5200	2600*3050
