Flat Lollipop Production Line
Ningbo Youlu Machinery Technology Co., Ltd.- Certification:CE
- Power Source:Electric
- Process:Thermal Processing
- Automatic Grade:Automatic
- Application:Candy
- Customized:Customized
Base Info
- Model NO.:YLFL
- Transport Package:with Wooden Case
- Trademark:YOULU
- Origin:Ningbo
- HS Code:8438900000
- Production Capacity:30 Sets,Month
Description
Basic Info.
Model NO. YLFL Transport Package with Wooden Case Trademark YOULU Origin Ningbo HS Code 8438900000 Production Capacity 30 Sets/MonthProduct Description
Application:

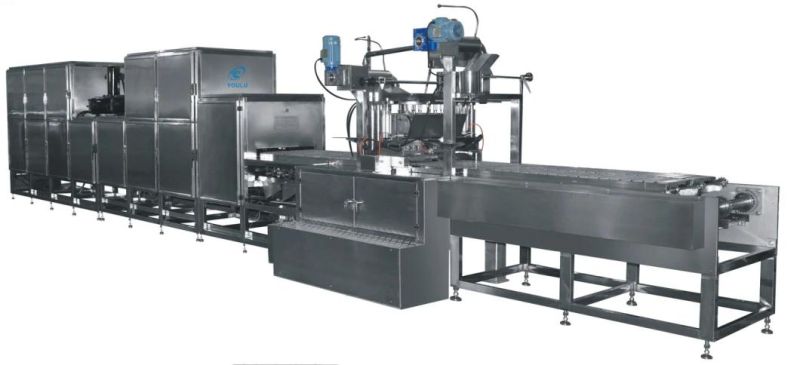

This machine is the advanced Flat Lollipop depositing production line .It can be produce flat lollipop ,ice cream flat lollipop, double flavor flat lollipop , double color or single color lollipop etc. It is an ideal equipment to produce good quality flat lollipop . The machine is characterized by mechanical and electrical integration, compact structure, high automatic, high output and high production efficiency.. The finished flat lollipop is made from this machine have transparent and smooth surface and good taste.The machine consists of dissolving tank, gear pump,storage tank, microfilm vacuum cooker, Depositing machine with cooling tunnel and lollipop stick push machine
Technical Details:
Model | YLFL-I | YLFL-II | YLFL-III | YLHC-V |
Capacity | 150kg/h | 300kg/h | 450kg/h | 600kg/h |
Power | 30kw | 45kw | 60kw | 75kw |
Air Consumption | 0.5m3min | 0.5m3min | 0.5m3min | 0.5m3min |
Steam Pressure | P<0.4-0.6Mpa | P<0.4-0.6Mpa | P<0.4-0.6Mpa | P<0.4-0.6Mpa |
Steam Consumption | 450kg/h | 450kg/h | 450kg/h | 450kg/h |
Water Consumption | 2200L/h | 2200L/h | 2200L/h | 2200L/h |
Humidity | 55% | 55% | 55% | 55% |
Dimension | 19500x1500x2700mm | 19500x2000x2700mm | 19500x2500x2700mm | 19500x3000x2700mm |
Weight | 6500kg | 8000kg | 9500kg | 11000kg |
