• Model NO.：DT70
• Model No.：Snack Machine
• Material：Stainless Steel
• Motro Brand：Siemens Motor
• Inverter：Delta Brand
• Size：15.0*5.0.*5.0
• Electric Parts：LG, FUJI, Omron etc
• Warranty：1 Year
• Speed Controlling：Inverter
• Stainless Steel Material：201,304
• Manufacture：Jinan
• Transport Package：Standard Wooden Case
• Specification：CE ISO BV SGS
• Trademark：Jinan Datong Machinery Company
• Origin：Jinan Shandong
• HS Code：84361000
• Production Capacity：100-150kg,H

    Parameter of nutritional breakfast cereal making machine

Model

DT-65-III

DT-70-III

DT-85-III

Installed capacity(kw)

70

105

205

Real power(kw/h)

50

75

150

Output(kg/h)

100-150

200-260

400-500

Dimension(mm)

17000*1300*2200

20000*1500*2200

30000*1500*2600

2.1 Twin-screw extruder

1.The main extruder adopts frequency speed controlling with high automation.

2.The screws are made of the stainless steel and special craft, which has the advantage of durable usage, high pressure,and longer life.
3.The forced lubrication system ,which can guarantee the equipment transmission life longer.
4.Auto-temperature control system and self-cleaning ,which makes it more convenient.
5.It has the widest range of applications and can produce different products with different equipment and models.

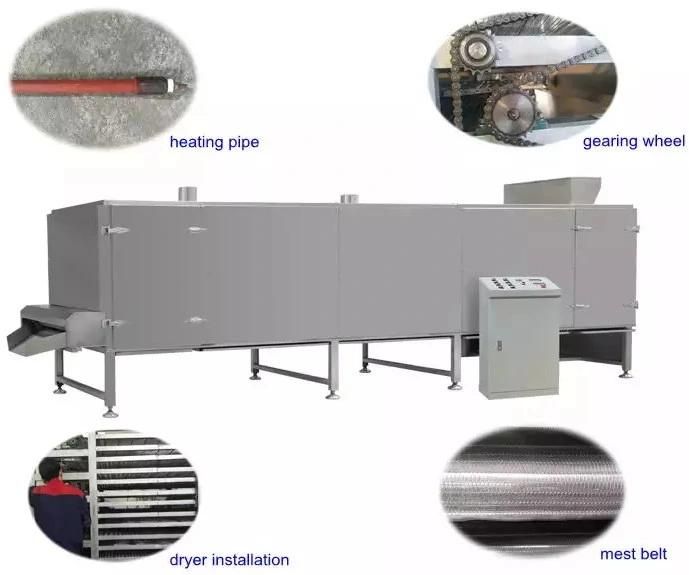

2.2 Multi-layer dryer

1.We have four types of dryers, which includes fuel ovens, gas ovens, electric ovens, and high temperature inflated ovens (used to produce corn flakes).
2.Dryer is compact, has small dry area and a largesuperficial area. It also features small scale of heat elimination and high thermal effciency.
3.Mesh belt conveyors and thermal insulation boards all use stainless steel material, making the equipment clean and sanitary.

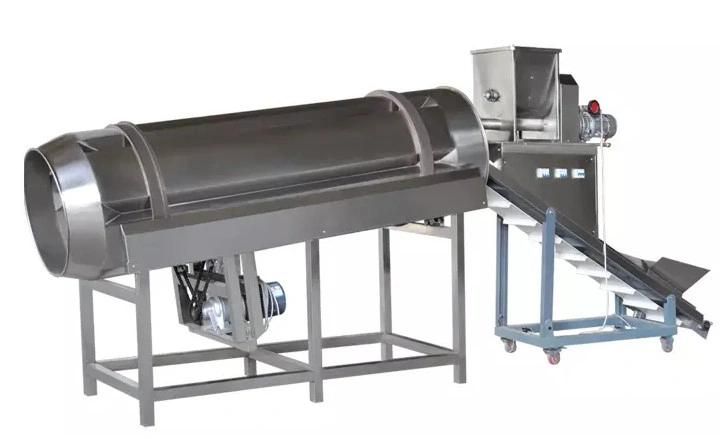

2.3 Flavoring line

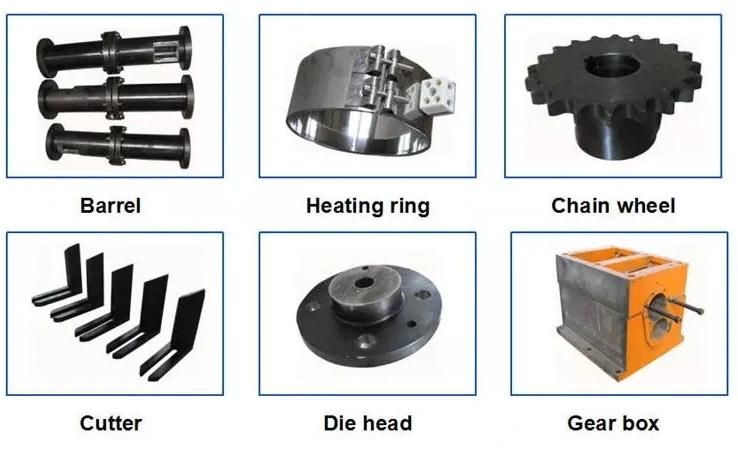

2.4 Some fittings

2.5 Company Information

    Jinan Datong  Machinery Company is founded in 2012. For supplying best service, technology department, Sales department, producing department , after- sales department are always available for you. Sales department includes two international sales department and two domestic sales department.

Our machines have been exported to many countries of Asia, America, Africa, Europe etc. Machines are welcome in the countries. So until now, there are not only direct customers, but also some long term cooperation agents. Such as Indonesia agent, Iran agent, Nigeria agent and so on.

we have obtained ISO9001 and CE certifications, believe me, you can trust us. If you want to get more details about our machines, please do not hesitate to contact us.
