• Model NO.：Huatai 10-500T,D
• Oil Yield：High
• Oil Color：Transparent
• Staff Training：Free
• Warrantity Period：12 Mouths
• Oil Grade：1, 2, 3, 4, Grade According to Your Need
• Sevice：Full Service
• Patent：Yes
• Transport Package：Nude Packing
• Specification：According to different specifications
• Trademark：Huatai
• Origin：Henan China
• HS Code：847920000
• Production Capacity：20 Set,Mouth

Crude oil acid value<33-55-77-0>10Alkali concentration1011121416
3) production process
a. Ignite thermal oil furnace,control thermal oil temperature at 98ºC,turn on the vacuum pump for preparation;
b. Pump crude oil into the refining pot, control oil temperature at 20-30ºC,after determine the acid value in general laboratory, adopt low-alkali concentrated alkali method or high temperature and light alkali method for alkali refining.
c. After releasing soap particles, oil heats up to 90ºC, Then add hot water for washing and stirring. Water temperature should be 5-10ºC higher than oil temperature, emulsify will happen if water temperature is too low. After adding water, continue stirring for 5 minutes, then settle for about 4 hours, release soap water, repeat washing for 2-3 times according to the quality of cleaned oil. Washed oil can be directly feed in decolorization pot for vacuum drying, slowly increase the temperature to 105ºC, stirring and dehydration for 1 hour, drying should finish when no condensation can be seen on sight glass.
d. After drying, cool the oil to 90ºC in the decolorization pan, vacuum clay (2-4% oil weight) in a decolorization pot. Stir for 30 minutes and cool to 70°C, pressed the mixture into the filter by decolorization oil pump for oil and clay separation to get decolorized oil.
e. Vacuum decolorized oil into deodorization pump, vapor deodorization starts when the vacuum reaches 755mmHg or more
f. After deodorization, cooled to 40-80ºC, press oil from deodorization pot to cooler by air compressor, to 30-40ºC. Pack after sample test.
4). Main parameterTPDPower consumption (kw/hour)coal
(Kg/ day)AlkaliClay
%Water consumptionweight
(ton)Size
L×W×H1260slight2-5slight56.5×1.5×4.223100slight slight6.57.8×1.8×4.233180slight2-5slight88.2×2×4.2
5). Remark
1. After changing heat transfer oil,the heat-conducting oil furnace must be kept at a temperature of about 90°C for more than 5 hours.
2. The use of heat energy must be reasonably distributed, when deodorizing, it must be ensured that the deodorant oil temperature is 240-260°C,other equipment mainly rely on valve adjustment.
3. After inspection and repair, graphite shim must be used for the heat-conducting line gaskets, and the valve must use high-temperature valves..
4. Before starting the heat-conducting oil furnace, the heat-conducting oil pump must be started,and the heat transfer oil pump must continue to run after the thermal oil furnace ceases. The heat transfer oil pump is not allowed to turn off until the temperature of the heat transfer oil drops below 100°C.
5. Ignition without heat-conducting oil are not allowed.
6. Ignition when heat transfer oil pump it is not running.






 Who we are?Cereals & oils turnkey project - HUATAI What we do?Cereals & oils turnkey project - HUATAI

  Main ProductsCereals & oils turnkey project - HUATAI


Main Products
Huatai machinery has developed projects including large scale oilseed pretreatment and pressing, oil extraction, oil refining and oil fractionation production line project,conveyor equipment project,corn/maize flour, grits, germ milling machines and corn processing lines,biodiesel technology,cottonseed, rice bran and soybean protein technology, and Palm Oil processing lines,etc.
 Edible Oil Processing EquipmentMachinePretreatment Equipment, Extraction Machine, Refinery MachineSoybeanPalm FruitCoconutCorn GermRice BranSunflowerCotton SeedRapeseedOther edible oil seed: Peanut, Sesame, Castor, Pepper, Lemon, GrapeseedBiodiesel Oil Processing EquipmentAnimal fatWaste vegetable oilSeaweedOther Biodiesel OilEssential Oil & Cosmetics oil Processing EquipmentAvocado oilMoringa oilAlmond oilOther Essential OilCereals Milling MachineMaize Milling MachineWheat Milling MachineOther Cereals Milling MachineProtein Treatment Machine/EngineeringCotton seed proteinSoy protein isolate/ concentrateOther protein TreatmentAnimal Feed MachineChicken Feed, Cattle feed, Goat & sheep feed, Pig feed, Aquafeed and other animal feedFeed Milling MachineFeed mixerFeed pellet machine




 Why choose us?Cereals & oils turnkey project - HUATAI


Six reasons why you should choose Huatai.

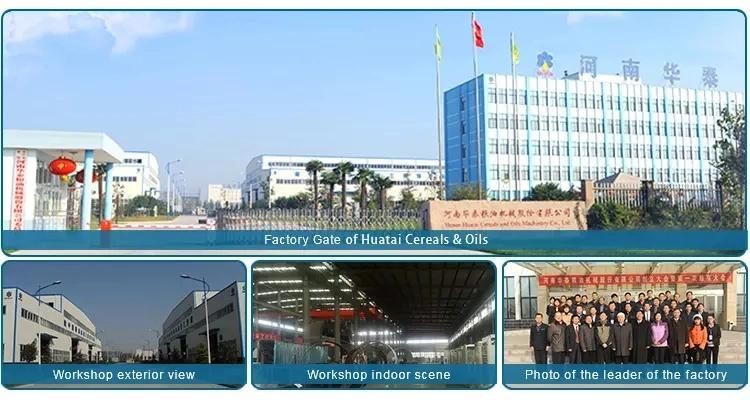

1. Strenth Factory, speciallized in grains & oils for over 60 years
One of the most largest Cooking oils factory in China;
More than 100,000 square meters;
Over 580 professional employees;
8 Large-scale workshop, 120 production equipments;
Over 60 years experience in Grain & Oil industry;

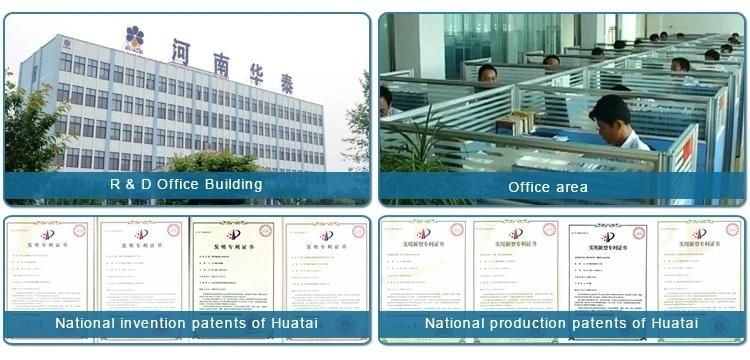

2. Research and Development Center
27 national patents technical, have many published books;
High-tech enterprise Certificate of Henan Province;
Complete equipment major production enterprises in China;
Provide specific solutions to meet different requirements;

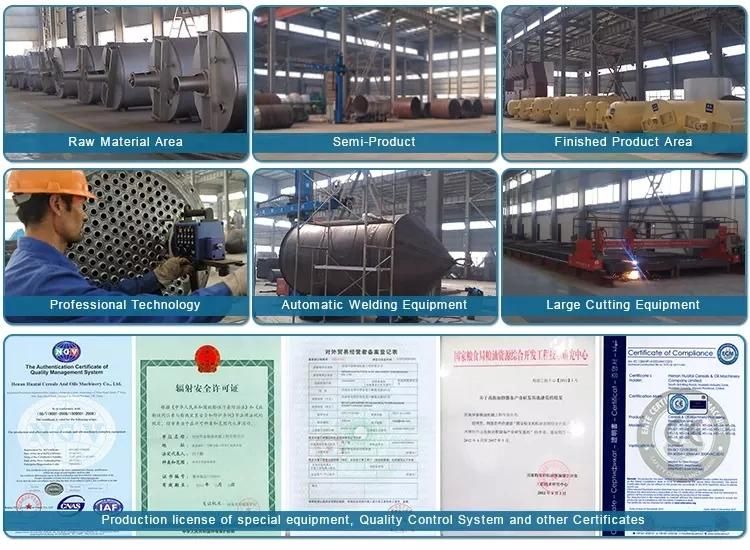

3. Strict quality control system
Stricted quality control, have passed ISO 9001, CE, CNAS;
With high level automation and higher productivity;
Have Special Equipment Manufacturing License;
Have many advanced quality testing auxiliary equipment;
Long service life and lower maintenance cost;


4. Dozens of certificates and honors
Won Gold Award of China Invention Exposition;
Excellent member of China Grain & Oil Association;
Won the Provincial trustworthy unit for many years;
China Top 10 Food and Oil Machinery Brand;



5. Rich experience of large overseas projects
Hundreds of successful overseas projects;
Rich experience in government bidding projects;
Products are exported to all over the world;
Large project experience, can undertake 3,000t/d projects;


6. Thoughtful & Considerate after-sale Service
Overseas Installation Services & Staff Training;
On-site technical service;
Large warehouse, stable supply of spare parts;
Stable and standardized after-sales service team;
