Ice Cream Maker Machine
Ningbo Sicen Refrigeration Equipment Co., Ltd.- Certification：CE, UL, ISO9001
- Power Source：Electric
- Process：Frozen and Chilled
- Automatic Grade：Automatic
- Application：Ice Cream, Frozen Yogurt
- Customized：Non-Customized
Base Info
- Model NO.：6240A
- Model：6240A
- Transport Package：Carton with Pallet
- Specification：CE
- Trademark：SPACE
- Origin：Ningbo, China
- HS Code：8418699020
- Production Capacity：10000 Units,Month
Description
(NET)
(PACKING)
Offer
Offer all popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet.
Feature:
1. Floor model
2. Air cooling
3. Twin flavour+one mix
4. Air pump freezer---Gear pumps ensure a high overrun ice cream
5. Stainless Steel Panels
6. LED disaply automatic control
7. Automatic control
Freezing cylinder
Two, 1.8 Liter
Mix hopper
Two, 12.5 Liter
Separate hopper refrigeration(Pre-cooling)maintains mix below 4.4 ºC.
Microprocessor controls
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.
Mix low light
The mix low light turns"on" to alert operator to add mix, preventing cylinder over freezing.
Standby
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4 ºC during long no-use periods.
Counter
Records number of dispenses per day and total number of dispenses.
Agitator in the hopper
Mixture has better liquidity, the temperature of the Mix to be more uniform.
Output
40 Liter/Hour(At 4 ºC liquid &24 ºC Ambient)
Electrical requirements
One dedicated electrical connection is required.
Make voltage steady when machine is ON.
Main motor
One, 1.5HP
Refrigeration system
One compressors: 5039 BTU/hr. R404A
Separate hopper refrigeration(pre-cooling): One compressor: 400BTU/hr. R134A
(BTU may vary depending on compressor used. )
Air cooled
Minimum clearance of 152 mm on both sides is to achieve optimum performance.
Refer to the local situation to regulate the parameters, on basic of the data label. Specificaitons of the improvements are subjuct to change without notice.
Options
Local specific plugs of power supply wire
Cup cone dispenser
Power supply:208-230V/60HZ

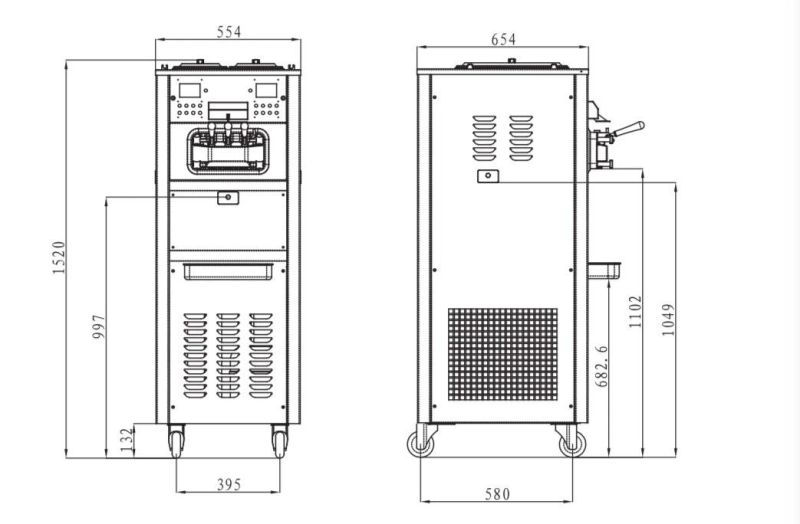

The contour dimensional drawing
