• Model NO.：BCE04
• Transport Package：Wooden Case
• Origin：China

Basic Info.

Model NO. BCE04 Transport Package Wooden Case Origin China

Product Description

Product Description

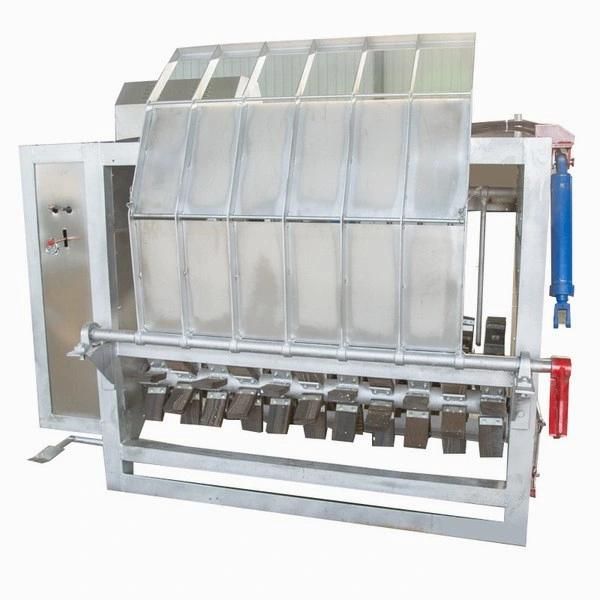

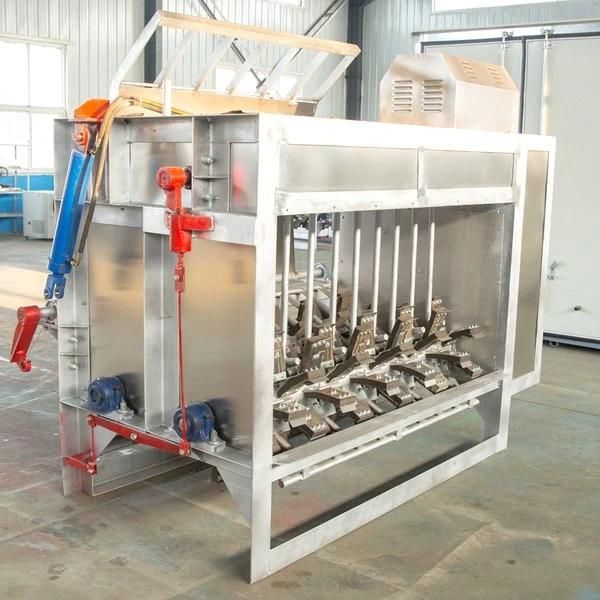

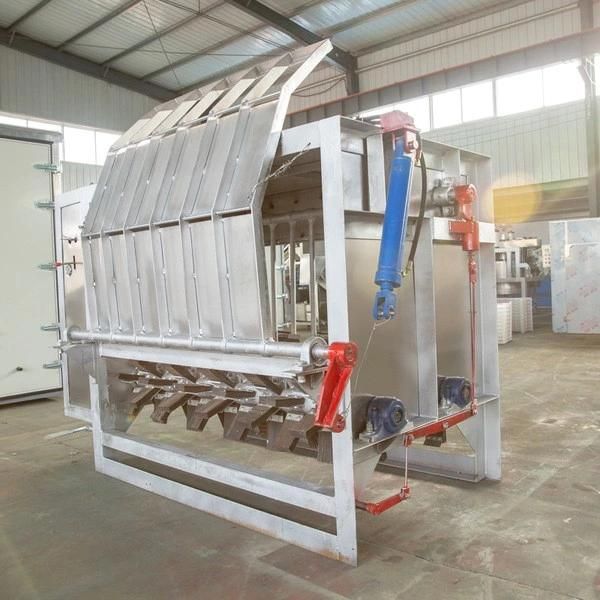

The machine is matched slaughtering equipment for middle and large slaughter plants,mainly used to dehairing after the pig body is slaughtered and scalded. It has a large space, can enter the different size of the pig body, hair pig into the dehairing machine and sliding out after dehaired.it is controlled by the rod and pedal and dehairing time by the artificial control, therefore, this machine can be applied to different regions and different types of pigs.


Model	BCE04-1	BCE04-02
Voltage	380v	380v
Productivity	70-100pcs/h	150-200pcs/h
Dehairing time	30-40s/time	30-40s/time
Max bear weight	150kg max	300kgmax (1-2pcs/time)
Big roller Speed	217r/min	120r/min
Small roller speed	85r/min	60r/min
Motor power	5.5kw	7.5kw
Weight	1500kg	1800kg
Machine size	2700*1600*2000mm	2700*1600*2000mm

Detailed Images




1. This pig dehairing machine suitable for 100~160kg pig , One time can work for one or two pcs pig ,it's necessary equipment for slaughter factory production.
2. Automatic temperature control, the heating power step is adjustable.
3. The machine can put in for whole pig
 100 model can feed in 1 pcs pig in one time.
 200/300 model can feed in 2 pcs pig in one time.
400 model can feed in 2-3 pcs pig in one time.
500 Model can work for sows weight more than 200kg
Customized model for piggery less than 30kg
4: Dehairing rate >95% , suitable for whole slaughter line .
5. Before feeding in the dehairing machine , Pig need to be soaked in hot water(60-65ºC) for about 3min .
6. Driven method:
  Mechanical type: 100model, 200model,300model
Hydraulic type: 200model,300model,400model,500model
7. Materials: Hot galvanized steel or stainless steel.

Packing & Delivery
