• Model NO.：2+1
• Customized：Customized
• Touch Screen：Siemens Brand
• Belt：PU
• Material：304 Stainless Steel
• Photocell Switch：Omron Brand
• Motor：Chinese Famous Brand
• AC Contactors：Chinese Quality Brand
• Function：Filling, Stacking, Conveying Sealing, Wrapping, PAC
• Electric Parts：Ormon or Schneider
• PLC&Touched Screen：Delta or Siemens Brand
• Capacity：1300psc,Min
• Transport Package：Plywood Boxes
• Specification：1200kg
• Trademark：Skywin
• Origin：Guangdong
• HS Code：8438100090
• Production Capacity：20 Sets Per Year

biscuit size

Square

Rectangle

Square

L(35-70)x W(30-60)x H(3-8)mm

L (35-80) x W(40-65)mm

L (20-35) xW(20-35)xH( 3-7)mm

Round

Round

Round

Φ35-70mm

 thickness:3-8mm

Φ35-Φ65mm

thickness:4-8mm

Φ20-35 mm,

thickness:4-7mm

Capacity

100-600

sandwiches/min

600-1200

sandwiches/min

100-400

sandwiches/min

operating voltage

single-phase AC 220V 50Hz

single-phase AC 220V 50Hz

single-phase AC 220V 50Hz

machine size

7000x1900x1470mm

7430x3300x1500mm

4980x1340x1120mm

Weight(Cream tanks

capacity )

 1120kgs (40L) 1350kgs (50L) 1000kgs (36L)

total power

4Kw

4Kw

3.8Kw

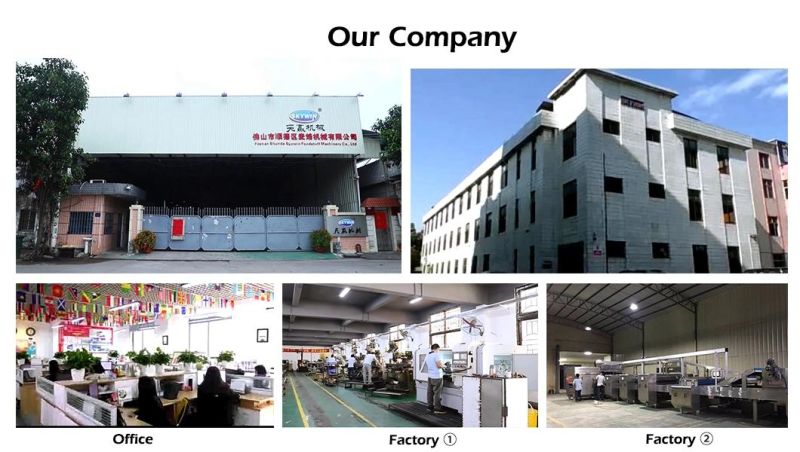

  Skywin Foodstuff Machinery Co., Ltd established in 2000, and it is a manufacturer which specialized in the fully automatic high quality Biscuit Production Line.
   We provide One-stop solution and service from biscuit production to biscuit sandwiching, biscuit chocolate enrobing and biscuit packing,also we have resolved the biscuit sandwiching machines automatic connect the packaging machines and biscuit line to connect packaging machines, all operation is full automatic PLC controlled.We will supply professional consulting services for machines used within the industry of biscuit production, as well as the most suitable design proposals and qualified machines.











 All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.


Packing&Delivery:
Our regular packaging is multilayer packing, safe transport, shipping by sea:
Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).

FAQ
Q1: Which kind of biscuit you can produce for your biscuit line?
A. Hard and Soft biscuit, Soda Cracker, Cookies, also Stick biscuit, Print biscuit and Chocolate filling biscuit, different shape biscuit just need to change the mould, we also can design mould for you as per your details.
Q2. What kind of oven you supply?
A. We can supply gas oven or electrical oven according to your requirement.
Q3. How long is your biscuit line?
A. we can design the biscuit line according to the layout of your workshop.
Q4. Which brand of motor you use for the line?
A. we can supply European motor reducer(SEW) or Chinese famous motor for your options.
Q5. Are you manufacturer?
A. Yes, we are a biscuit machine manufacturer in China.
Q6. How is the payment?
A. We accept 40% T/T deposit before production and 60% T/T balance before shipment,and Western Union or L/C.

Pictures and videos are for reference only.
