• Model NO.：BR0.2-1.0-7-E
• Heat Exchanger：Milk Chiller
• Plate Material：Ss304,Ss304L,Ss316,Ss316L,Ti,Hc,Smo254,Ni and etc.
• Gasket Material：EPDM,NBR,HNBR,F,Q
• Plate Thickness：0.4~0.8mm
• Transport Package：Wooden Packaging
• Specification：ISO9001: 2008, SGS
• Trademark：JIEMA, OEM
• Origin：Guangzhou China
• HS Code：8419500090
• Production Capacity：500 PCS , Month

Basic Info.

Model NO. BR0.2-1.0-7-E Heat Exchanger Milk Chiller Plate Material Ss304,Ss304L,Ss316,Ss316L,Ti,Hc,Smo254,Ni and etc. Gasket Material EPDM,NBR,HNBR,F,Q Plate Thickness 0.4~0.8mm Transport Package Wooden Packaging Specification ISO9001: 2008, SGS Trademark JIEMA, OEM Origin Guangzhou China HS Code 8419500090 Production Capacity 500 PCS / Month

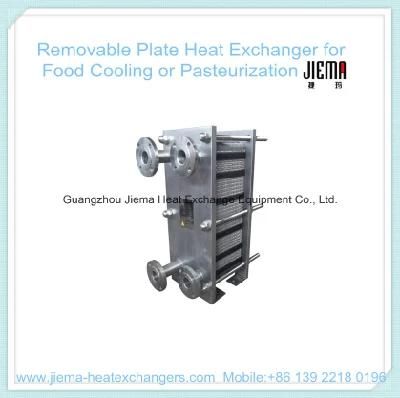

Product Description

Plate Heat Exchanger Advantages:

(1) High Heat Transfer Coefficients

(2) Saving the installation space(3) Low contamination(4) Minimum heat loss(5) Applicability & standardization(6) Food grade material insure good quality

 Standard Component Materials:

 Frame plate:Carbon steel, or packing stainless 304 or 316L.
 Nozzles:carbon steel,stainless steel or titanium.
 Plates:Stainless steel 304 or 316L,Hastelloy Alloy ,Titanium , Nickel, SMO254 etc.
 Gasket:NBR,H-NBR,EPDM,Virton,other grades and material available on request.
 Clamping bolt: Galvanized carbon steel, stainless steel.
 Carrying bar:Galvanized carbon steel, stainless steel.


Material Description	Code	Applicable Temperature (ºC)	Anti-corrosive Performance and Applicable Occasions
NBR	N	-20~110	Hot air, water, non-polar oil, mineral oil, lubricant and silicone oil, etc.
EPDM	E	-50~150	Vapor, polar chemical medium, alcohol, weak acid, weak alkali and oxidizing agent, etc.
F	C	-40~100	Ammonia, mineral oil and lubricant, etc.
Virton	F	0~180	Inorganic acid, alkali, mineral oil and Haloalkane, etc.
Silicon Rubber	Q	-65~230	Resistant to cold current and dry hot

Applications:

Foods	Milk, juice, sugar solution, soy and sesame oil, liquor, beer, heating, sterilization/cooling for edible oil, etc., heat recovery, and CI P liquid heating
Chemical	Petroleum, paraffin, various acids, sulfuric acid, kerosene, salt sulfate, zinc, nucleic acid, polymerization process, soft water cooling, heating for glycerine, etc., condensing ethanol, etc.
Textile	Washing water, NaOH solution, dyeing water cooling and waste heat recovery
Electric & electronic	Circulating water, flushing coolant, transmission oil cooling, rectifier transformer, SCR cooling, high frequency heat treatment cooling, pure water treatment, electron tube cooling and blackening furnace cooling
Mechanical facility	Machineries cooling, emulsion, hydraulic oil, abrasive liquids cooling, compressor, industrial furnace cooling, transmission oil, autoclave water cooling and engine cooling
Ship-building	Central Cooling, Lub Oil, Jaket, Piston Water, Heavy Oil, Transmission Oil cooling, Diesel Oil, Heating Oil preheating
Steel Iron	Mould cooling, cooling for continuous casting process, furnace, coking plant cooling, emulsion, ammonia water cooling, machineries, compressor cooling, washing oil cooling, hydraulic oil cooling, heat recovery for washing water and other waste heat recovery processing
Surface treatment	Sulfate cooling, phosphate, heating/cooling for pretreatment process liquid of coating, heat treatment liquid cooling, galvanizing and chrome coating
Extraction process	Crude Alcohol, Soy Bean Oil, Cooling for fatty acid, etc. and heating for coconut oil, edible oil, etc.
Pharmacy	Cooling, heating and concentrating for extracting solutions, cream, sugar solution, emulsion, suspension, plasma, citric acid, etc.
Paper pulp	Washing water, chlorine water cooling and waste heat recovery
Building equipments	Heating, heating for hot water supply, heating and cooling for HVAC, etc., condenser, evaporator, heat pump cooling, hydraulic oil cooling and waste heat recovery
Automobile	Cooling for heat treatment solution and cutting fluid, heating for pretreatment of coating and paint cooling for spray booth (Phosphatizing sol. cooling)
Fish tank	Fish tank sea water heating, waste heat recovery, incubator and fish farm
Plant	Ice thermal storage system, district heating plant, nuclear power plant and swimming pool

Plate Heat Exchanger Application for  Heating, Cooling and Pasteurization:

Mainly Customers:



For More Plate Heat Exchanger Information,Please Contact Us Immediately,thanks!

Web:jm-heat-exchanger.en.made-in-china.com
Tel:+86-20-82249117
 Fax:+86-20-82031613
 Mobile:+86 139 2218 0196
Contact:Carrie
