• Model NO.：GY
• Turn-Key Project：Automation
• Material：Stainless Steel
• Capacity：as Customer Request
• Warranty：2 Years
• Brand：Genyond
• Transport Package：Wooden Packing
• Specification：as customer capacity
• Trademark：GENYOND
• Origin：China
• HS Code：84342000
• Production Capacity：800 Sets Per Year

Basic Info.

Model NO. GY Turn-Key Project Automation Material Stainless Steel Capacity as Customer Request Warranty 2 Years Brand Genyond Transport Package Wooden Packing Specification as customer capacity Trademark GENYOND Origin China HS Code 84342000 Production Capacity 800 Sets Per Year

Product Description

Brief introduction:
This production line can finish raw material mixing, disinfection, even quality, cooling, aging, ,congealment, filling and hardening.
This production line is the automatic model, which can finish automatically from feeding to finished product
Electrical equipment art controlled in a centralized way, which doesn't need steam boiler and other coolingequipment
This production line can produce kinds of ice cream, such as cup ice cream,egg-tray ice cream,stick ice cream,chocolate coated ice cream,kernel ice cream and ice sucker, etc, by only
changing the filling equipment.

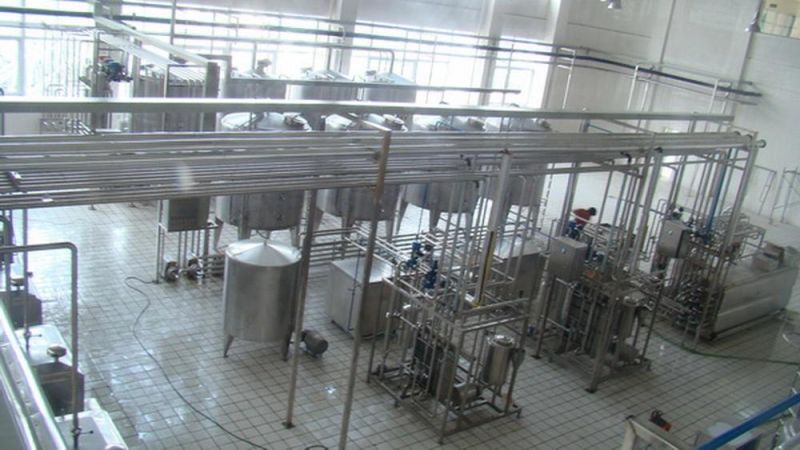

The whole ice cream production line consists of the following units:
1. Water Treatment system
2. Mixing and Sugar Melting tank
3. Pasteurizer and Homogenizer
4. Aging tanks
5.Freezer and Filling Unit
6. CIP Cleaning System
7. After Treatment Equipment, like conveyor, package or pallet, etc.
8. There are other assistant equipments used such as steam boilers, air compressor, cold water unit, etc.
9. Installation materials for the process pipeline, utility pipelines as well as electrical system are provided.
 Specifications

1. Features: compact structure, small land area, High heat recovery, good effect of energy-saving and consumption reduction as well as simple operation.
2. Capacity: 500-10000L/H
3. Sterilization temperature: 85-95ºC
4. Temperature of product outlet: 6-10ºC
5. Control mode: manual, semi-auto, automatic (PLC controller, touch screen display).
6. Our company can design the production lines in accordance to the customers' requirements.
7. Filling types can be decided by the customer then designed accordingly.

Process:

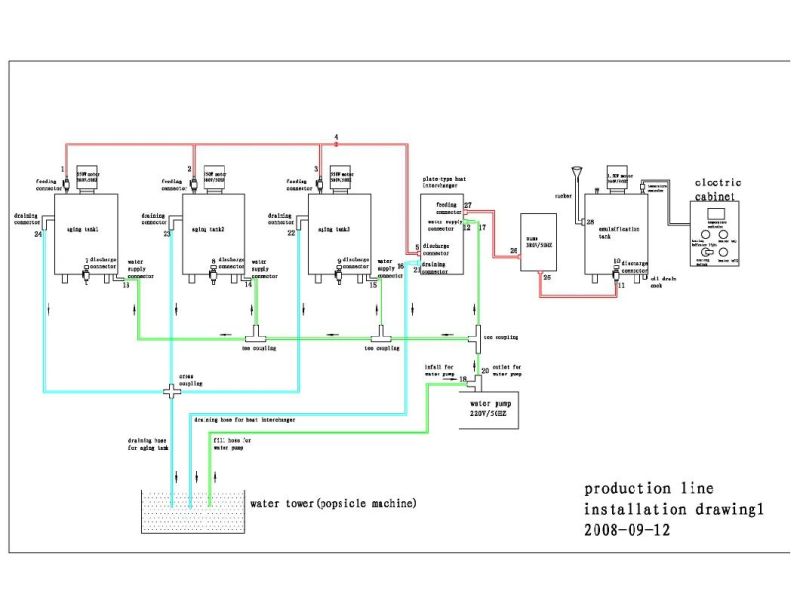

Mixing, disinfection, viscolizer machine------plate heat exchanger-----aging barrel-----cooling machine group------congealment machine-------automatic filling machine

Technical data:

Model	Capacity	Water consumption	Expansibility	refrigerating  fluid	Power	Voltage	dimension MM
GGBQL-500	500kg/h	6t vadose water	90-100%	R-22	27KW	380V 50Hz	9200*3500*1500
GGBQL-1000	1000kg/h	6t vadose water	90-100%	R-22	46KW	380V 50Hz	12000*3200*1800


Feature:
Complete in Set: Electrical equipment art controlled in a centralized way, no need to have steam boiler
and other cooling equipment.

Rich in Varieties: The production line can realize the changes of many varieties only by replacing its
feeding head. It can produce cup ice cream, egg-tray ice cream, stick ice cream, chocolate-coated ice cream,kernel ice cream and ice sucker.

Perfect in Service: We can install, adjust and test our equipment, train personnel, provide technology and prescriptions, all free of charge, until qualified products are made so as to ensure your investment is
 perfectly safe.

Formulation:
The ingredients used in ice cream production are: fat;milk solids-non-fat (MSNF);sugar/non-sugar sweetener;emulsifiers/stabilisers;flavouring agents;colouring agents.
-Weighing, measuring and mixing:
Generally speaking, all dry ingredients are weighed, whereas liquid ingredients can be either weighed or proportioned by volumetric meters.
-Homogenisation and pasteurisation:
The ice cream mix flows through a filter to a balance tank and is pumped from there to a plate heat exchanger where it is preheated to 73 - 75deg for homogenisation at 140 - 200 bar, the mix is pasteurised at 83 - 85deg for about 15 seconds then cooled down to 5deg and transferred to an ageing tank.
-Ageing:
The mix must be aged for at least 4 hours at a temperature between 2 to 5degc with continuous gentle agitation. Ageing allows time for the stabiliser to take effect and the fat to crystallise.
-Continuous freezing:
to whip a controlled amount of air into the mix;
to freeze the water content in the mix to a large number of small ice crystals.
-Filling in cups, cones and containers;

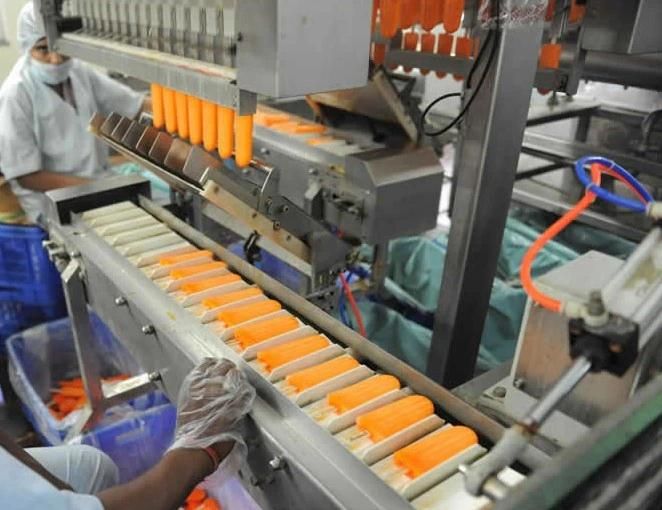

-Extrusion of sticks and stickless products;
-Moulding of bars
-Wrapping and packaging
-Hardening and cold storage
