• Model NO.：HDFM
• Condition：New
• Customized：Maize
• Warranty Time：Two Year
• Installation Form：Steel Frame Construction
• Noise：Less Than 85 Db
• Dust：Less Than 10mg,M3
• Pipe：Stainless Steel
• Spare Parts：Yes
• Control System：PLC
• After Sale Service：Engineer Overseas
• Production：30 Set Per Year
• Pack：Suitable for Sea Transportation
• Transport Package：Plastic Film, Transported in Container20′or 40′
• Specification：GB1355-88
• Trademark：hongdefa
• Origin：Hebei China
• HS Code：84370000
• Production Capacity：More Than 200 Sets,Year

Basic Info.

Model NO. HDFM Condition New Customized Maize Warranty Time Two Year Installation Form Steel Frame Construction Noise Less Than 85 Db Dust Less Than 10mg/M3 Pipe Stainless Steel Spare Parts Yes Control System PLC After Sale Service Engineer Overseas Production 30 Set Per Year Pack Suitable for Sea Transportation Transport Package Plastic Film, Transported in Container20′or 40′ Specification GB1355-88 Trademark hongdefa Origin Hebei China HS Code 84370000 Production Capacity More Than 200 Sets/Year

Product Description

Zambia Market Maize Mill Making Machine
Shijiazhuang Hongdefa Machinery Co.,LTd is a professional manufacture of wheat flour mill and maize mill,we provide high quality machine from 500kg/h to 50ton/h with different design according to our client needs,with European technology,South Africa maize process, China wheat process, roll out unique and innovative wheat flour mill and maize mill plant.
The head office of Shijiazhuang Hongdefa Machinery Co.,Ltd is located 4hours driving from Beijing,where we have approximately 100employees, a manufacturing facility of 30000square meters and 500 square meters of office space.
The core technologies of our group are in the filed of wheat flour mill and maize mill process engineering, with European technology, South Africa maize process, China wheat process, roll out unique and
innovative wheat flour and maize meal processing line

           High Standard Quality maize mill machine
           Advance roller stands
           Screw air compressor
           Stainless steel pipe where contact with the material

1. Maize mill machine includes clean mill and pack Can produce fine maize flour and grits
2. Maize mill machine can be uesed for processing ugali, posho, Fufu, grits etc.
3. High extraction rate
4. Good quality
5. Material: Steel

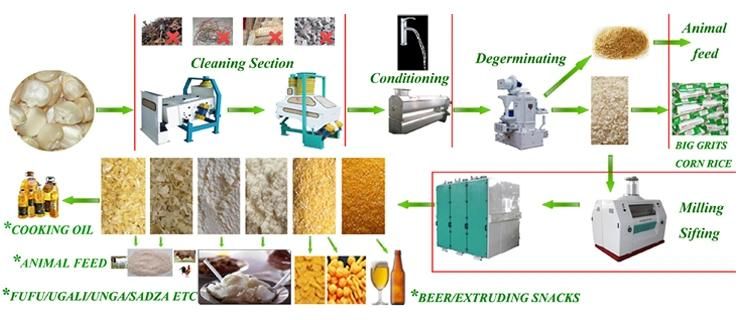

Techniques flow Grits: Raw maize →Cleaning →Moisture adjust →Peel and break →Embryo Select →Milling →Finished product
Cleaning flow: Raw maize →High efficiency vibrate sifter →Magnetic separator →Horizontal Scourer →Gravity classification stoner→ Clean maize
We have export our product to many countries, like Argentina (100t/24h) , Brazil(200t/24) ,South Africa (1500t/24h), Zimbabwe (120t/24h, 50t/24h, 30t/24h) , RD Congo (20t/24h) ,Zambia (30tons/24h,50t/24h ,100tons/24h,150tons/24h),Benin (150t/24h), Kenya (150t/24h, 50t/24h.)

Type	Capacity	Flour extraction	power	Workshop	Container(ft)
6FYDT-5T	5t/24h	Fine flour 75-85%	15kw	10m/5m/5m	20*1
6FYDT-10T	10t/24h	Fine flour 75-85%	23kw	10m/5m/5m	20*1
6FYDT-12T	12t/24h	Fine flour 75-85%	55kw	16m/6m/5m	40*1
6FYDT-15T	15t/24h	Fine flour 75-85%	80kw	18m/5m/5m	40*2
6FYDT-25T	25t/24h	Fine flour 75-85%	95kw	18m/5m/5m	40*2
6FYDT-30T	30t/24h	Fine flour 75-85%	95kw	26m/8m/5m	40*2
6FYDT-50T	50t/24h	Fine flour 75-85%	135kw	27m/9m/7.5m	40*2
6FYDT-100T	100t/24h	Fine flour 75-85%	240kw	30m/9m/10m	20*1 40*4

6FYDT-120T	120t/24h	Small grain35-40% flour40-45%	240kw	30m/9m/10m	40*4
6FYDT-150T	150t/24h	Small grain35-40% flour40-45%	300kw
6FYDT-300T	300t/24h	Small grain35-40% flour40-45%	560kw

Capacity	Countries	Year
20tons/24h maize flour mill	Zimbabwe	2009
	RD Congo	2010
	Cameroon	2010
	Zambia	2010
	Zambia	2011
	RD Congo	2011
	Uganda	2011
	Angola	2011
50tons/24h maize flour mill	Malawi	2009
	Kenya	2010
	Zimbabwe	2010
	RD Congo	2010
	Argentina	2010
	Venezuela	2010
	Zambia	2010
	Uganda	2011
100tons/24h maize flour mill	South Africa	2010
	Venezuela	2010
150ton/24h maize flour mill	Kenya	2014
	Zambia	2014
500ton/24h maize flour mill	South Africa	2014

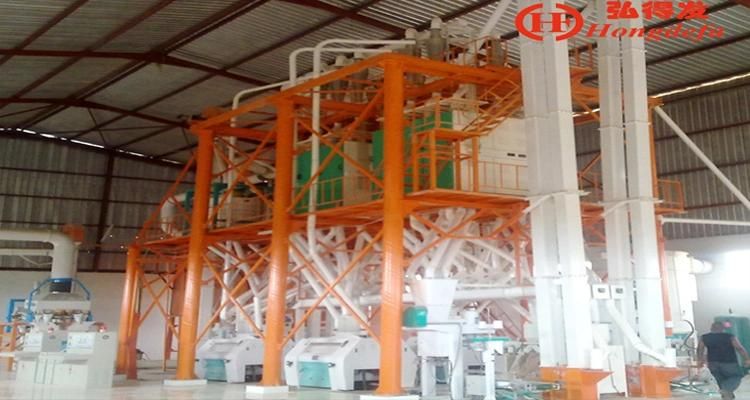

150t/24h maize mill making machine machine running in Zambia.
FAQ
Q: Which kind flour mill you can processed ? And the output ?
A: we can offer corn/maize mill with the capacity 5T/24H ------500T/24H .
Q: what is the basic processing step?
A: Full automatic line : Cleaning the raw material------Milling the material into flour--------Packing the flour into bags.
Q:Which kind of maize we can use in the processing line ?
A: Yellow corn/maize, White corn/maize
Q :Which kind final products we can get from the maize / corn flour mill ?
A: maize flour, maize grits (meal),maize germ, bran and animal fodder.

Contact details:
Ms Grace
Shijiazhuang HONGDEFA machinery Co.ltd
No.388 jianhua north street,Shijiazhuang,China
Website:sjzafricachina.en.made-in-china.com
Mob:0086-15175126486

If you need more technical information and exactly price,please contact with us freely.Our professional technique team will give you the best service.Thanks!
