• Model NO.：5TD-135
• Condition：New
• Customized：Customized
• Usage：Paddy Wheat Soybeans Threshing
• Weight：750kg
• Production Capacity：2500-3000kg,H, 400 Unit,Units Per Month
• Model Number：5td-135
• Certification：ISO TUV
• Warranty：1 Year
• Impurity Rate：Less Than12.0 %
• Drum Rotary Speed：1000rpm
• Total Loss Rate：Wheat Less Than 1.5% Rice Less Than 3.0%
• Power：13-15kw
• Transport Package：Carton
• Specification：2400*2670*1530mm
• Trademark：ACME
• Origin：China

Basic Info.

Model NO. 5TD-135 Condition New Customized Customized Usage Paddy Wheat Soybeans Threshing Weight 750kg Production Capacity 2500-3000kg/H, 400 Unit/Units Per Month Model Number 5td-135 Certification ISO TUV Warranty 1 Year Impurity Rate Less Than12.0 % Drum Rotary Speed 1000rpm Total Loss Rate Wheat Less Than 1.5% Rice Less Than 3.0% Power 13-15kw Transport Package Carton Specification 2400*2670*1530mm Trademark ACME Origin China

Product Description

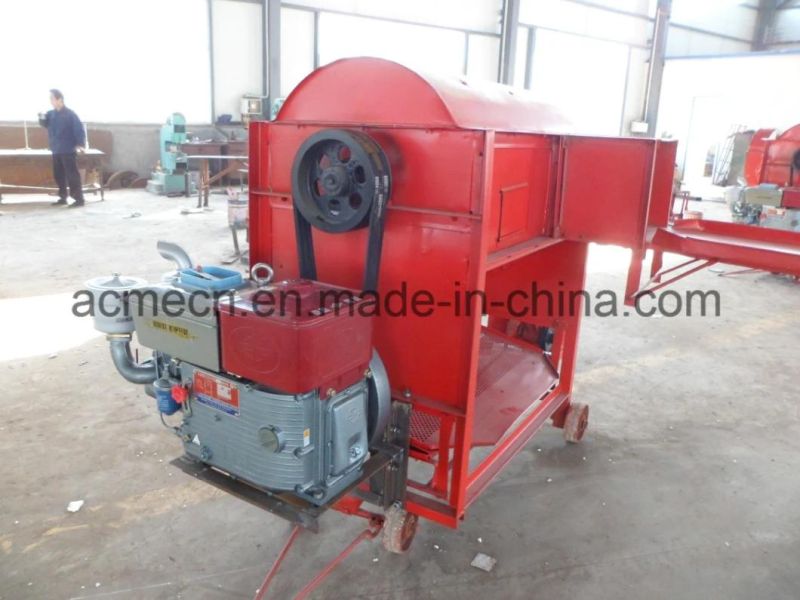

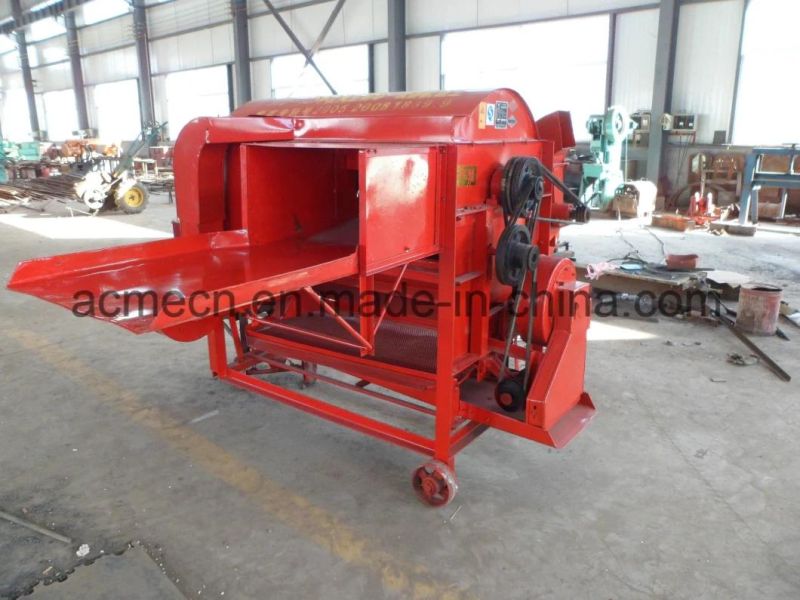

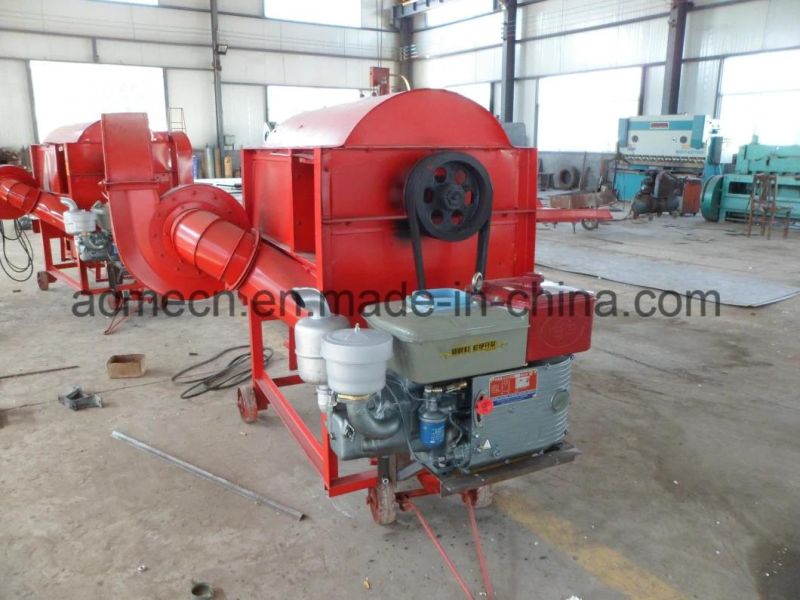

High Capacity Multi Crop Thresher

Machine Application
It is main used for threshing of various crops like rice, wheat, corn, soybean, barley, sorghum and millet etc..

Structure
The thresher consists of feeder hopper, roller, screen mesh and main frame etc..

Operation Principle
When the machine in operation, firstly put the crops into machine from feeder, and the crops will be rubbed, squeezed, collided and shaken by assembly of rack and screen mesh, then to make the grain separated from culm, then flowing out from the screen mesh. Finally, the culm will be thrown out by centrifugation of roller, and threshing is finished .

Main Advantages
It owns such advantages like compact structure, easy operation, easy maintenance and high efficiency etc

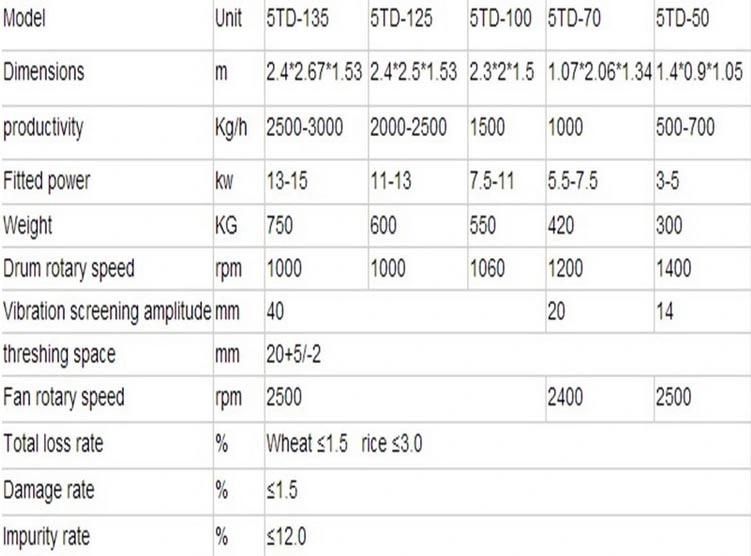

Specification
