• Model NO.：WSP
• Capacity：80-600kg H
• Key Word 1：Pet Food Machine
• Key Word 2：Fish Feed Machine
• Key Word 3：Fish Feed Making Machine
• Finished Products：Fish Feed, Cat Food, Dog Food, Bird Feed
• Transport Package：Wooden Cases
• Specification：ce co ccc
• Trademark：WS
• Origin：Henan
• HS Code：8474802000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. WSP Capacity 80-600kgH Key Word 1 Pet Food Machine Key Word 2 Fish Feed Machine Key Word 3 Fish Feed Making Machine Finished Products Fish Feed, Cat Food, Dog Food, Bird Feed Transport Package Wooden Cases Specification ce co ccc Trademark WS Origin Henan HS Code 8474802000 Production Capacity 30 Sets Per Month

Product Description

Dry Wet Type Poultry Fish Feed Pellet Granulator Granulating Machine

Product Description


Application of floating fish feed extruder
1. Aquatic feed pellet for fish, catfish, tilapia, tilapia fish, shrimp, crab, etc. Both floating and sinking feed pellets. The floating time can be adjusted by the different puffing degree.Main use:

• 2. Pet food pellet for pets like cat, dog, pet bird,
• 3. Other animals feed pellet, like frog, fox, rabbit, etc.
• 4. Poultry animals feed pellet, like chicken food, goose feed, sheep feed, etc.

Raw material of floating fish feed extruder
Wheat meal, maize powder, soybean meal, cottonseed meal, fish meal, bone meal, corn meal, meat meal, etc.
Moisture of raw material:20%-25%
Oil content: ≤10%
Starch content: ≥30%
Raw material type: powder



Festures of pellets made by this floating fish feed extruder
1. The diameter of finished fish feed pellet size(1-12mm) can be adjusted by changing different molds
 2. The shape of pet food pellets can also be changed by different molds.

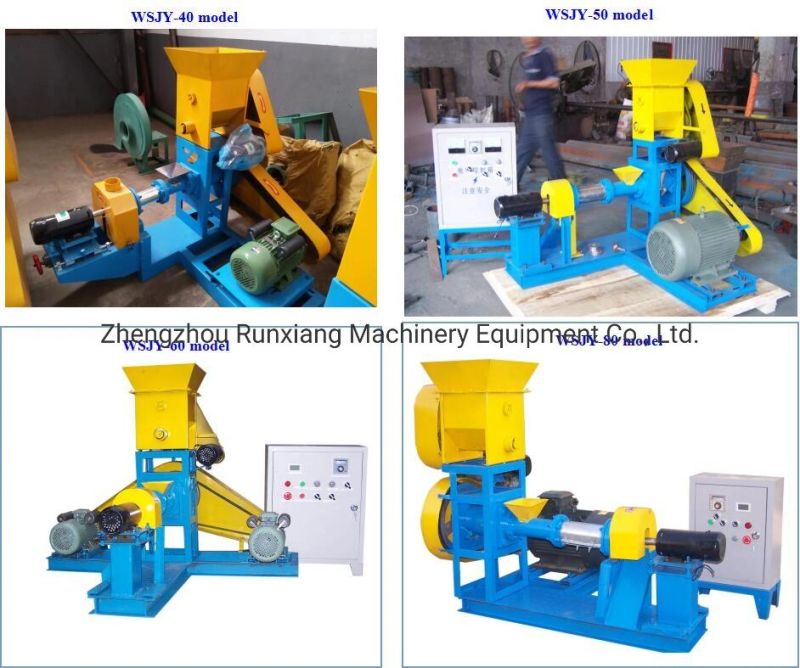

Specification of floating fish feed extruder


Model	Capacity(kg/h)	Motor power(kw)	Feed power(kw)	Screw Dia(mm)	Cutting power(kw)
WSJY-60	120-150	15	0.4	60	0.4
WSJY-70	180-250	18.5	0.4	70	0.4
WSJY-80	300-350	22	0.4	80	0.6
WSJY-90	400-450	30	1.1	90	0.6
WSJY-120	500-700	55	1.1	120	1.5
WSJY-135	800-1000	75	1.1	133	2.2
WSJY-160	1200-1500	90	1.5	155	2.2
WSJY-200	1800-2000	132	1.5	195	3.0

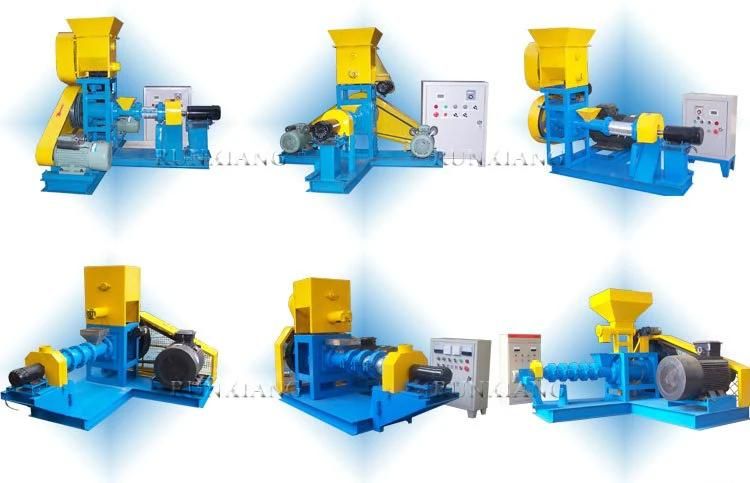

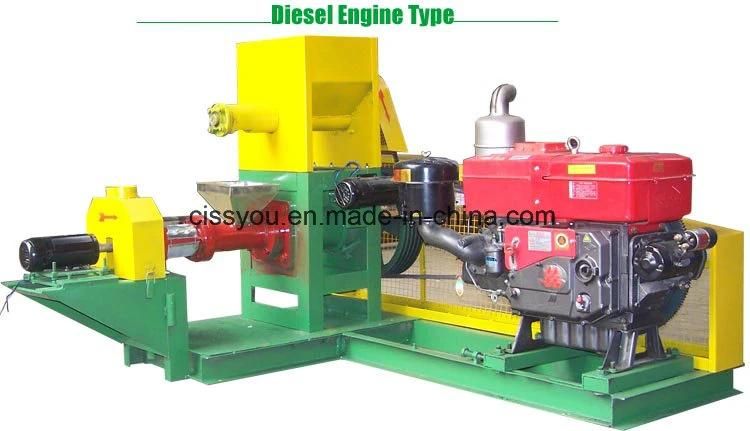

There are many different models extruder machine for customers' choice, based on different capacity demand. And some smaller models can also be equipped with diesel engine.

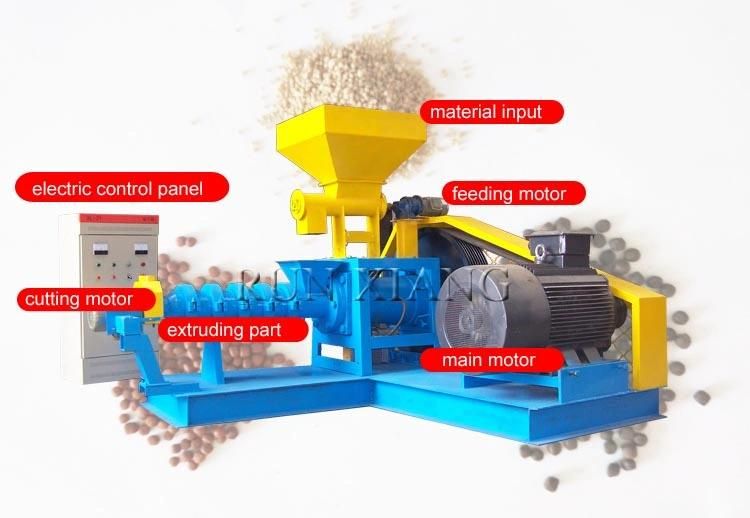

Structure



Structures of floating fish feed extruder

•  Three motors: Main motor + feeding motor + cutting motor
• Working principle: Put the material into feeding device. The material will be extruded and expanded by the screw shaft with high pressure and temperature to make the material fully cooked and sterilized. Then the expanded material will be formed into different shapes through different molds.
• √ We will send sets of molds, spare parts( sleeve, extruding part, cutter, etc,) and tools for free.

Features of floating fish feed extruder

• Easy to digest: High extruding temperature |  High pressure cooking process | Kill the salmonellosis and bacterial infections, making the pellets easily to digest.
• Various output: Many models with different capacity .
• Machine material: Main parts, like sleeve and screw, are made of alloy material, wearable, durable.
• Advanced design, and stable performance.
• The cutting device can be adjusted to make pellets of different length.
• Floating time: about 24 hours,which can be seen clearly and it won't waste feed. The feed is very catering and easy to be digested for animals, especially fish.

Whole fish/shrimp/cat/dog feed pellet production line

√Crusher machine    √Mixer machine    √Extruder machine    √Dryer machine
√Cooler Machiner     √Flavor machine     √Packing machine




Company Information

 Zhengzhou Runxiang Machinery Equipment Co.,Ltd, mainly engaged in a wide range of machinery and equipment business, especially in the food machinery, animal feed processing machinery, coal mining machinery, and packaging machinery.
  Our company has always been adhering to the "Quality first, service first, develop together with customers" purpose. We have passed SGS, ISO,CE, etc. Runxiang Machinery pursues the :principle, responsibility, sincerity, cooperation, fairness, forward-looking" values, wholeheartedly look forward to your cooperation!

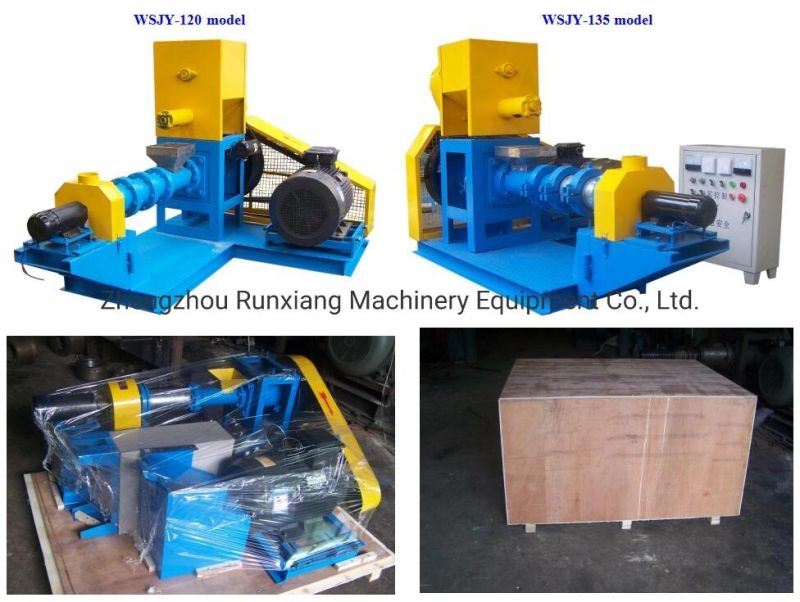

Package & Delivery
1. This floating fish feed extruder will be packaged by export wooden case.
2. We will arrange the delivery within 10-20 working days after receiving the payment.

FAQ
Q: What kind of floating fish feed extruder machine do we supply?
A: We have two types floating fish feed pellet machine, dry type and wet type.
The biggest difference between wet type and dry type is that, the former type need a steam boiler while the dry type doesn't.

Q: Do you supply fish feed production line?
A: Yes, we can supply a fish feed production line, which includes hammer mill crusher, powder mixer, feed pellet extruder, feed pellet dryer, feed pellet cooler, weighting and packing machine.

Q: What is the size of pellets can be made?
A: The size of the pellet is based on the diameter of the molds. We can customize die molds with diameter of 1-12mm.

Q: Warranty and after-sales service
A: Warranty of the feed extruder machine is one year. If any parts are found defective in quality during the warranty, please do not hesitate to contact us in time.
