• Model NO.：TSPT-60
• Principle：Hot Water Cooking
• Structure：Tunnel
• Operation：Continuous
• Energy：Heat Sterilization
• Property：Physical Sterilization
• Type：Induction Electronics Sterilization Equipment
• Material：304 Stainless Steel or According to Customer Requi
• Power：1.5kw
• Speed Mode：Automatic
• Voltage：380V,50Hz
• Overall Size：5800*1200*2000mm
• Blanching Size：5000*800*300mm
• Transport Package：According to Customer Requirement
• Specification：According to customer requirement
• Trademark：AMBITIOUS
• Origin：China
• HS Code：8438600000
• Production Capacity：200pieces,Year

Basic Info.

Model NO. TSPT-60 Principle Hot Water Cooking Structure Tunnel Operation Continuous Energy Heat Sterilization Property Physical Sterilization Type Induction Electronics Sterilization Equipment Material 304 Stainless Steel or According to Customer Requi Power 1.5kw Speed Mode Automatic Voltage 380V/50Hz Overall Size 5800*1200*2000mm Blanching Size 5000*800*300mm Transport Package According to Customer Requirement Specification According to customer requirement Trademark AMBITIOUS Origin China HS Code 8438600000 Production Capacity 200pieces/Year

Product Description

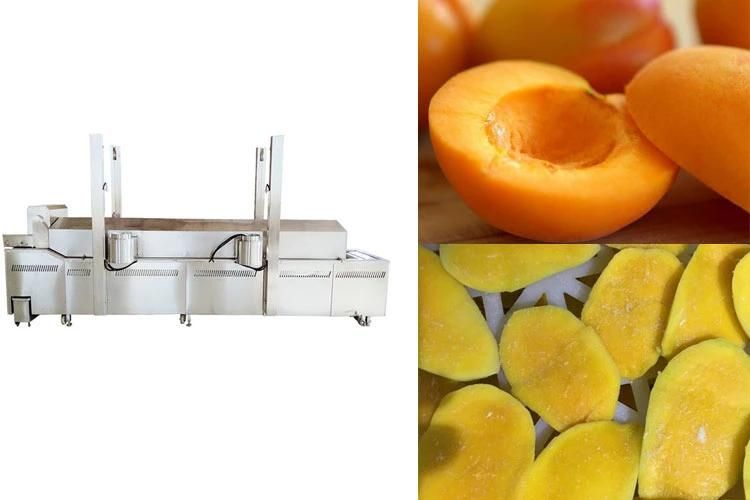

Steam Belt Continuous Blancher Machinery Fruits Blanching Precooking Machine

1. -Machine Introduction



Blanching equipment introduction:

The continuous blanching machine integrates blanching and cooling functions, and works with steam generator, it is safe and reliable.
This machine has the functions of fast green removing, keeping the original natural color of fruits and vegetables. Through the blanching process, the activity of enzymes in fruits and vegetables is stopped, so as to maintain the unique fresh color of fruits and vegetables, emit the green odor of vegetables, retain the fragrance, enhance the softness of cells, and facilitate the evaporation of water.

The application of blanching machine for deep processing of vegetables is an indispensable part of many vegetable processing.



Features:

1. The blanching machine is easy to operate and has big capacity. It is made of stainless steel, with automatic temperature control and double-layer insulation.

2. Fast heating rate, improves temperature in short time.

3. High efficiency, easy operation, labor saving, etc.

4.The processes of feeding, moistening, cooking, cooling, discharging can all be operated continuously without interruption.

5.Assembled with cooling system, can get fast cooling the vegetables/fruits effect.


2. -Technical Data

1	Model	TSPT-60
2	Heating method	Steam
3	Temperature	100 ° C or less
4	BlanchingTime	10-60Min
5	Overall Dimensions	5800*1200*2000mm
6	Power	1.5KW
7	Water Capacity	1500L

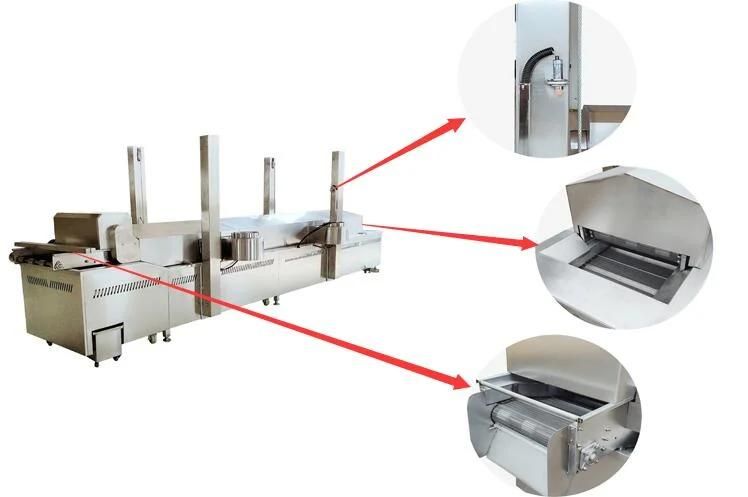

3. -Details



4. -Suitable For Products

The continuous blanching machine is widely used in blanching the following materials:

Vegetables, such as potatao chips, french freis, carrots, green beans, other green vegetables, mushroom, etc.

Fruits, such as pitaya, kiwi fruit, apple, etc.

Nuts, such as peanuts, almond, walnut,etc.

Seafood and meat products, such as fish ball, beef, chicken, pork,etc.

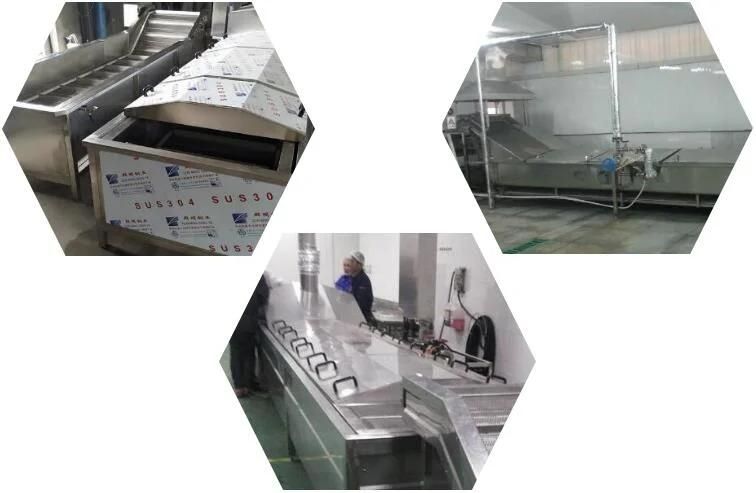

5. -Using Scene

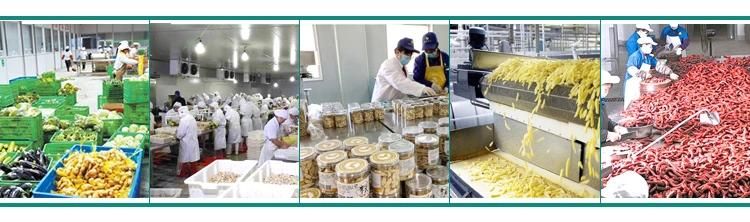

6. -Applications



7. -Company Profile

Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing enterprise which integrates R & D and manufacturing. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.


Main products: Food machinery and complete production lines, including:
Vegetables&fruits cutting machines,
Peeling&washing machines,
Frying equipment,
Air drying machinery,
Blanching&cooking machine,
Food flavoring machine,
Food coating machine,
Freeze dryer,
Jacketed kettle,
Vacuum packing machine,
Complete production line for vegetables,snack foods,etc.

All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, etc. Some of them have pass the CE certificate. All of them could be customized, and we also provide and design individual machines for customers.



8. -Our Clients



9. -Packing And Shipment



10.-FAQ

Q1.Could we visit your factory to check the machine carefully and closely?

A:Welcome to our facotry,will provide machines testing service,face-face discussing,turnkey project design solution.


Q2.How long is your machine's guarantee time?

A:1 year without normal wear parts,machine itself life guaranteed.


Q3.If we have very special request for the complete production line,could you help me to do the design?

A:Experienced mechanical designer customized-design provided.


Q4.If we show you our layout of factory,can you help to design the whole process line?

A:Layout design service provided after received customer's factory layout size.


Q5.If we have samples of new products,can you help to analysis and design the machine?

A:Yes,our technical department can help to analysis,design and test the new products based on the specific requirements you provided.
