• Transport Package：Wooden Case
• Specification：150~300kg,h
• Trademark：SHANGHAI SHINWEI MACHINERY
• Origin：Shanghai
• HS Code：84382000
• Production Capacity：50piece,Year

ModelGD150QGD300QGD450QProduction Capacity(kg/h)150300450Rated Depositing Times(n/min)20-25

Weight Of Each Candies(g)

1. Two Colors

2. Single Color



2-6g

1.5-6g

Electric Power Needed8Kw/380V12Kw/380V16Kw/380VRefrigerator

MT160x1

15000kcal/h

10.5Kw

MT160x2

30000kcal/h

21Kw

MT160x2

30000kcal/h

21Kw

Compressed Air Consumption

Compressed Air Pressure

0.20m3/min

0.4-0.6MPa

1.25m3/min

0.4-0.6MPa

1.25m3/min

0.4-0.6MPa

Conditions Needed For The Cooling System

1. Room Temperature(ºC)

2. Humidity(%)



20-25

55



20-25

55



20-25

55



Length Of The Whole Line(m)91115Gross Weight(Kg)Approx. 3000Approx. 4000 Approx. 5000

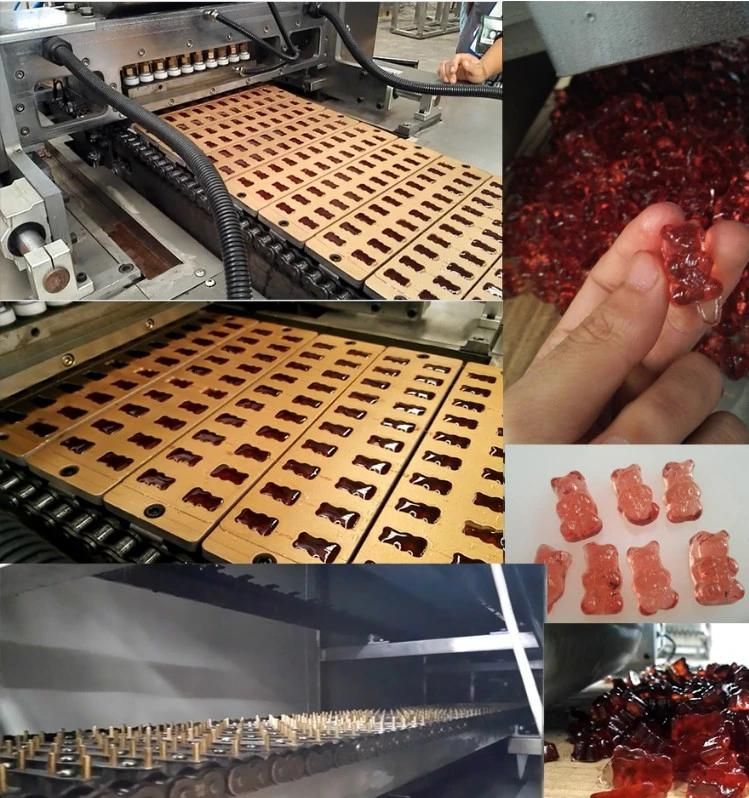

Flow Chart:

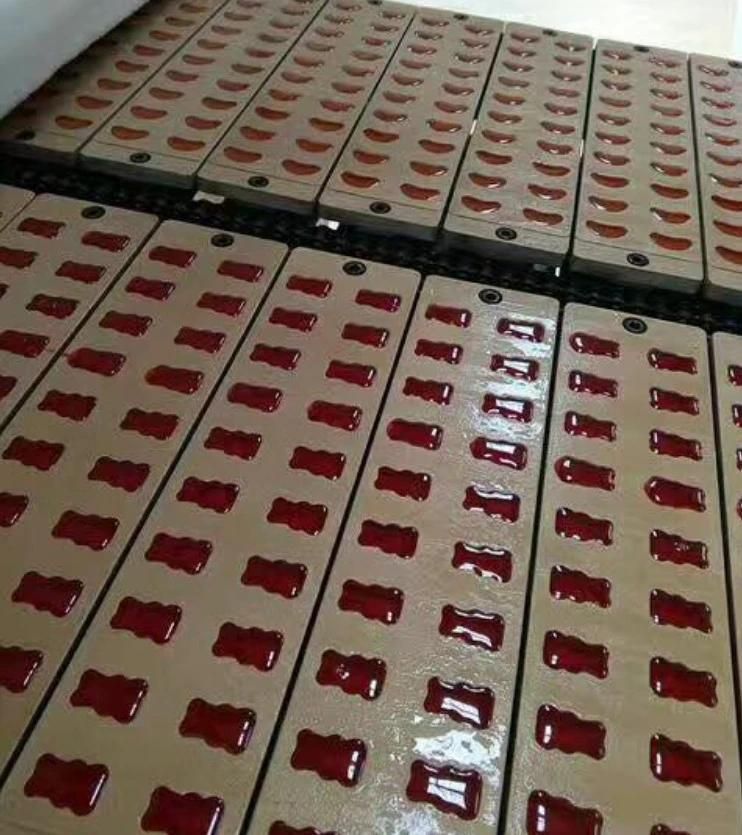

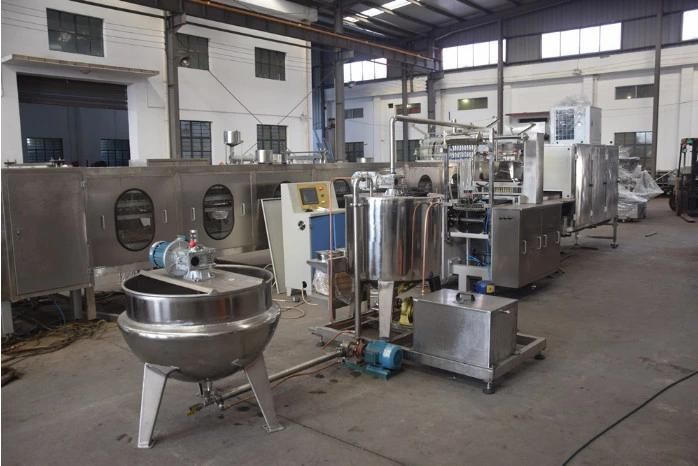

Sugar And Gelatin Dissolving → Mixing → Cooling → Transporting → Depositing →  Cooling → De-Moulding → Following Disposal → Packing

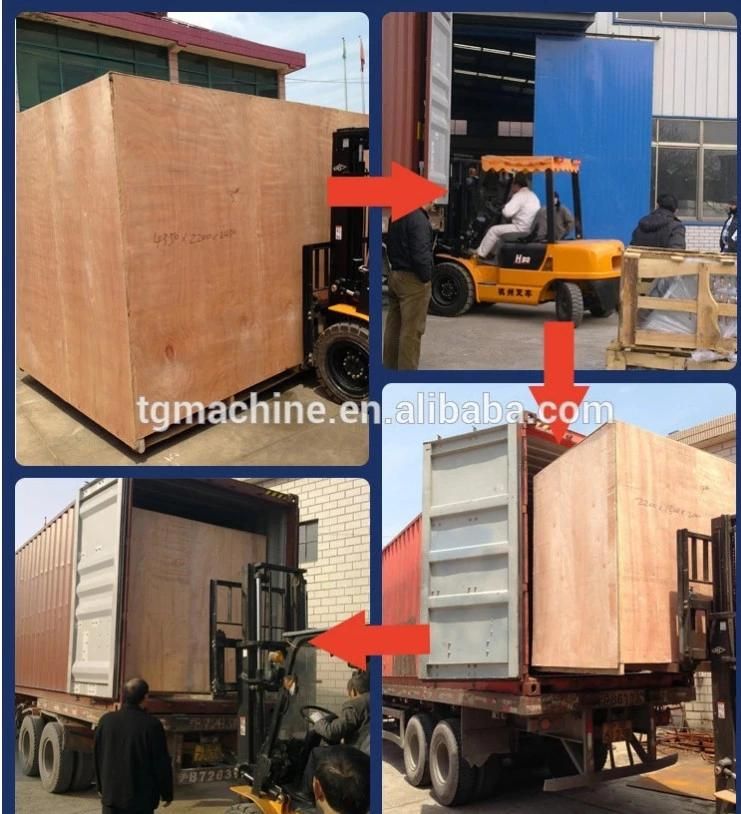

Wooden Packing:

1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing:

    a. Inside the machine put desiccant

    b. Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap

    c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: according to different products for reinforcement


After-Sale Service For Abroad Customers:

1. Free training of machine installation, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installation and adjustment.



Company Profile:



SHINWEI MICHERY provides not only the good quality production line for different kinds of confectionery production, but also the whole solution from marketing research, factory design, machinery installation and production, packing design etc.. we are happy to cooperate with the new investor in food industry or experenced manufacturers. For more solution or information, please contact us or visit our website:Http://shinwei.en.made-in-china.com



Why Choose Us?

• Near 40 years experience in food processing machinery production, established in 1982.

• We are manufacturer and wholesale of dough kneading machine

• We adopt environment-friendly materials and technology

• We mainly sell stock in bulk. OEM orders are welcome
•
