• Model NO.：YZLXQ140
• Condition：New
• Customized：Non-Customized
• Weight：1360kg
• Dimension(L*W*H)：2020*1610*2000 mm
• Daily Processing Capacity：10 Ton,24h
• Certification：ISO, BV, SGS
• Color：Can Be Customized
• Place of Origin：Sichuan, China
• Usage：Rapeseed, Cottonseed, Soybean, Shelled Peanut, Fla
• Press Power(W)：18.5 or 22kw
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Oil Content of Dry Cakes：7.6%
• Filtration Power：1.5 Kw
• Temperature Control Power：3.0 Kw
• Company Features：Manufacturer with Export Rights
• Transport Package：Fumigated Wooden Packing, or as Customers′ Request
• Specification：YZLXQ140
• Trademark：GUANGXIN
• Origin：Sichuan, China
• HS Code：8479200
• Production Capacity：400 PCS,Month

Basic Info.

Model NO. YZLXQ140 Condition New Customized Non-Customized Weight 1360kg Dimension(L*W*H) 2020*1610*2000 mm Daily Processing Capacity 10 Ton/24h Certification ISO, BV, SGS Color Can Be Customized Place of Origin Sichuan, China Usage Rapeseed, Cottonseed, Soybean, Shelled Peanut, Fla Press Power(W) 18.5 or 22kw After-Sales Service Provided Engineers Available to Service Machinery Overseas Oil Content of Dry Cakes 7.6% Filtration Power 1.5 Kw Temperature Control Power 3.0 Kw Company Features Manufacturer with Export Rights Transport Package Fumigated Wooden Packing, or as Customers′ Request Specification YZLXQ140 Trademark GUANGXIN Origin Sichuan, China HS Code 8479200 Production Capacity 400 PCS/Month

Product Description

                                              Combined Oil Press with Oil Filter YZLXQ140



Machine description

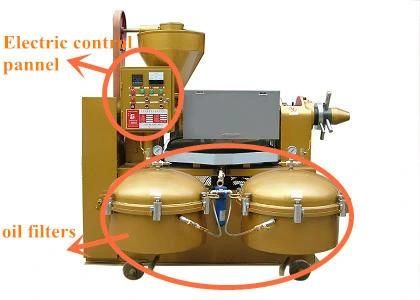

The automatic temperature control combined oil press with air pressure oil filter is a type of combined oil press, it has both oil pressing and oil filtering function in one unit. Easy operation and maintenance. It shares features of  high oil output and fast filtering.

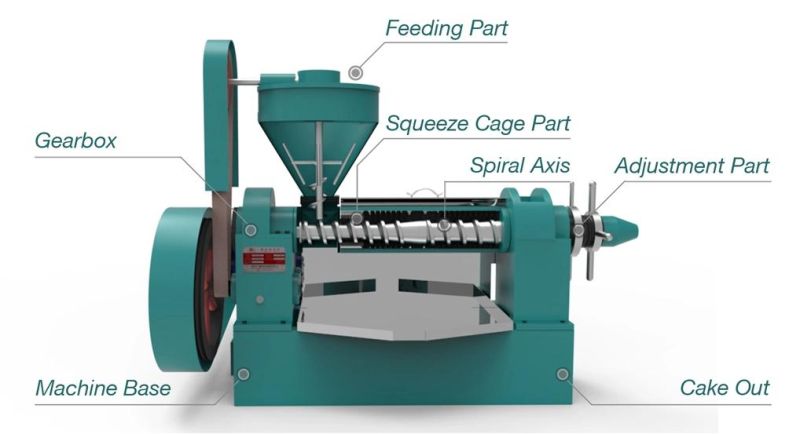

Internal structures of oil press

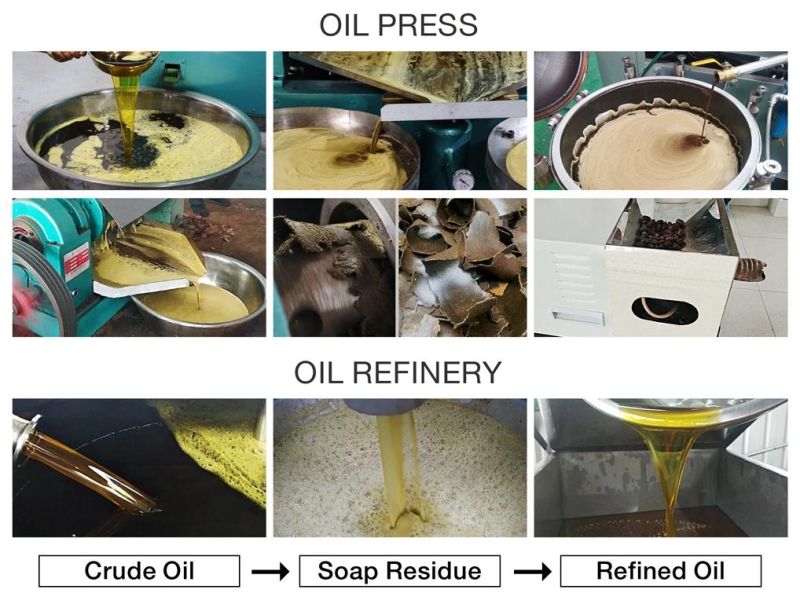

Oil production process



Technical characteristics YZLXQ140


Product Name	Combined Oil Press with Oil Filter YZLXQ140
Processing Capacity (t/24h)	9-11 tpd
Oil Content of dry cakes (%)	≤7.6%
Power Required (KW)	18.5 or 22 kw
Measurement (mm)	2120×1610×2000 mm
Spiral axes rotate speed (r/min)	32-46 rpm
Weight (KG)	1360 kg

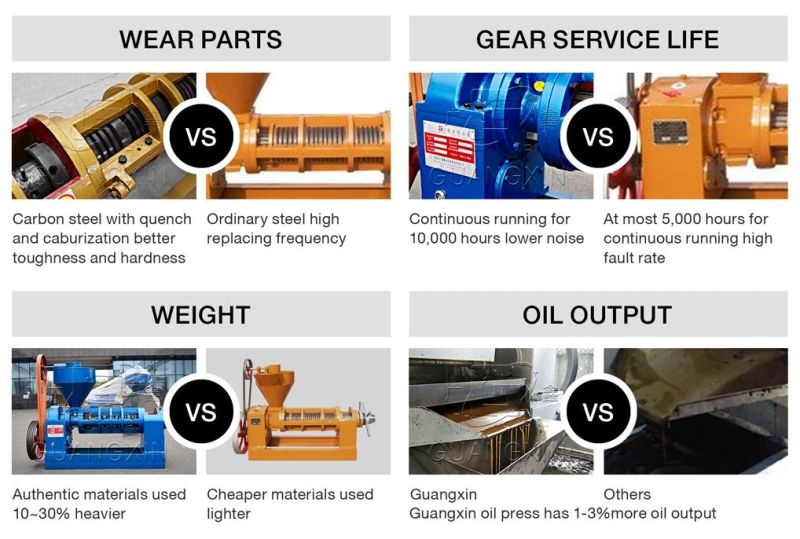

Our advantages


1. Has combined functions in one- The press cage's auto-warming up, oil plants' squeezing and crude oil's filtrating, therefore saves labor cost and time consumption, thus, raises working efficiency.

2. The function of auto-warming up the press cage has replaced the traditional way by squeezing residue cake, which shortened the preparation work and reduced the energy consumption. When the squeezing is suspended, the temperature can be maintained at a certain degree by this system.

3. The two air pressure filters equipped on the machine are making use of the compressed air as force, of which the filtrating ability is quite strong and the result is precise.

4. Day output 9.0 ton/24h, oil content of residue cake ≤ 8%.

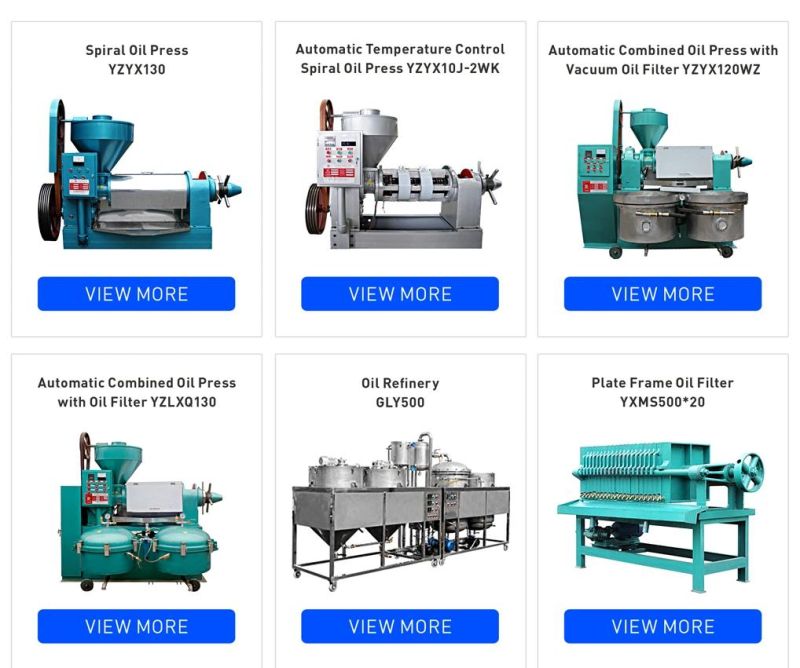

We also provide:







Guangxin Oil Press General Description

Adopting spiral squeezing structure and physical squeezing craft, the oil press made by Guangxin is widely used in oil refinery and rural enterprises for squeezing oil from rapeseed, cottonseed, peanut, soybean, flax seed, tung oil seed, sunflower seed and palm kernel, etc. It has advantages of small investment, easy operating, high efficiency and strong compatibility, etc. Users could obtain good economic benefit from it.

1. Healthy! Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.

2. High working efficiency! The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low.

3. Long durability! All the parts are made of the most suitable material and treated with refined crafts, such as cemented quenching and tempering to increase the hardness, consequently the durability.

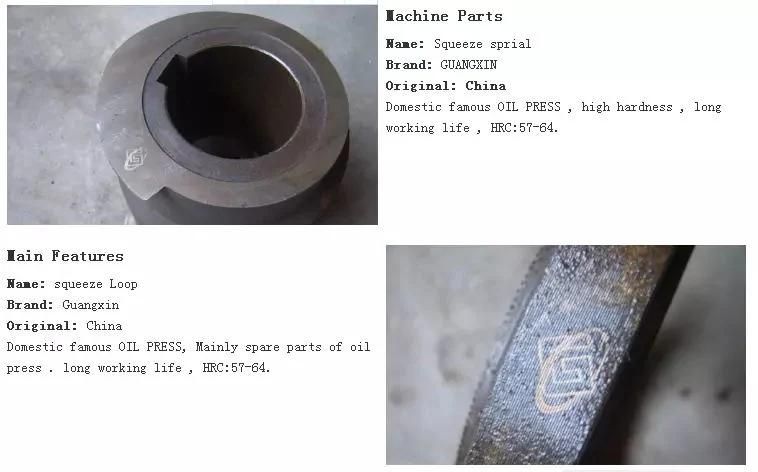

4. Cost effective! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.

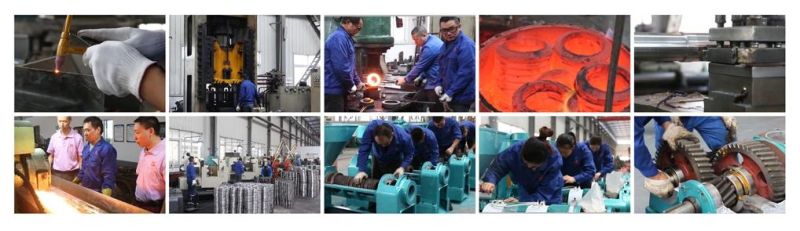

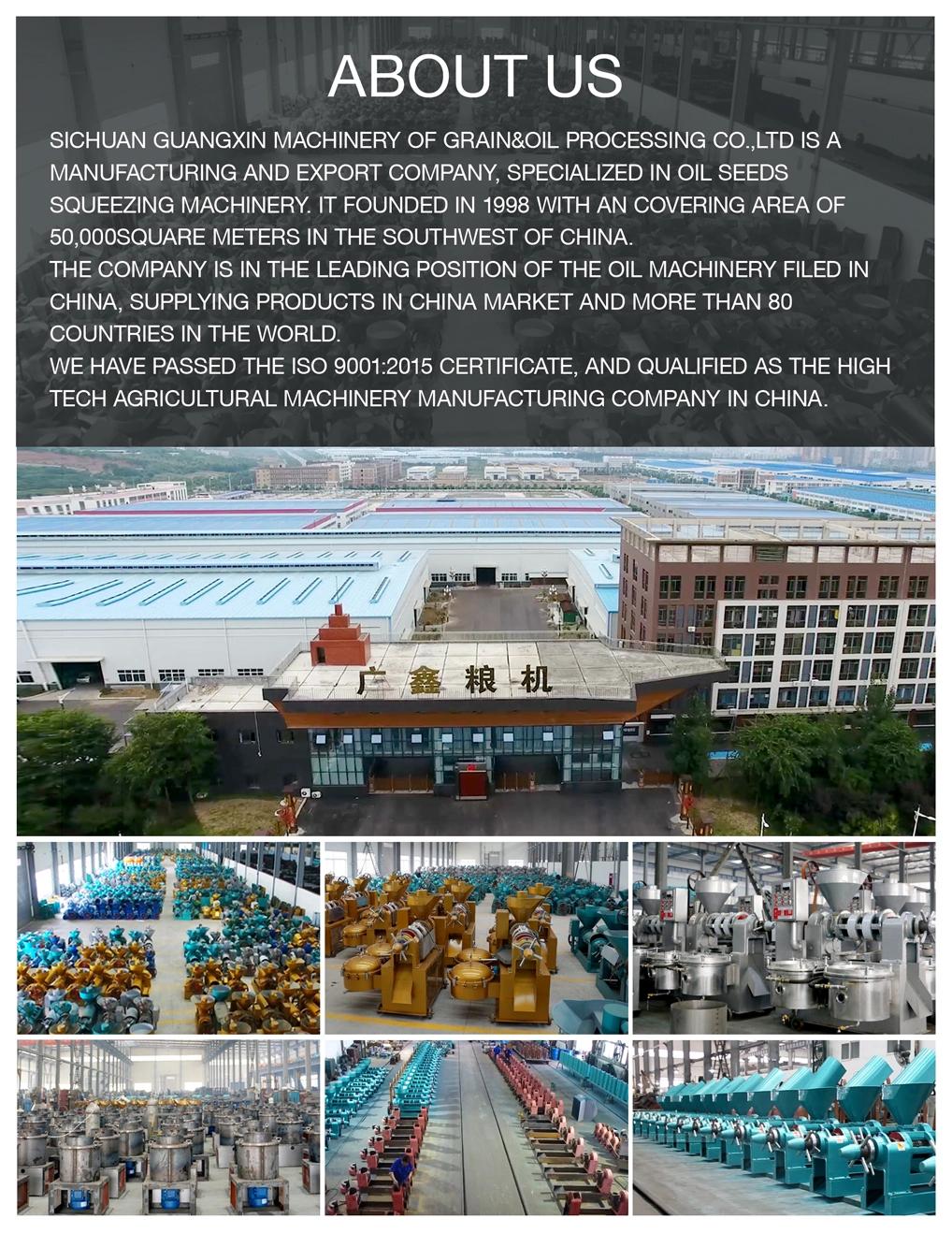

Our company









After-Sale Service

1. We supply spare all year around.
2. We supply technical solutions and helps for buyers at any time.



Packaging &delivery

1. Packaging: Fumigated wooden box packing or as per customer's requests.
2. Delivery: 10-20 day after order confirm
