• Model NO.：SLG65-III
• Material：Stainless Steel
• Motro Brand：Siemens Motor
• Inverter：Delta Brand
• Size：15.0*5.0.*5.0
• Snacks Raw Material：Corn Wheat Flour, Rice Flour......
• Snacks Types：Choco Corn Snacks Food Processing Line
• Stainless Steel Material：201,304
• Warranty：1 Year
• Electric Parts：LG, FUJI, Omron etc
• Transport Package：Woodcase
• Specification：CE ISO BV SGS
• Trademark：Jinan Datong Machinery Company
• Origin：Jinan
• HS Code：84361000
• Production Capacity：200-500kg,H

Basic Info.

Model NO. SLG65-III Material Stainless Steel Motro Brand Siemens Motor Inverter Delta Brand Size 15.0*5.0.*5.0 Snacks Raw Material Corn Wheat Flour, Rice Flour...... Snacks Types Choco Corn Snacks Food Processing Line Stainless Steel Material 201/304 Warranty 1 Year Electric Parts LG, FUJI, Omron etc Transport Package Woodcase Specification CE ISO BV SGS Trademark Jinan Datong Machinery Company Origin Jinan HS Code 84361000 Production Capacity 200-500kg/H

Product Description

Puffed Corn Snack Double Screw Food Extruder
Product Description:
1.Puff corn snack food making machine adopt corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.
2. Snacks Raw materials:
Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.


3. Snacks food Products shapes:
  Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder

4. Corn snack food line Capacity:
  60-80kg/h 100-150kg/h, 200-240kg/h, 500kg/h

Model	Installed power	Real power	Output	Dimension
SLG65-III	70kw	40kw	100-150kg/h	22000x1200x2200mm
SLG70-III	90kw	50kw	200-240kg/h	25000x1500x2200mm
SLG85-III	120kw	100kw	400-500kg/h	30000x3500x4300mm
SLG90-III	135kw	100kw	800-1000kg/h	30000x3500x4300mm
SLG65-I	50kw	30kw	60-80kg/h	15000x1200x220

5.Puff Corn Snacks Food Extruder.machines flow chart:

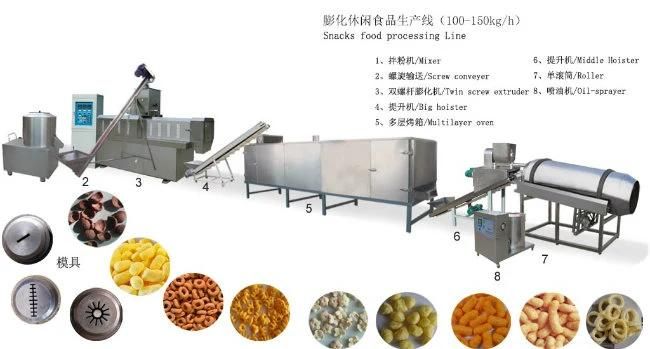

Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--Packing system

  6. China standard industrial Voltage for the machine:
  Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers' Local voltage according to different countries (400v 415v 480v...).
7. Sancks food Machines Materials:
  All the Snacks food machines are made by stainless steel, this whole line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.

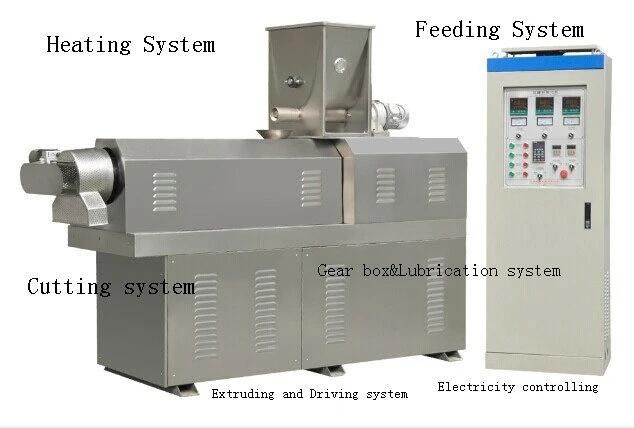

8. Details & Features of Cheese Balls Plant:

1). Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2) Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3) Gearbox with automatic lubrication function, extending gear life.
4) Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.
5) Barrel with water-cooled circulation, raw materials not only for corn/rice, also for wheat flour/starch with high viscosity. Different moisture-extrusion temperature ratio, whole-expanded and half expanded as different type of products.
6) Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
9.Our Services
Jinan Datong Machinery Co., Ltd is a professional food machinery manufacturer in Jinan city shandong province China.Our company congregates an exceptional food machine engineering team, personal customer service center and highquality manufacturing capabilities have evolved exponentially,We are working hard on explore constantly not only in the research of extrusion technology, but also in food technics to benefit our clients producing newfangled food in their markets. It making us become one of the preeminent providers of reliable extrusion equipment world-wide.


10.Packing & Delivery:
Packing: inside plastic bag, outside wooden case for Extruded Food Wheat Corn Snack Pellet Making Machine (Based on the customers' need adopt the wooden case or wooden pellets, etc.).
Transportation: shipping, train, express or upon clients' demands.

11.FAQ
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 40% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us as below:
12. Service & Turnkey Solution:
a. ) Consultation service before, during, and after sales;
b. ) Project planning and design service; Packing: inside plastic bag, outside wooden case for Extruded Food Wheat Corn Snack Pellet Making Machine (Based on the customers' need adopt the wooden case or wooden pellets, etc.).
Transportation: shipping, train, express or upon clients' demands.
c. ) Debugging of equipment until everything is functional;
d. ) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
e. ) Training of equipment maintenance and operating personally;
f. ) New production techniques and formulas;
g. ) Provide 1 year complete warranty and life-time maintenance service.
