• Model NO.：TSGH-100-5
• Material：304 Stainless Steel or According to Customer Requi
• Speed Mode：Automatic
• Size：11000X1700X2500mm
• Layer：5 Layers
• Mesh Belt：1200mm
• Transport Package：According to Customer Requirement
• Specification：According to customer requirement
• Trademark：Ambitious
• Origin：China
• HS Code：8438600000
• Production Capacity：300sets,Month

Basic Info.

Model NO. TSGH-100-5 Material 304 Stainless Steel or According to Customer Requi Speed Mode Automatic Size 11000X1700X2500mm Layer 5 Layers Mesh Belt 1200mm Transport Package According to Customer Requirement Specification According to customer requirement Trademark Ambitious Origin China HS Code 8438600000 Production Capacity 300sets/Month

Product Description

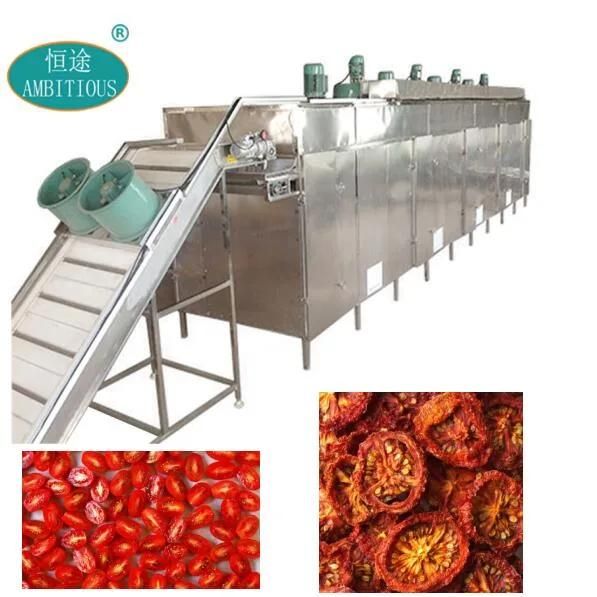

1.-Continuouse Conveying Belt  Dryer and Drying Machine: a.The vegetable drying machine consists of several hot air independent circulation unit.
b.Material can be dried in different temperature range, and with automatic dehumidification system, the temperature can be adjusted.
c.The vegetable drying machine is divided into 5 layers. Hot air generated by the heat exchanger.
d.The heat source can use electric heating, steam or heat transfer oil.

2.-Application of the dryer:
The dryer drying evenly, high efficiency, save labor, reduce labor intensity, suitable for mass production of dried bean curd, Spices, dehydrated vegetables, fruit and other materials drying.




3.-Technical Parameters:

Name	Food Vegetable Hot Air Drying Machine	Model	TSGH-100-5
Overall size	11000x1700x2500mm	Working size	10000x1215x1650mm
Mesh belt	Spiral net, width 1200	Total power	35kw
Drying time	1-24h	Drying temperature	within 100 degree
Circulation fan	4 set	Centrifugal fan	4 set

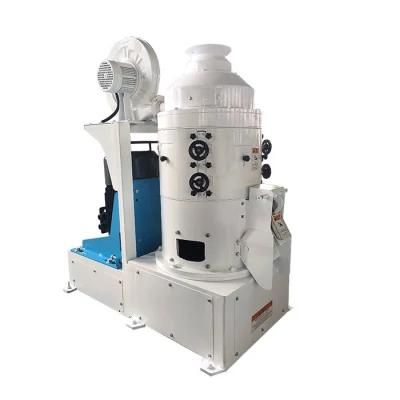

4.-Other Drying Machine:




5.-Packing and shipment

6.-Company&Workshop:
Zhucheng Tianshun Machinery Co.,Ltd. is a modern food equipment and machinery manufacturing enterprise which integrating R & D, production, sales and after-sales services. Mainly manufactures food frying machine,washing machine,blanching&cooking machine,sterilizing machine,quick freezer,freeze dryer,drying machine,packing machine,vegetables/fruits cutting machine,and complete production line,etc.The equipment are widely used for fruit vegetables,aquaticproducts,meat,pasta,medicine,pet foods processing factories,and central kitchens as well.

Our company has always been seeking new development,from process requirements,design,production,quality tracking to after-sales service are all controlled by technical engineers. It has strong technical force, excellent manufacturing facilities,
advanced technology and stable product quality.
We always adhere to the business philosophy of "Establishing enterprises with integrity and win-win innovation", and create higher value for customers and society. We have customers all over the world and our products have been enjoyed a high reputation on overseas market.
