• Model NO.：VPM80
• Production Capacity：30sets,Year

Model

 VPM80

Output(kg/h)

80~100kg/batch depending on product

Driver motor

15kW, 3 Phase, 380V/50HZ

Rotating speed

25~50 r/min

Lifting height

350mm

Dimension

1900 x 1600 x 1800mm

Weight

2500kg

Features:

The pulling machine has been designed by SHINWEI TECH for the aeration of many different types of confectionery masses such as hard candy, toffee and chewy sweets.

It consists of a geared motor, which drives the two rotating pulling arms around a third fixed arm. All internal moving parts are housed in a fixed cover.

The rotating speed of the machine can be adjust by the frequency inverter and shows in the touch screen for easily operation. There are three steps running speed, low, middle and fast speed are available when setting auto running mode. The pulling arms can be rotated in either clockwise or anti-clockwise directions. Speed of the arms is fixed by the belt wheel.

There is a safety cover installed on the machine, when open the over, the pulling arm will be stopped automatic to guarantee the operator's safety.

Equipment Details:

MODEL: VPM80

No.

Equipment details

Qty.

REMARKS

1

pulling machine

1set

80Kg/batch

1-1

Main driving system

1pcs

Belt and gears

1-2

Arms

3pcs

1-3

Motor

1set

15kW

1-4

Electric controlling system

1set

Frequency inverter, Touch screen,PLC

1-5

Common based plate, cover and frame

1set

1-6

Accessories

1set

Standard

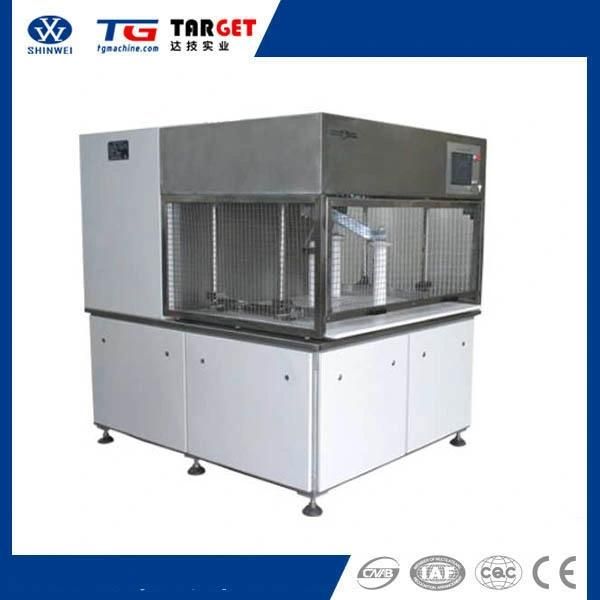

Equipment photo:

Wooden Packing:

1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing:

    a. Inside the machine put desiccant

    b. Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap

    c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: according to different products for reinforcement.

Why Choose Us?

• Near 40 years experience in food processing machinery production, established in 1982.

• We are manufacturer and wholesale of dough kneading machine

• We adopt environment-friendly materials and technology

• We mainly sell stock in bulk. OEM orders are welcome

• We can accept the mix order

After-Sale Service For Abroad Customers:

1. Free training of machine installation, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installation and adjustment.
