• Model NO.：6Y-230-I
• Condition：New
• Customized：Customized
• Vacuum Filter：Yes, Glass Filter
• Max Pressure：55mpa
• English Manual：Yes
• CE Certificate：Yes
• Transport Package：Wooden Fumigated Box
• Specification：CE, ISO
• Trademark：VIC
• Origin：China
• HS Code：84792000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. 6Y-230-I Condition New Customized Customized Vacuum Filter Yes, Glass Filter Max Pressure 55mpa English Manual Yes CE Certificate Yes Transport Package Wooden Fumigated Box Specification CE, ISO Trademark VIC Origin China HS Code 84792000 Production Capacity 5000PCS/Year

Product Description

Hydraulic Oil Press Machine with Vacuum Filter1. Application: The 6Y-230-I hydraulic oil press is improved based on 6Y-230 by introduced Korean technology and won high praise from users, with vacuum filter the final oil will be much better. It can be applied for oilseeds such as sesames, walnuts and pine nuts, etc.
With lower power consumption and noise, it can be fed with 7-8kg of material every time and completely squeeze in 6-8min. The final oil is good edible oil.
Advantage
1). Maximum pressing pressure up to 60Mpa
2). Advanced and reliable hydraulic systems power the equipment
3). The maximum capacity can reach 150KH/H
4). Both cold press and hot press are acceptable
5). Continuous intelligent automatic control system is more safe
6). Low-power motors save energy
7). Filtration system make healthier oil
2. Technical data:
Model: 6Y-230-1 hydraulic oil press
Capacity: 50-80 kg/h for raw materials
Heating collar power: 1.5kw+1.1kw (380V/50Hz)
Heating collar control temperature: 70-100° C
Max pressure: 60MPa
Motor model power: Y901-4.1.5kw
Pressure Kg: 1900KN
Size: 1300X900X1500mm
Weight: 950kg
6Y series hydraulic oil press machine without filtering system:

Model	6Y-180	6Y-230	6Y-260	6Y-300
Process capacity	15-30kg/h	50-80kg/h	80-100kg/h	100-150kg/h
Power	1.5kw(380V/50Hz)	1. 5kw(380V/50Hz)	2.2kw(380V/50Hz)	3kw(380V/50Hz)
Heating collar power	1kw	1kw	1kw	2kw
Heating collar temperature control	70-100 degree	70-100 degree	70-100 degree	70-100 degree
Nominal pressure	1600KN	2200KN	2600KN	3000KN
Max pressure in working	60MPa	60MPa	60MPa	60MPa
Overall size	800X60X1100mm	900X750X1400mm	930X900X1620mm	1050X1000X2000mm
Weight	530kg	880kg	1000kg	1220kg

 3. More pictures

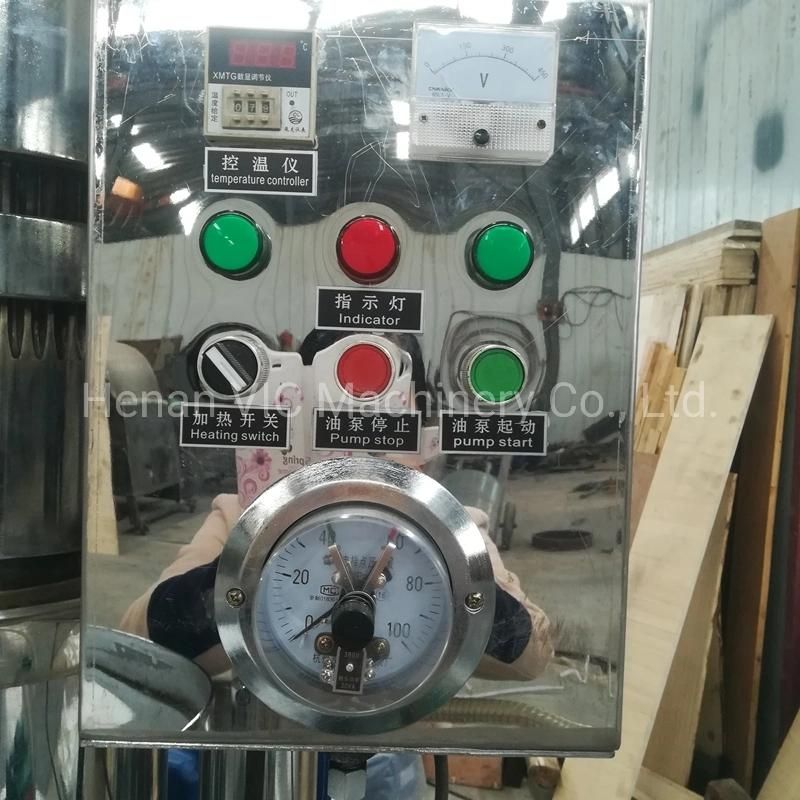

Contral box with double scale pressure

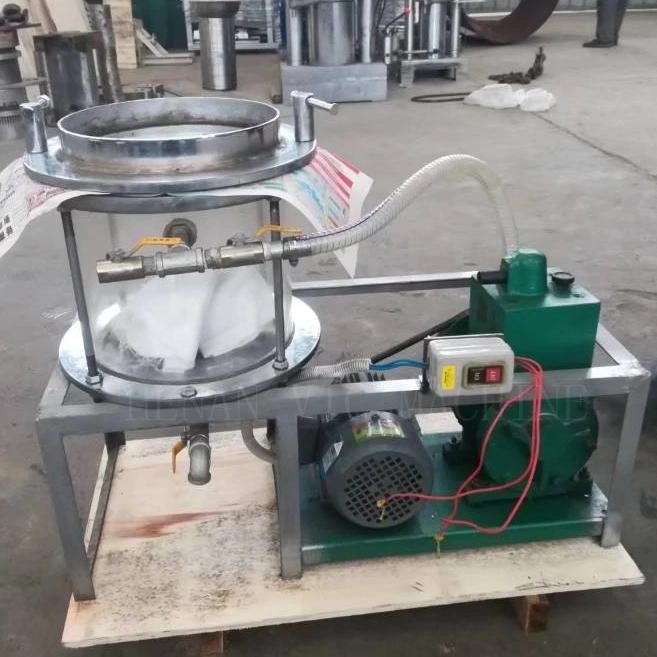

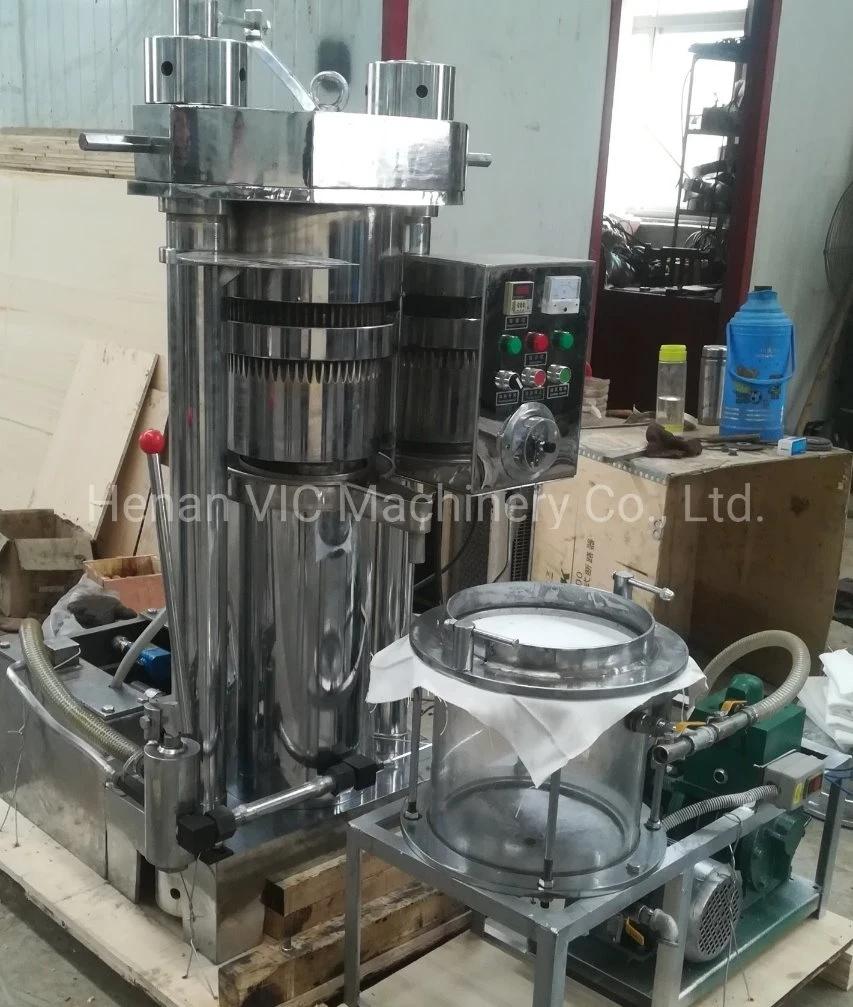

Filter system with vacuum pump

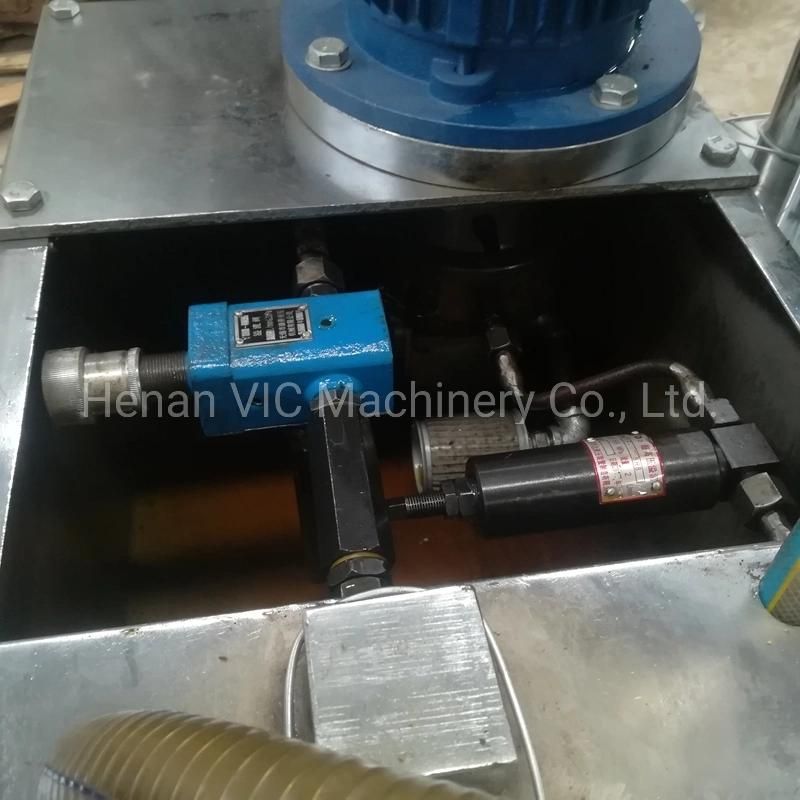

Hydraulic systerm

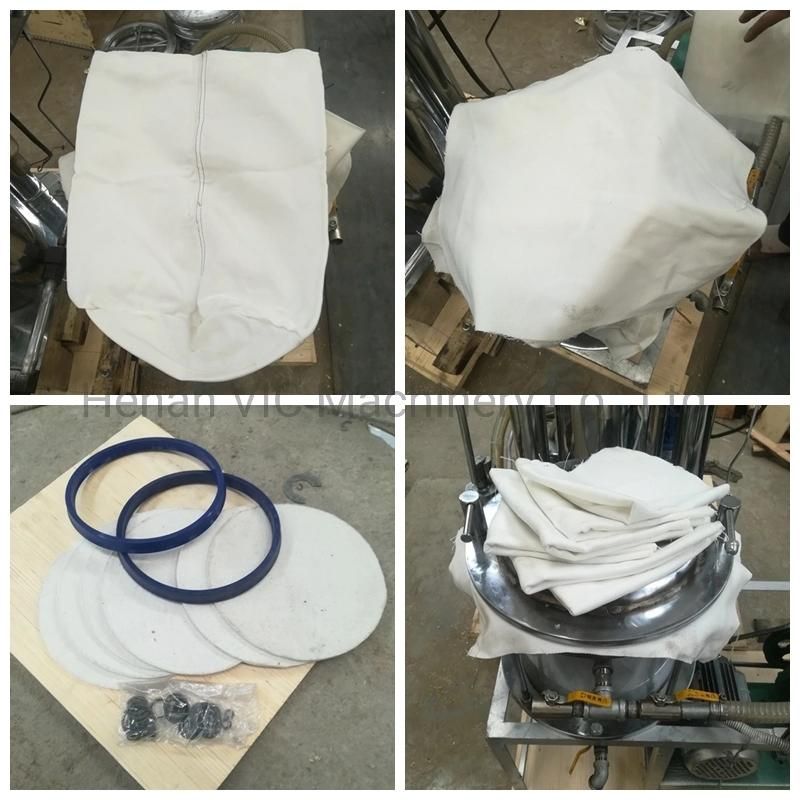

Press cloth and sealing ring

Package

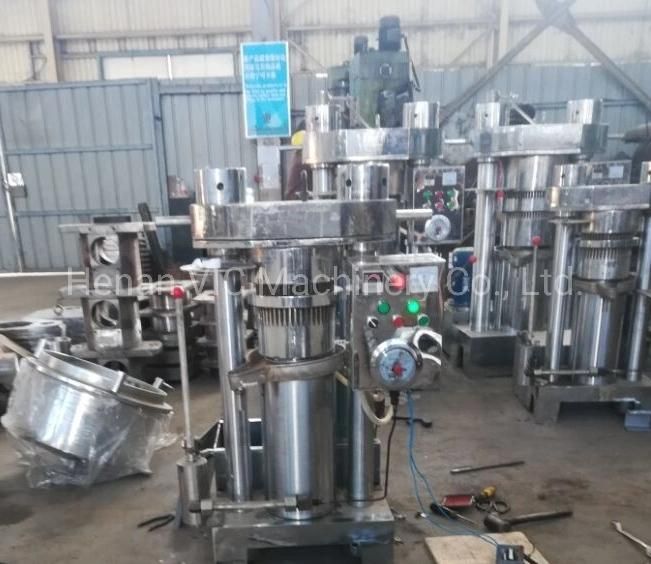

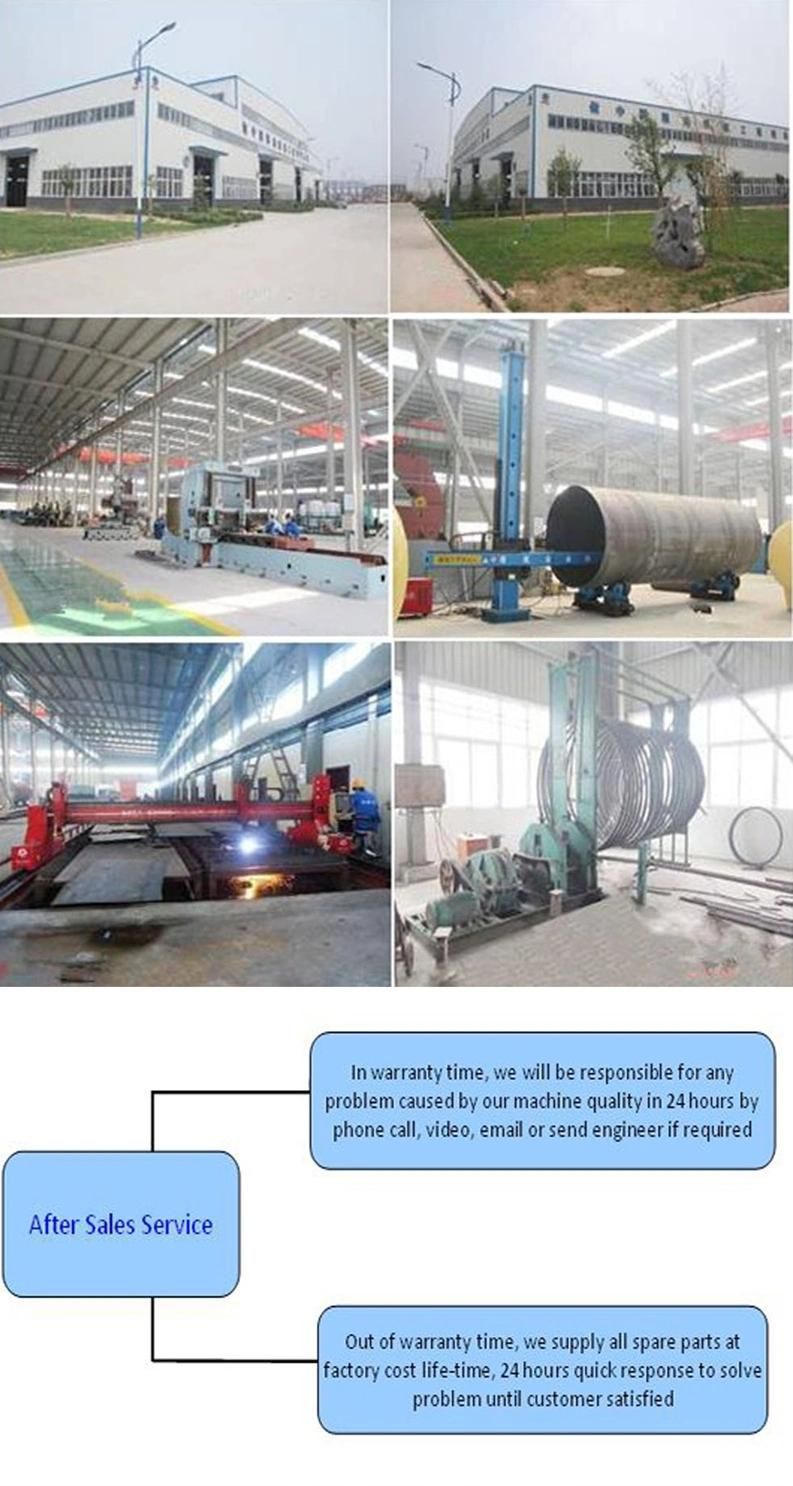

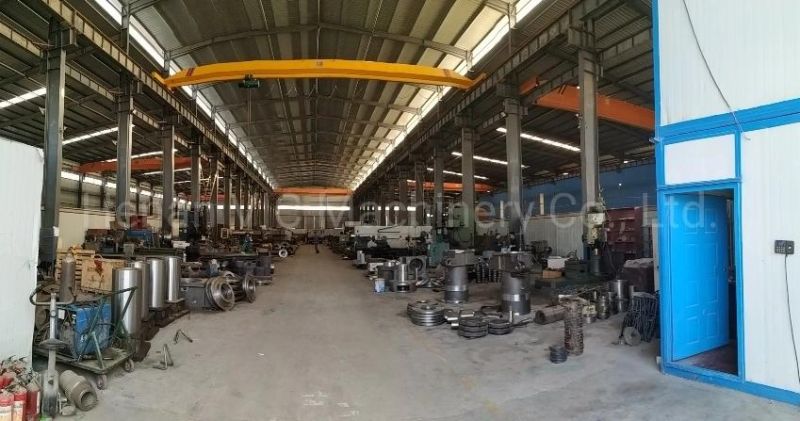

Factory corner

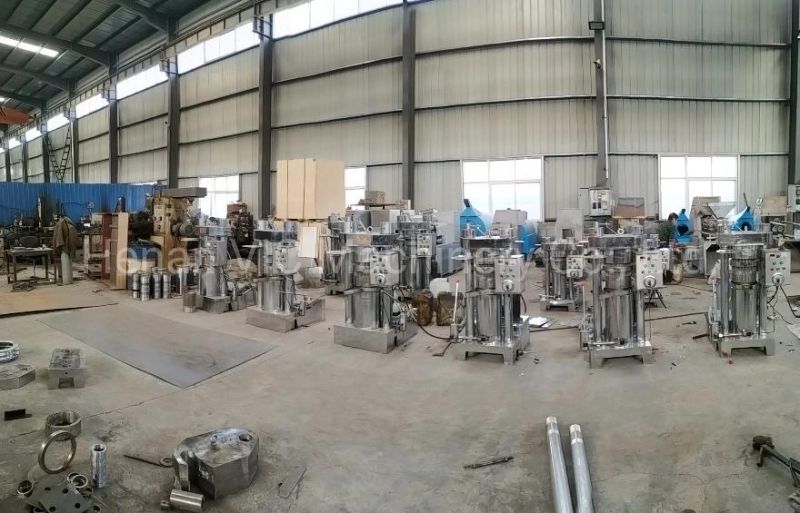

4. Our factory


To know more information, please visit our website: vicmachinery.en.made-in-china.com
