• Model NO.：YT200
• Production Capacity：25sets,Year

Production  capacity

Output

100-120 kg/h

Candy weight

1g(min)~15g(max)

Conditions for cooling system

Room temperature

20~50 ^oC

Humidity

<55%

Total electric power

34kw

Gross weight

2000 kg

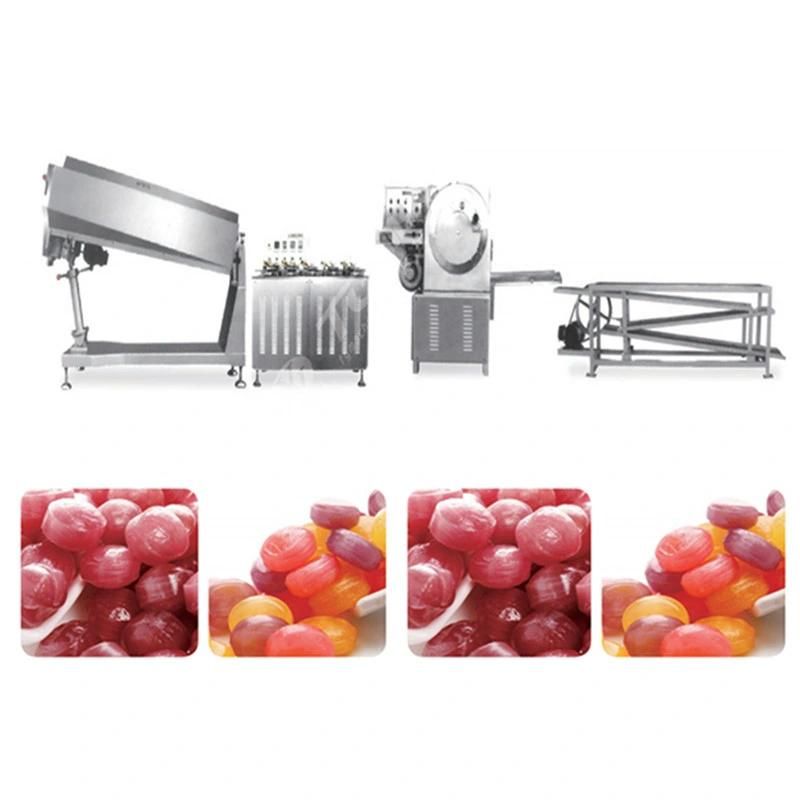

Equipment lists and its details:

MODEL: YT200

No.

Equipment

Specifications

Qty

1

Dissolving tank

200L

1pcs

2

Cooling table

2000*1000*1300mm

1pcs

3

Batch roller(four rollers)

15~75rpm

1set

4

Rope sizer

1set

5

28-die hard candy forming machine

120kg/h

1set

6

Three-layer vibration-cooling bands

1set

7

Pillow type candy packing machine

≤800grain/min

1set

Wooden Packing:

1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing:

    a. Inside the machine put desiccant

    b. Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap

    c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: according to different products for reinforcement.

After-Sale Service For Abroad Customers:

1. Free training of machine installation, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installation and adjustment.
