Factory supply 300kg/h coconut oil press machines
Henan VIC Machinery Co., Ltd.- After-sales Service：online
- Warranty：1 year
- Type：Spiral Oil Press
- Application：coconut
- Voltage：380V
- Appearance：Horizontal
Base Info
- Model NO.：VIC-0.3C
- Press Materials：coconut
- Press Series：Fifth
- Condition：New
- Customized：Non-Customized
- Capacity：300kg,h
- Color：stainless steel
- English Manual：Yes
- SGS：Yes
- Name：coconut oil press machine
- weight：3T
- Transport Package：Wooden Box
- Specification：CE, ISO
- Trademark：VIC
- Origin：China
- HS Code：84386000
- Production Capacity：5000sets,Year
Description
Size 1680x1300x1550mm 1950x1350x1610mm 2050x990x1650mm

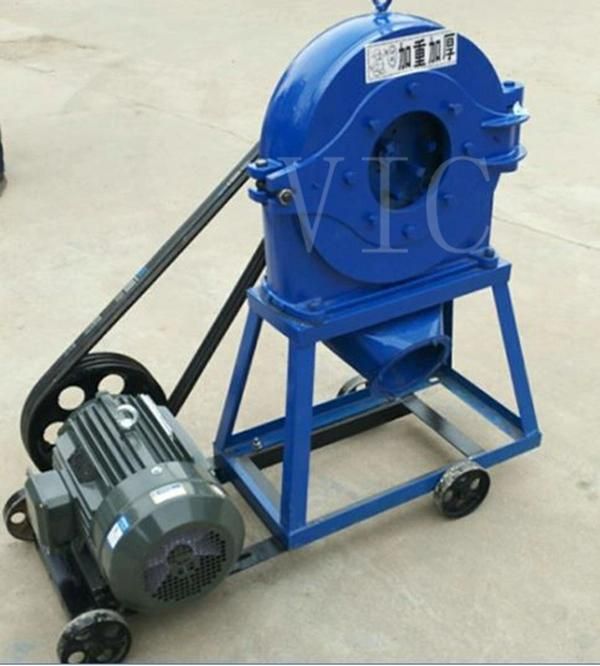

7.FC-350 disc grinder
Application:
Our FC series disk mill has multiple functions. It is designed compactly with a wonderful appearance: small in size and light in weight, reliable in operation and easy in maintenance. It has a large range of service and proves to be of high quality in crushing.
Main data:
10.online coding machine
7.FC-350 disc grinder
Application:Our FC series disk mill has multiple functions. It is designed compactly with a wonderful appearance: small in size and light in weight, reliable in operation and easy in maintenance. It has a large range of service and proves to be of high quality in crushing.
Main data:
| Model | FC-350 disk grinding machine |
| Capacity | 300-800kg/h varies by product fineness |
| Power | 7.5kw(380v/50hz/3p) |
| Main shaft ration speed | 4200-4600rpm |
| Motor speed | 1450rpm |
| Sieve size | 0.6mm, 0.8mm, and 1mm |
| Machine size | 800x610x1020mm |
| Weight | 220kg |

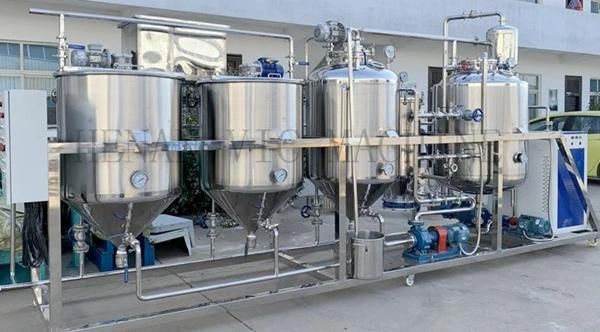

8.500kg/Day complete refinery
Equipment function:
degumming, deacidification, decolorization, decolorization filtration, deodorization, fine filtration, electric heating steam generator, vacuum system and electronic control system.
Equiment list:
| No. | Serial number | Equipment name | Spec/model | Quantity | Materials |
| 1 | L101A/B | Refining tank | LYYG80 | 2 | stainless steel |
| 2 | L102 | Hot water, alkaline water tank | 70×50×50 | 1 | stainless steel |
| 3 | L103 | Clay box | Φ40×50 | 1 | stainless steel |
| 4 | L104 | Decolorization tank | LYSG80 | 1 | SS304 |
| 5 | L105 | Blade filter | YL2 | 1 | stainless steel |
| 6 | L106 | Bag filter | JL20 | 1 | stainless steel |
| 7 | L107 | Deodorant tank | LYXC80 | 1 | stainless steel |
| 8 | L108 | Gas collection device | BJQ30 | 1 | stainless steel |
| 9 | L109 | Water ring vacuum pump | SHB40 | 1 | |
| 10 | L110 | Water tank | Φ60×100 | 1 | stainless steel |
| 11 | L111 | Steam superheater | ZQFSQ32 | 1 | |
| 12 | L113 | Air compressor | PH0.9 | 1 | |
| 13 | P102 | Decolorization pump | TSB40-32 | 1 | stainless steel |
| 14 | P103 | Oil pump | KCB55.5 | 1 | stainless steel |
| 15 | Distribution Cabinet | 1 | |||
| 16 | Installation material fee | ||||
| 17 | Total | 16 |
9.Horizontal 2 heads oil filling machine
Application:
- This series liquid filling machine can be applied to fill liquid in food, bath items, medicine, chemical etc; it's not suitable to fill the liquid with gas and drinking materials with pellet.
- The whole machine are stainless steel, the contact materials part choose 316L stainless steel and in accordance with health standard.
- Pneumatic parts choose Taiwan AirTAC brand to make sure the machine work steady.
- Foot switch inching operation, auto working and two kinds of control mode are more practical and convenient.
- The filling heads can be changed according to different diameter bottleneck.
| Model | VIC-L2 Liquid filling machine (2 heads) |
| Filling speed | 10-40bottle/minute |
| Filling precision | <±0.5% |
| Pressure | 0.4-0.9Mpa |
| Power | 50w |
| Gas volume | >=0.1M3/Min |
| Size | 1200mm×300mm×400mm |
| Weight | 50kgs |
10.online coding machine
Applicable:
This online coding machine can be applied in complete making line, also can be used to code different product online.
Main data:
| Model | intelligent online coding machine |
| Coding height | 12.7mm |
| Language | English, Chinese, Korea etc |
| Coding speed | 0.5/time |
| Coding depth | 5mm |
| Coding scope | Max 800mm |
| Size | Conveyor: 1530x410x210mm, coding machine: 250x180x100mm |
Packaging and shipping
Packaging:In wooden b
