High Bph 0.1-2L Pet Beverage Bottle Making Machine Blow Molding Machine

Taizhou Jiansheng Machine Co., Ltd.
  • After-sales Service:1 Year After Shipment
  • Condition:New
  • Customized:Customized
  • Voltage:380V
  • Composition:Packaging Equipment
  • Processing Material:Pet

Base Info

  • Model NO.:JS-6C-2L
  • Process:Thermal Processing
  • Mold Clamping Force (Kn):500
  • Max. Bottle Capacity (L):2
  • Max. Bottle Diameter (mm):105
  • Max. Bottle Body Height (mm):350
  • Thermal Rating (Kw):60
  • Machine Weight (T):4.5
  • Transport Package:Wooden Box
  • Specification:3.6x 2.3 x 2.2M
  • Trademark:JS
  • Origin:Made in China

Description

High Bph 0.1-2L Pet Beverage Bottle Making Machine Blow Molding Machine

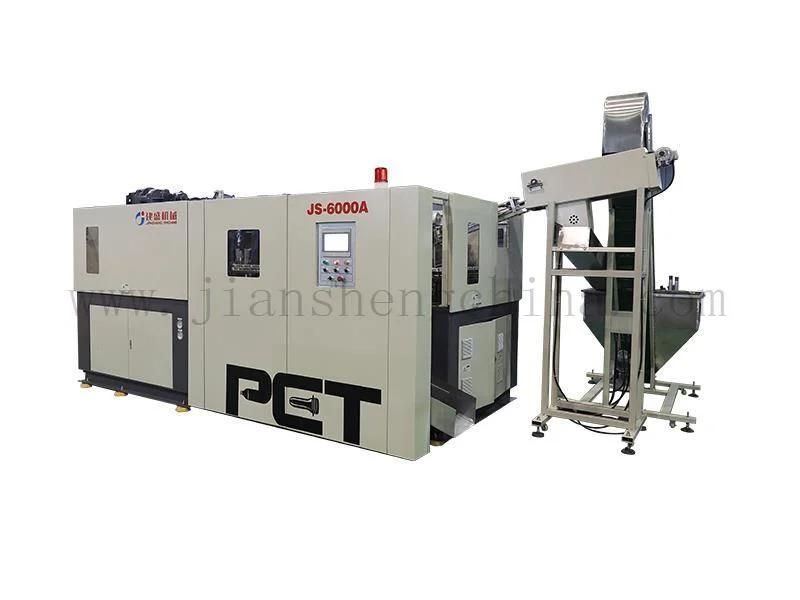

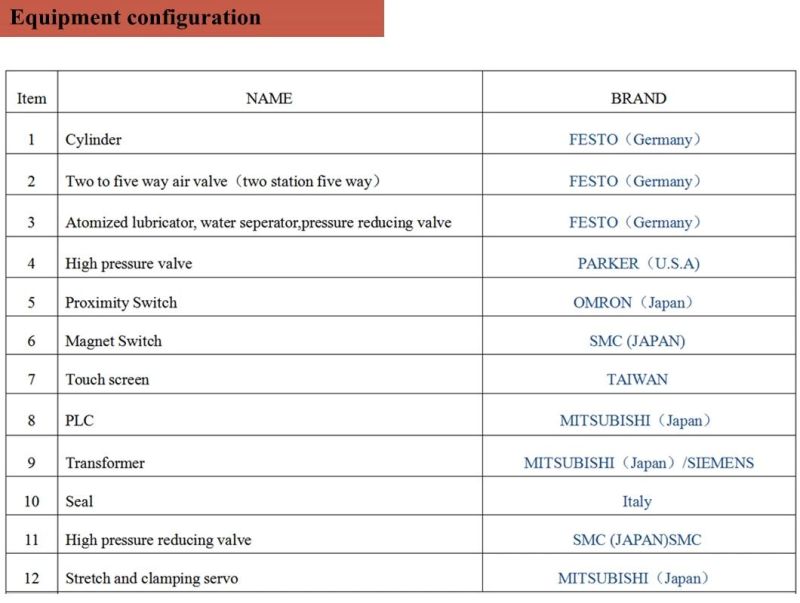

1.Pet Plastic Type And Yes Automatic Blow Molding Machine JS-6000A With touch screen, Use Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)

2.Nontoxic conveyor belt to carry preforms
3.Produce PET Bottles ( such as: wine, beverage, soybean, vinegar bottles and so on)
4. Easy to maintain
5. Infrared lamps
6.High safety. high speed with high efficiency.
7.Manual saving, one man is enough for operation the machine.
8.Stable performing with easy maintaining.
9.Imported PLC controlling and man-machine interface computer.
10.Japan Omron inspection sensor.
11.Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
12.Power saving design that can increase your profits.
13.Segregate type air controlling system, which is designed for avoiding waste pollution.



 Mold clamping force (KN)500Mold traveling distance (mm)135Pulling rising traveling distance (mm)350Mold hole number (cavity)6Max. Bottle capacity (L)2Max. Tooth part size (mm)40Max. Bottle diameter (mm)105Max. Bottle body height (mm)350Theoretic production capacity (bph)7000-9000PCS/HRTotal power consumption (kW)65Thermal rating (kW)60Operating pressure (kg/cm2)8Low pressure gas consumption (L/min)2000Bottle blowing pressure (kg/cm2)30High-pressured gas consumption (L/min)5500

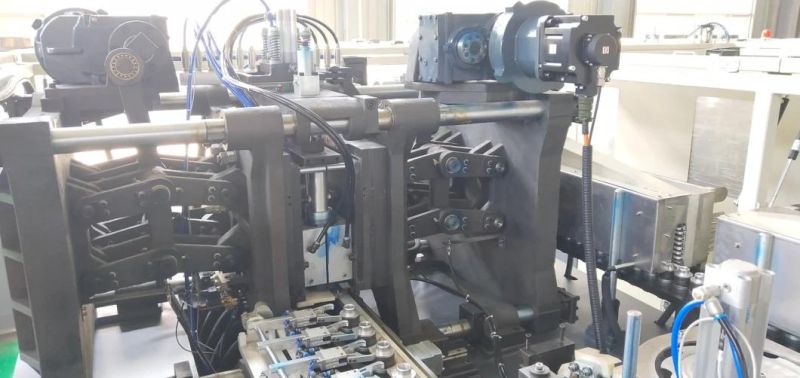

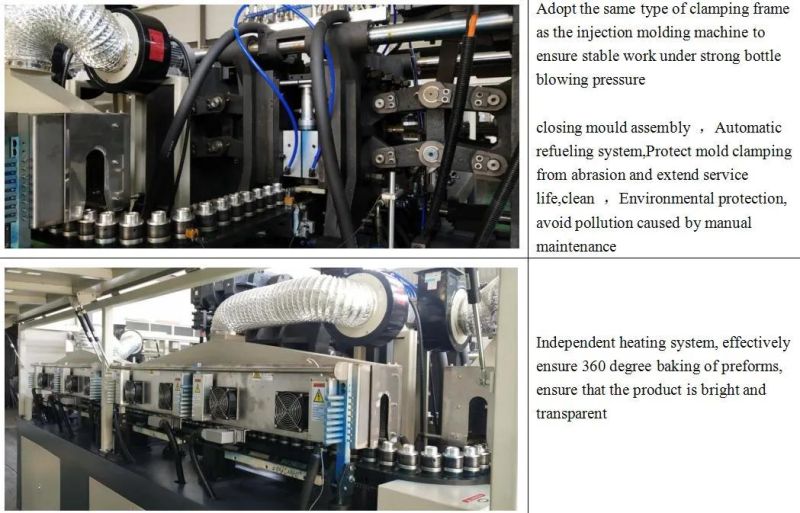

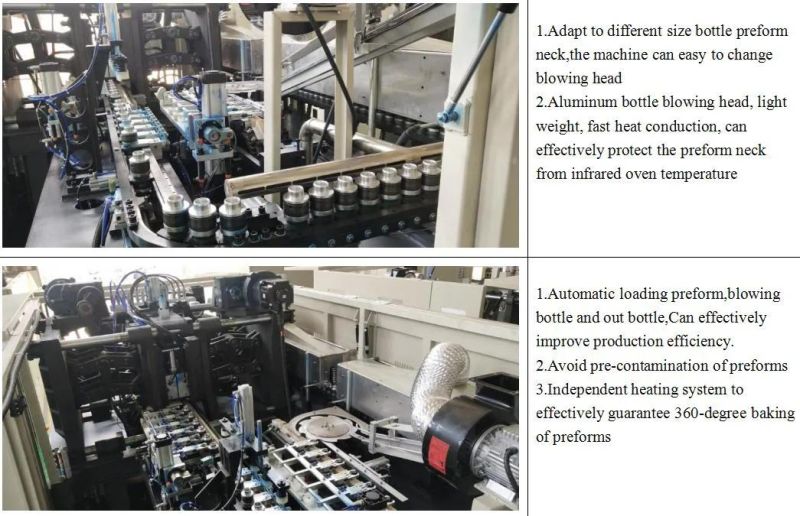

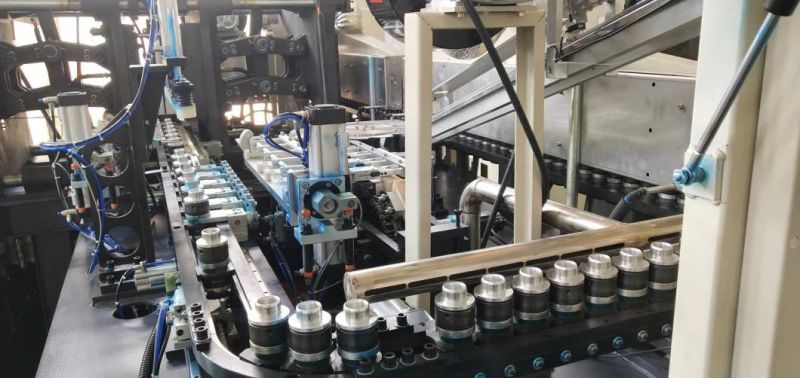

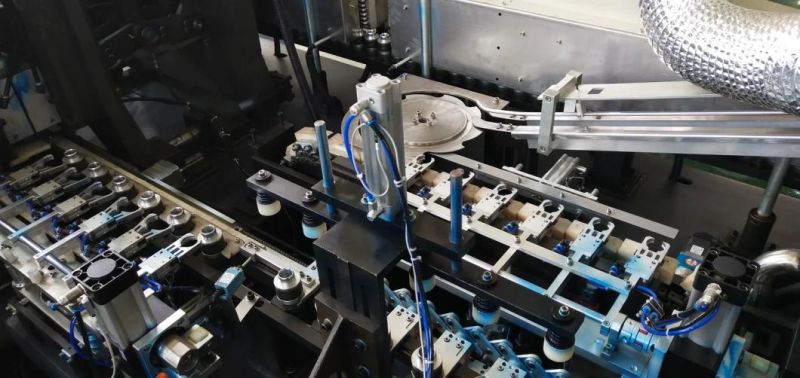

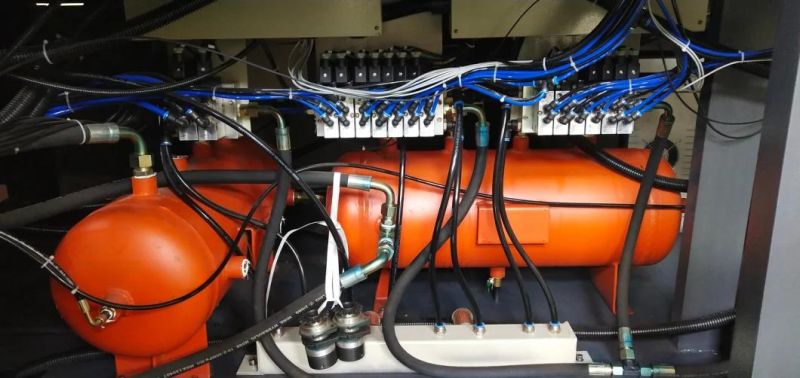

Internal details of the MachineHigh Bph 0.1-2L Pet Beverage Bottle Making Machine Blow Molding MachineHigh Bph 0.1-2L Pet Beverage Bottle Making Machine Blow Molding Machine High Bph 0.1-2L Pet Beverage Bottle Making Machine Blow Molding MachineHigh Bph 0.1-2L Pet Beverage Bottle Making Machine Blow Molding Machine

High Bph 0.1-2L Pet Beverage Bottle Making Machine Blow Molding MachineHigh Bph 0.1-2L Pet Beverage Bottle Making Machine Blow Molding Machine
High Bph 0.1-2L Pet Beverage Bottle Making Machine Blow Molding Machine
High Bph 0.1-2L Pet Beverage Bottle Making Machine Blow Molding MachineHigh Bph 0.1-2L Pet Beverage Bottle Making Machine Blow Molding MachineHigh Bph 0.1-2L Pet Beverage Bottle Making Machine Blow Molding Machine
