• Model NO.：Flowtam-JCG
• Name：Steam Jacketed Kettle with Agitator
• Volume：50-1000L
• Heating：Electric,Steam
• Transport Package：Standard Export Package
• Specification：CE, ISO9001: 2008, SGS
• Trademark：Flowtam
• Origin：China, Zhejiang
• HS Code：8479820090
• Production Capacity：100set,Month

Basic Info.

Model NO. Flowtam-JCG Name Steam Jacketed Kettle with Agitator Volume 50-1000L Heating Electric,Steam Transport Package Standard Export Package Specification CE, ISO9001: 2008, SGS Trademark Flowtam Origin China, Zhejiang HS Code 8479820090 Production Capacity 100set/Month

Product Description

Product Name: Jacket kettle
Brand: Flowtam
Material: 304(L) 316(L)
Finish: Mirror or Matt Polish; Ra<0.4um
Certification: CE ISO9001: 2000

Product introduction:
We supply all kinds of jacket kettle for your choice. Steam jacket kettle and Electrical Jacket kettle. Tilting and stationary type, with agitator and without agitator.

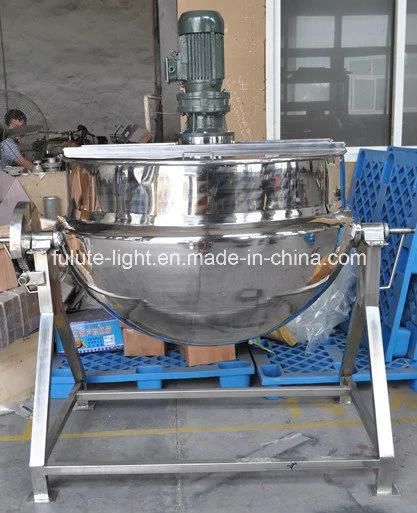

Steam Jacket kettle
With Dimple jacket inside the walls for steam inject and heating. It takes the steam as thermal source. The inner surface contacted with the product are all SUS304 Or SUS316.

Electrical Jacket Kettle
Compared with steam heating, the heating temperature of the electrical jacket kettle is higher than steam jacket kettle, Which can shorten the cooking time.

Application:
The products could be applied in food, beverage, Pharmacy, chemical industry etc.

Material Available:
SUS304 SUS316 SUS316L

Effective volume(L)	Heating area(m2)	Jacket working pressure(Mpa)	Dimension(mm)
50	0.4	<0.2	720*600*830
100	0.45	<0.2	800*650*950
150	0.76	<0.2	1350*660*1000
200	1.0	<0.2	1400*700*1100
300	1.15	<0.2	1450*800*1110
400	1.44	<0.2	1500*850*1140
500	1.65	<0.2	1600*900*1150
