• Model NO.：JP-LRY
• Machine Raw Material：SUS304,SUS316,Titanium
• Degree of Automation：High or to Be Customized
• Products Type (Brix)：8%|16%|32%|40%|48%|56%|72% to Be Defined
• Products Package：Can, Bottle, Pouch, Pet, Aseptic Bag etc.
• Compatibility & Expandability：Excellent
• Transport Package：Standard Export Package
• Specification：125kg-125tons per hour
• Trademark：SHJUMP
• Origin：Shanghai, China
• HS Code：8435100000
• Production Capacity：23

No.

Process Section

 Main Process

1

 Cleaning and picking

 raw material collection, cleaning, sorting, etc.

2

 The crushing and pulping

 crushing,juicing,enzyme inactivation, pulping, etc.

3

 Biochemical refining

 including enzymatic hydrolysis, fermentation, filtration, concentration evaporation,blending, degassing, homogenization, etc.

4

 Sterilization filling

 including UHT sterilization, filling, post pasteurization, etc.;

5

 Finished product packaging

 including light inspection, drying, labeling, sleeve label shrinking, coding, boxing, sealing, wrapping, palletizing, etc.

2.2      Solid state product form

Dried fruit processing and fruit powder processing production lines can be roughly divided into the following process sections

No.Process Section Main Process1 Cleaning and picking raw material collection, cleaning, sorting, etc.2 Peeling and slicing  removing stems, pedicles, peeling, nucleation, and slicing3 Biochemical refining  blanching, color protection, sugar dipping, drying, etc.4 Spray drying powder  liquid product form-sterilization filling process section-sterilization-spray drying-secondary drying / granulation, etc.5 Finished product packaging  weighing, bagging, labeling, coding, boxing, sealing, wrapping, palletizing, etc.



2.3      Main equipment list

Main Equipment

Function

Elevating Machine

Material's lifting and preliminary washing

Shell Crushing& water extract

Shell Crushing& water extract

Washing Machine

Meat washing

Sorting Machine &Crushing Machine

crushing the meat

Pre-heater

Material's pre-heating, enzyme deactivation and color protection

Pulping &juicing machine

extract the juice

Vacuum Evaporator

Water's evaporation and concentration of juice/pulp

Sterilizer

Sterilize the material by heat-treatment

Aseptic Filler

Fill the materials into bag-in-box and bag-in-drum aseptic bag

Conveyor

Transport the material or final products

Centralized control cabinet

PLC human-machine interface, equip with manual or automatic operation



2.4      Detailed consultation

Successful production lines are not exactly the same;

Failed production lines are all the same!

The process route and process flow involve the core technology of the production line, and the whole or part process route, raw material resources, product positioning, market channels and investment strategies are all different. The above process route is for reference only, and the process execution route shall be subject to the actual raw materials and product form requirements.

Detailed information please contact Roy Li

Food engineering expert (with practical engineering experience in more than 300 fruit and vegetable processing and plant extract processing production lines in the world)

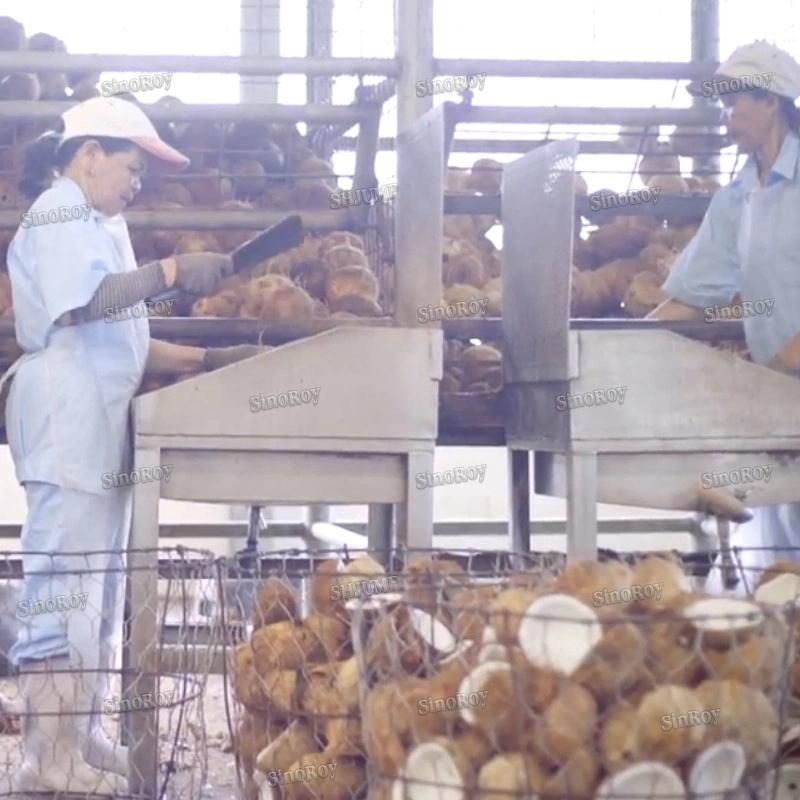

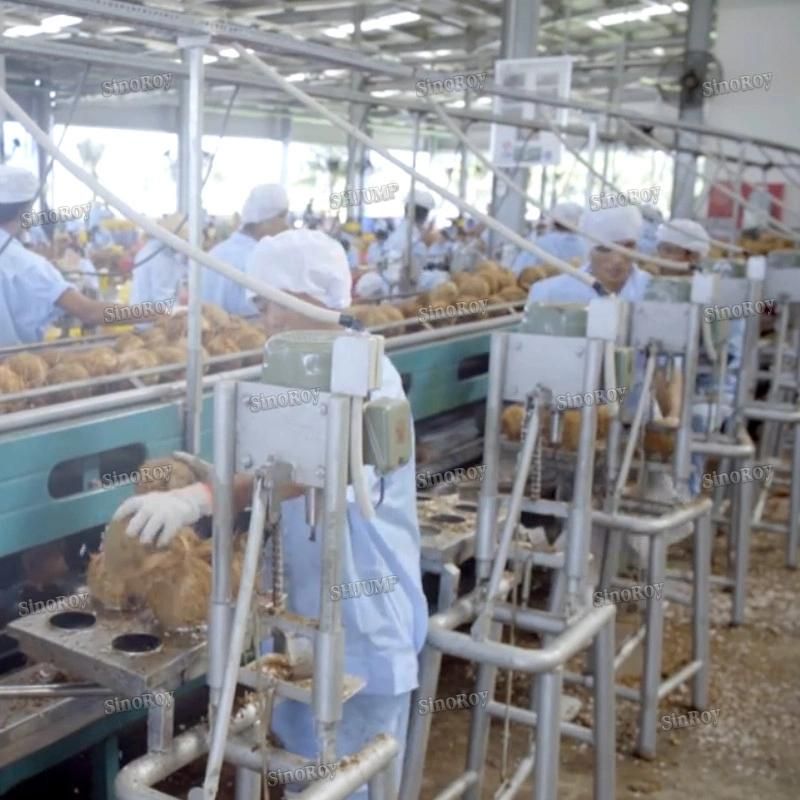

 3       Production Site Show

*************************************************************************

4       Our Advantages

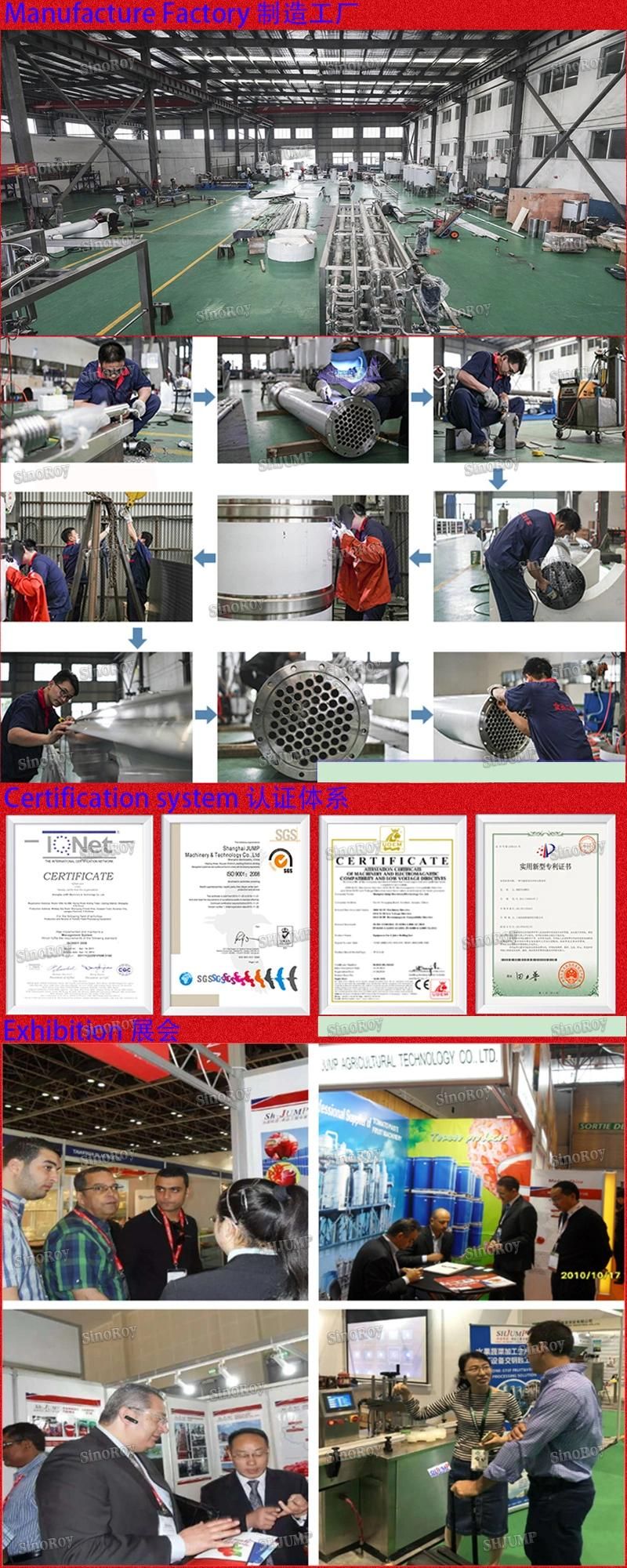

5       Introduction of SHJUMP

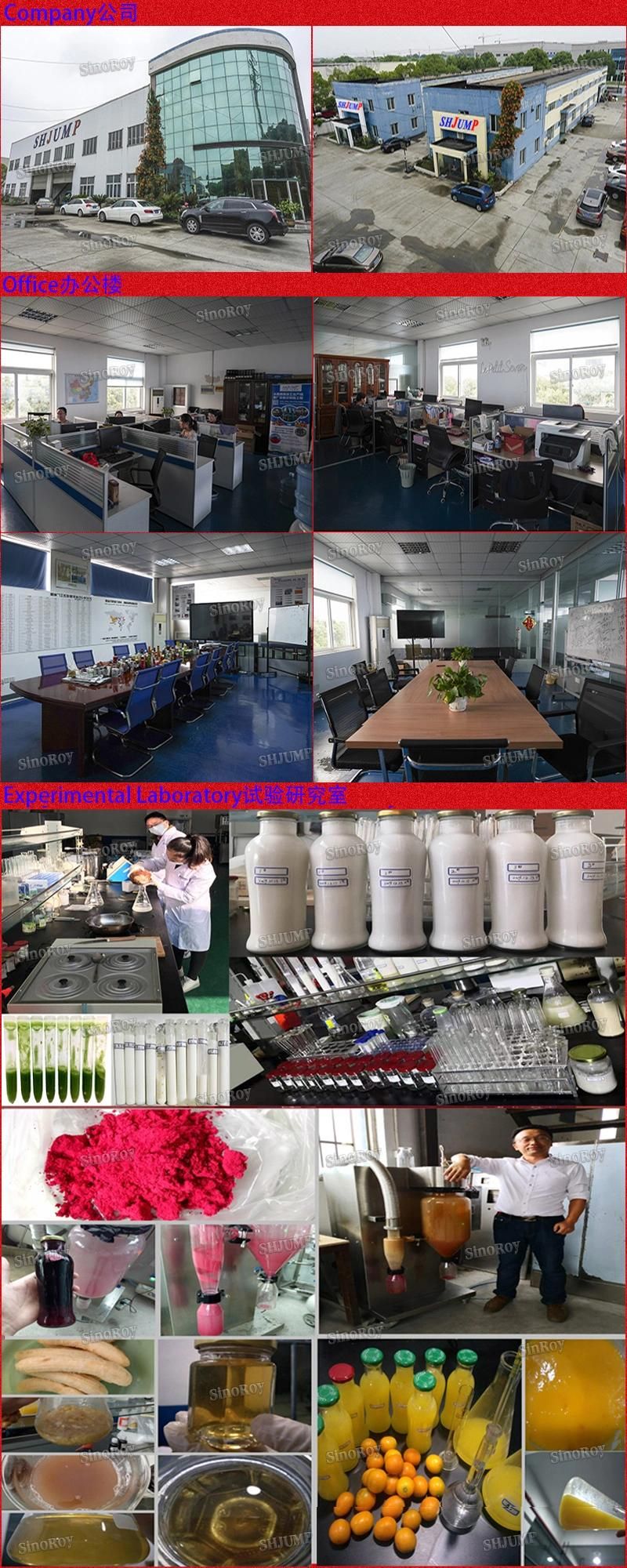

Company Show of Shanghai Jump Machinery & Technology Co., Ltd.

*************************************************************************
