• Model NO.：KQ
• Product：5000L Homogenizer 40MPa
• Capacity：200L,H--10000L,H
• Pressure：250bar to 700bar

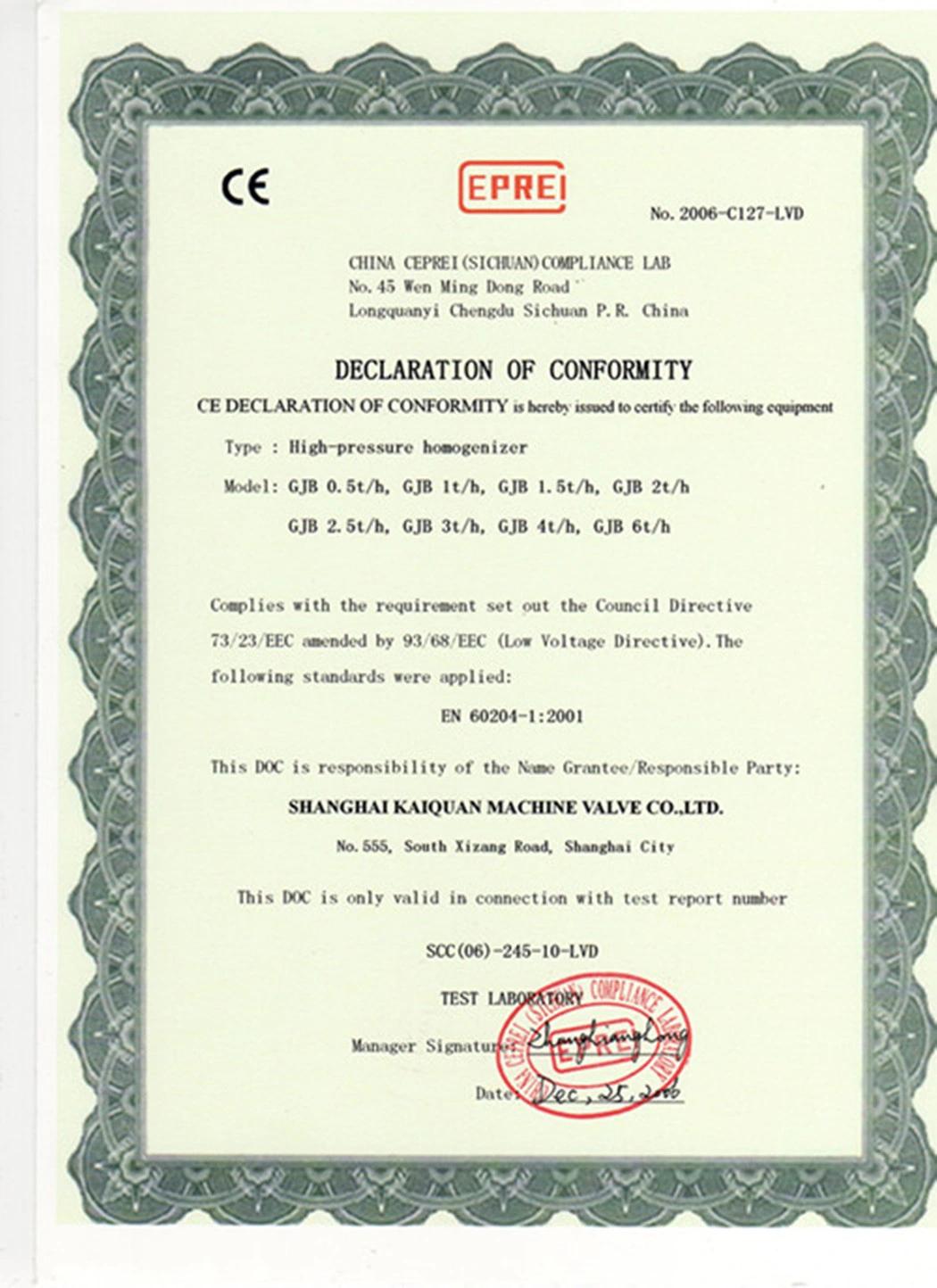

• Homogenizer Certificate：Ce
• Homogenizer Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• High Pressure Homogenizer：Customized Electricity Motor
• Motor：3phases
• Homogenizersize：Depending The Capacity
• Delivery：10 Days
• Factory：Shanghai

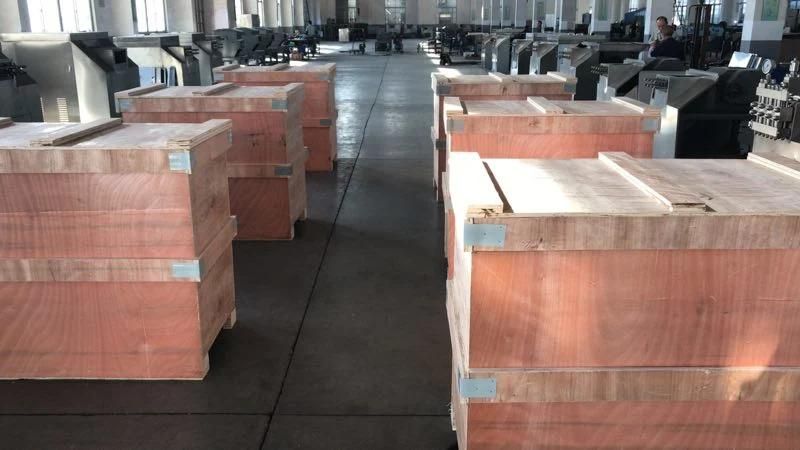

• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ Product 5000L Homogenizer 40MPa Capacity 200L/H--10000L/H Pressure 250bar to 700bar Homogenizer Certificate Ce Homogenizer Appication Milk , Juice, Beverage, Butter, Honey, Cream High Pressure Homogenizer Customized Electricity Motor Motor 3phases Homogenizersize Depending The Capacity Delivery 10 Days Factory Shanghai Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

5000L Milk Juice Cream Homogenizer 40MPa
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.




Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-40
Rated pressure(MPa)	25	25	25	25	25	25	40
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	50
Discharge pipe diameter(mm)	15	15	20	20	20	20	38
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

5000L Milk Juice Cream Homogenizer 40MPa
