Clj Hot Sale Rice Milling Machinery Gravity Double Body Paddy Separator Machine ...
HUNAN CHENZHOU GRAIN & OIL MACHINERY CO., LTD.- After-sales Service:Online Service
- Warranty:1 Year
- Type:Rice Mill
- Application:All
- Voltage:380V
- Appearance:Horizontal
Base Info
- Press Materials:Rice
- Condition:New
- Customized:Non-Customized
- Weight:1350kg
- Power:4kw
- Capacity:4.5-6.5t,H
- Transport Package:Wooden Case
- Specification:1980x1780x2100
- Trademark:CLJ
- Origin:China
- HS Code:84378000
- Production Capacity:3000units,Year
Description

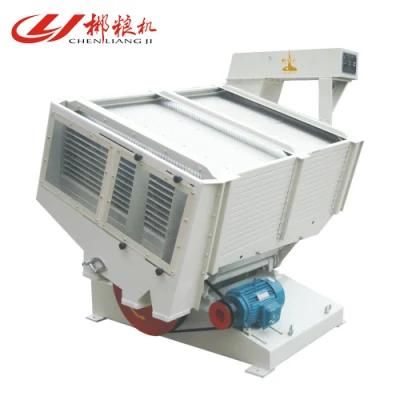

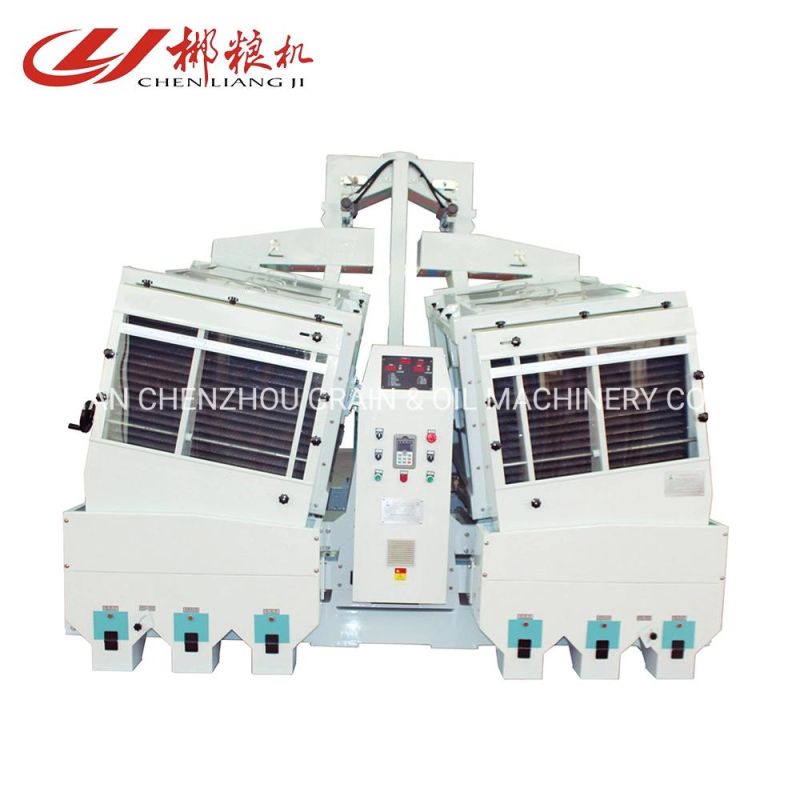

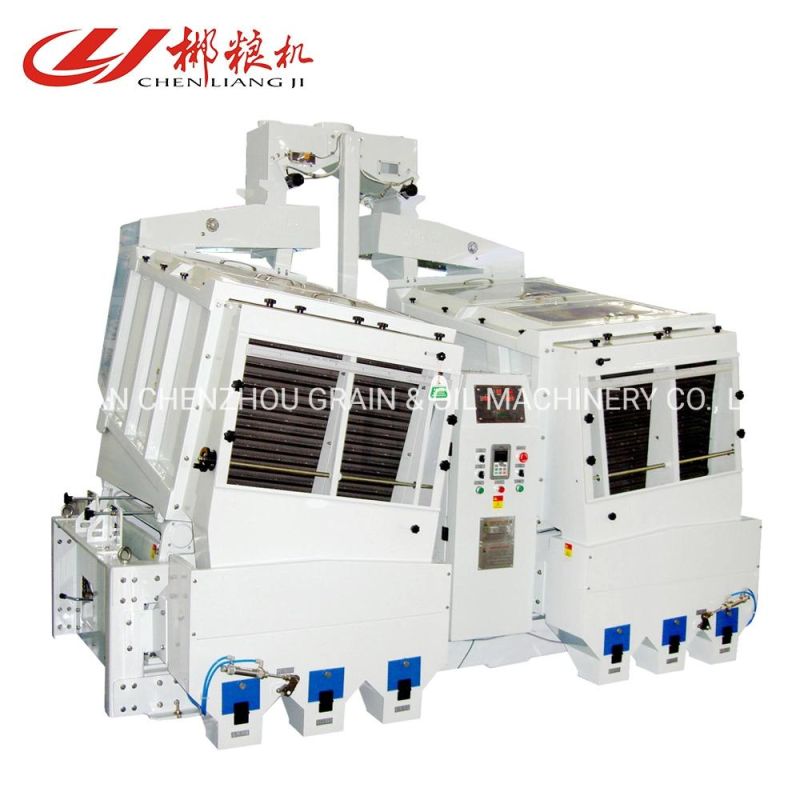

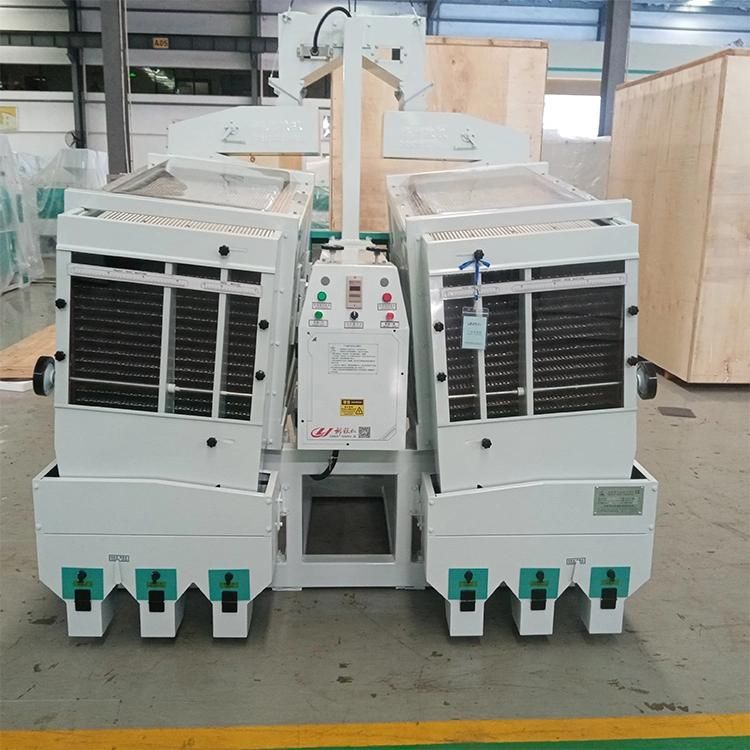

MGCZ series Gravity Paddy Separator is developed according to the physical characteristics differences of paddy and brown rice,such as the gravity, granularity, friction coefficient. The paddy mixture will be auto-graded gradually on the case of the separating sifter shaking. It makes the brown rice with large gravity sink and move side-upward onto the separating sifter, then outflow by carrying effect of bidirectional slantwise gibbous separating sifter. However the paddy with small gravity float on the superstratum of brown rice, and side-downward to the separating sifter and outflow, then to achieve the effect of separating according to the requirement of different quality.
Characteristic :
1.Rotary linkage motion pair:Changed from domestic traditional V shape blade rotary motion pair to bearing rotary motion pair.
2.With brand new itelligent control system.
(1).Use advances itelligent touch screen as control board,equip with Manual/Auto swith control system.
(2)Memory function of motor-driven feeding for feeding size and level.
(3)Automatic control system:auto start for incoming materials,auto shut for no materials .
Model Numerical value Parameters | MGCZ60×16×2 | MGCZ60×20×2 | MGCZ60B×20×2 | MGCZ80×20×2 | MGCZ80B×20×2 |
Equipped motor | Y132M-6-4Kw | Y132M-6-4Kw | Y160M-6-5.5Kw | Y132M-6-4Kw | Y160M-6-7.5Kw |
Net impurity output(non-glutinous rice Kg/h) | 4500~5500 | 5500~6500 | 9000~10000 | 7000-10000 | 10000~12000 |
Net impurity output(japonica rice Kg/h) | 5500~6500 | 7000~8000 | 10000~11000 | 8000-11000 | 12000~14000 |
Weight(kg) | 1700 | 1820 | 2300 | 2200 | 2850 |
Dimensions(length*width*height mm) | 2050×1780×2250 | 2050×1780×2250 | 2420×2170×2500 | 2440*1720*2250 | 2800×2210×2400 |
Characteristic :
1.Rotary linkage motion pair:Changed from domestic traditional V shape blade rotary motion pair to bearing rotary motion pair.
2.With brand new itelligent control system.
(1).Use advances itelligent touch screen as control board,equip with Manual/Auto swith control system.
(2)Memory function of motor-driven feeding for feeding size and level.
(3)Automatic control system:auto start for incoming materials,auto shut for no materials .
