• Model NO.：YZLXQ120
• Customized：Non-Customized
• Dimension(L*W*H)：1948*1522*1915mm
• Power(W)：15kw
• Place of Origin：Sichuan, China
• Automatic Grade：Automatic
• Color：Can Be Customized
• Usage：Rapeseed, Cottonseed, Soybean, Shelled Peanut, Fla
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Certification：ISO, BV, SGS
• Daily Processing Capacity：6.5ton,24h
• Transport Package：Fumigated Wooden Packing, or as Customers′ Request
• Specification：ISO BV SGS
• Trademark：GUANGXIN
• Origin：Sichuan, China
• HS Code：8479200
• Production Capacity：400 PCS,Month

Basic Info.

Model NO. YZLXQ120 Customized Non-Customized Dimension(L*W*H) 1948*1522*1915mm Power(W) 15kw Place of Origin Sichuan, China Automatic Grade Automatic Color Can Be Customized Usage Rapeseed, Cottonseed, Soybean, Shelled Peanut, Fla After-Sales Service Provided Engineers Available to Service Machinery Overseas Certification ISO, BV, SGS Daily Processing Capacity 6.5ton/24h Transport Package Fumigated Wooden Packing, or as Customers′ Request Specification ISO BV SGS Trademark GUANGXIN Origin Sichuan, China HS Code 8479200 Production Capacity 400 PCS/Month

Product Description

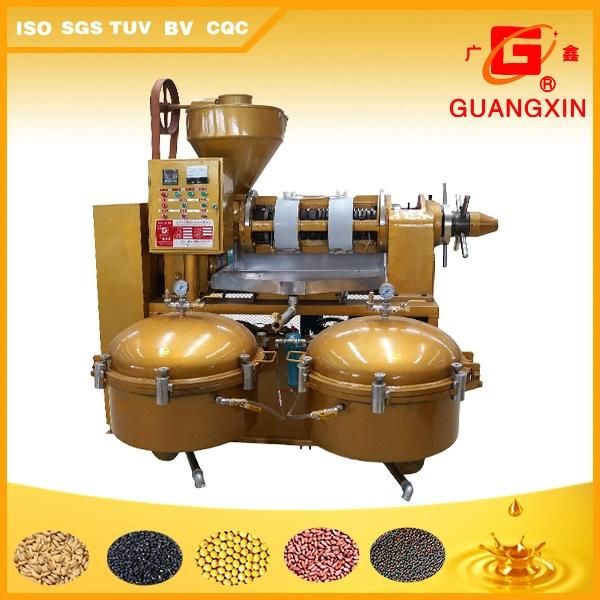

YZLXQ120 is Suitable for:



1. Many oil plants, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc.
2. Medium and small oil refinery, oil mill and private oil squeezing workshop.
3. Performs well both in cold pressing and hot pressing.

  YZLXQ120 Characteristics:

1. Has combined functions in one-the press cage's auto-warming up, oil plants' squeezing and crude oil's filtrating, therefore saves labor cost and time consumption, thus, raises working efficiency.
2. The function of auto-warming up the press cage has replaced the traditional way by squeezing residue cake, which shortened the preparation work and reduced the energy consumption. When the squeezing is suspended, the temperature can be maintained at a certain degree by this system.
3. The two air pressure filters equipped on the machine are making use of the compressed air as force, of which the filtrating ability is quite strong and the result is precise.
4. Day output 6.5ton/24h, oil content of residue cake ≤8%.

Quality Standard
Conform to JB/T9793·1-1999 of the People's Republic of China & ISO9001:2008.


Guangxin Oil Press After-Sale Service:
1. We supply spare all year around.
2. We supply technical solutions and helps for buyers at any time.

Packaging & Delivery

1. Packaging Detail:Standard packing for cold press cotton seed oil machine: fumigated wooden case packing or as per customer's requests2. Delivery Detail:15~20 days after order confirmed

Product Name	Spiral Oil Press
Model	YZLXQ120
Processing Capacity (t/24h)	≥6.5
Oil Content of dry cakes (%)	≤8.0
Power Required (KW)	11
Measurement (mm)	1948×1522×1915
Spiral axes rotate speed (r/min)	34
Weight (KG)	1115
