• Model NO.：HT-YYM180
• Power Source：Electric
• Automatic Grade：Automatic
• Transport Package：Fumigation-Free Wooden Case
• Specification：on the specification
• Trademark：HENTO
• Origin：Henan, China (Mainland)
• Production Capacity：150kg,H-180kg,H

Product Name

Equipment Parameter Description

Mixer

Installed capacity: 4kw

Production capacity: supporting

Size mm: 100*920*1240

Introduction

      High efficiency, uniform mixing, improve equipment production efficiency, improve mixing quality, used for mixing food powdery raw materials with a small amount of liquid raw materials.

Screw hoister

Power: 0.75kw

Dimensions: 2.5*0.6*1.8m

Weight: 300kg

Used for material transportation

70 Double-screw extruder 1 set

1,Installed capacity: 45kw

2,Main motor: 30kw (frequency conversion control)

3,Size: 3.2*0.8*1.8m

4,Output: 100-200kg/h

5,Voltage/Hz: 380V/50HZ

6,Oil pump motor: 0.37kw/2.5 pole

7,Water circulation system

8,Using advanced frequency conversion speed regulation technology, the power is stronger, the operation is more stable, and the power is saved. The forced lubrication system ensures a longer life of the transmission part, and the visual automatic temperature control system, self-cleaning function, etc. It is more stable when puffing products.

9,Material and brand: Lijiu main motor, Chint electric components, frame with moving wheels, guard plate made of stainless steel, forced lubrication system, automatic rotary cutting system, operation interface button control.

10,7. Screw material is 38CrMoAl, screw diameter is 70mm, double screw in the same direction.

11,8. Separate control cabinet control

12,9. The twin-screw machine is composed of a feeding system, an extrusion system, a rotary cutting system, a heating system, a transmission system, and a control system.

13,10. The main engine motor is a special Lijiu motor with an insulation class of F.

14,11. The passport is detachable, and the baffle is used to effectively separate the belt and the material to prevent the material from sticking to the belt.

15,The screw has a self-cleaning function, no need to disassemble the screw for cleaning when it stops.

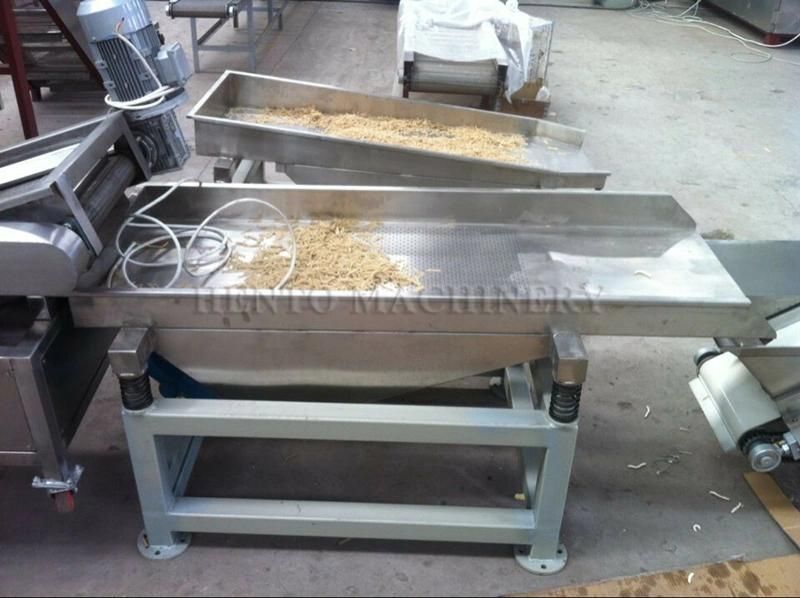

Vibrating screen

Power: 0.55kw

Dimensions: 1.0*0.8*1.0M

Weight: 200KG

Used for product vibration rice grains to prevent adhesion

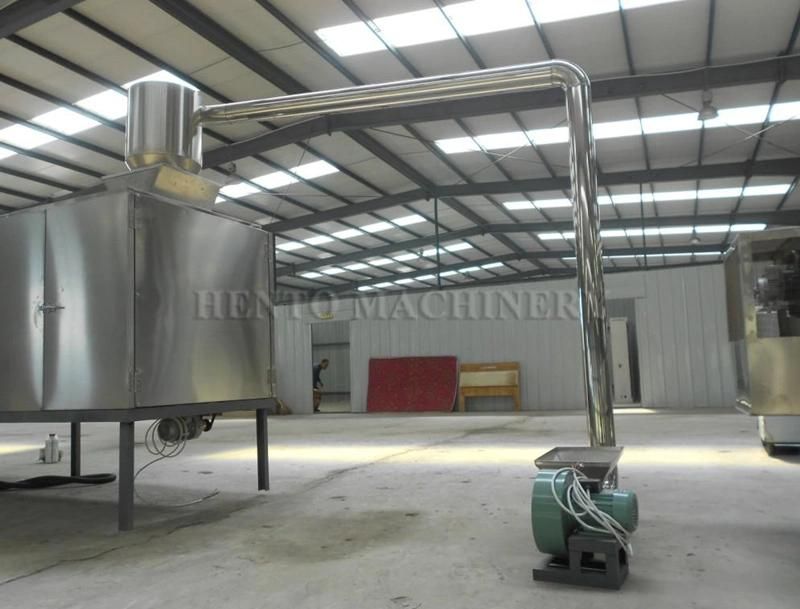

High Pressure Air conveyor

Installed capacity: 1.5kw

Production capacity: supporting

Size mm: 1200*530*2500 (Height includes pipe and Sacron size)

Food contact 304 material

Guard plate thickness 1.5MM

Introduction

     Conveying products to the tablet press (and oven) is mainly high quality, high reliability, and stable operation.

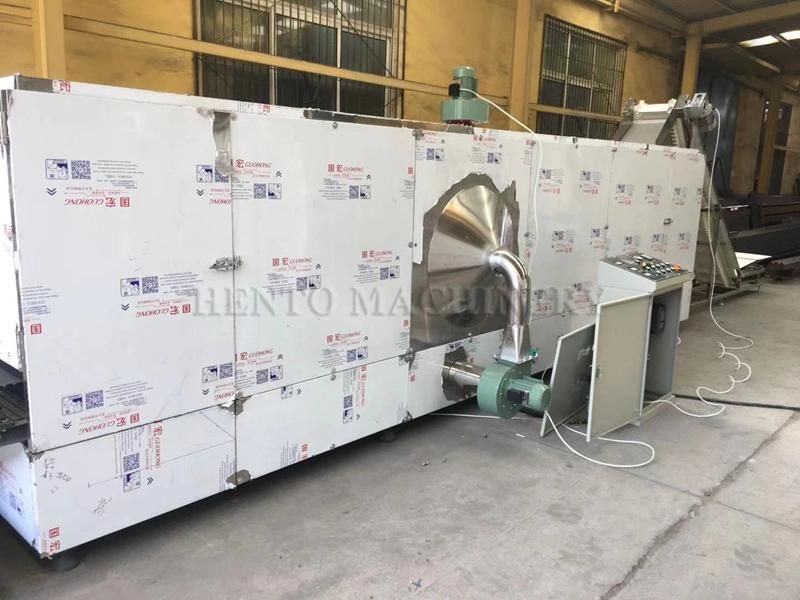

8 meters 5 layers hot air drying box

Installed power: 60kw

Production capacity: supporting

Size 8..2*1.5*2.7m

Introduction

     The cabinet is beautiful in appearance, sturdy and durable, and there is a good thermal insulation layer between the studio and the cabinet shell, which improves the temperature uniformity in the cabinet. Dry the product to get rid of excess water and increase the shelf life.

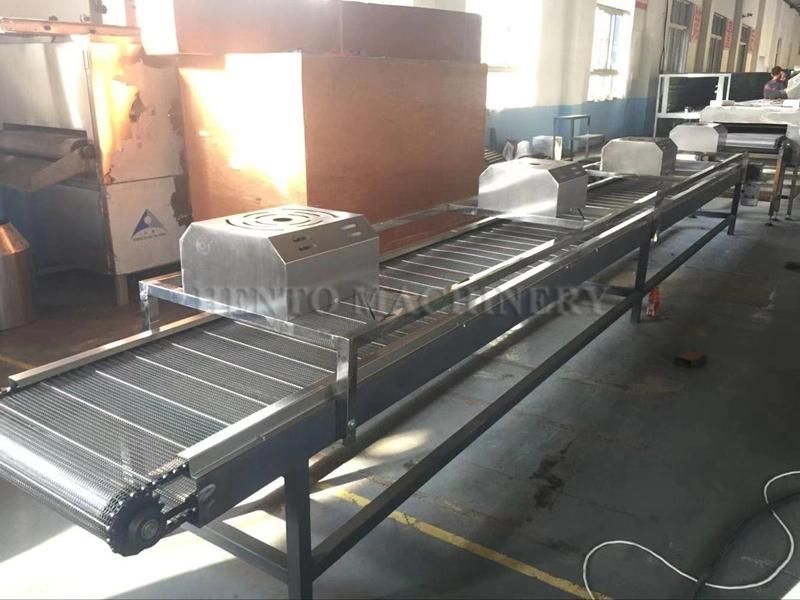

5m Cooler Machine

Power: 0.75kw

Dimensions: 5*0.6*0.8M

Weight: 200KG

3.Product Pictures

4.Packing & Shipping


5.Company Certificates


6.Our Customers


7.Contact Us
If you need further information, please contact us freely, we will do our best to cooperate with you.
