• Wattenty Perid：2years
• Model NO.：HT-LZ0.5
• Capacity：0.5t,Hour
• Material：Stainless Steel
• Spiral diameter：φ88mm
• Stainer aperture：φ0.6mm
• Weight：85KG
• Transport Package：Fumigation-Free Wooden Case
• Specification：780*320*860mm
• Trademark：Hento
• Origin：Henan, China
• Production Capacity：400sets,Month

Basic Info.

Model NO. HT-LZ0.5 Wattenty Perid 2years Capacity 0.5t/Hour Material Stainless Steel Spiral diameter φ88mm Stainer aperture φ0.6mm Weight 85KG Transport Package Fumigation-Free Wooden Case Specification 780*320*860mm Trademark Hento Origin Henan, China Production Capacity 400sets/Month

Product Description

Stainless Steel Industrial Juice Making Machine

1. Machine Introduction:
(1) Usage and Application
For squeezing fruit and vegetable juices such as tomatoes,pineapples,oranges Etc.
(2) Equipment structure and working principle (refer to the drawing)
1. Structure
This machine consists of such parts as the front support, feeding chute, spiral, stainer, juice container, the back support, waste outlet. The left of screw spindle is in the rolling bearing and the right is in the handwheel bearing. The motor pulls a pair of triangle belts to make the screw work.2.Working principleThe component of this equipment is screw. The diameter gradually increases along the direction of fruit waste outlet while the distance from the screw decreases, does squeezing the materials. The rotational direction of screw spindle is clockwise.
(3) Installation and Maintenance
1. The machine must be installed in the horizontal line and must be fixed by the screw.
2. Operation
When turning on the machine, the worker must regulate the press regulator to make the break become wide and then it will show.3. MaintenanceAfter squeezing the machine, it must be cleaned when turning on the machine, especially the dyeing machine. If the fiber is too much, the stain must be washed frequently.

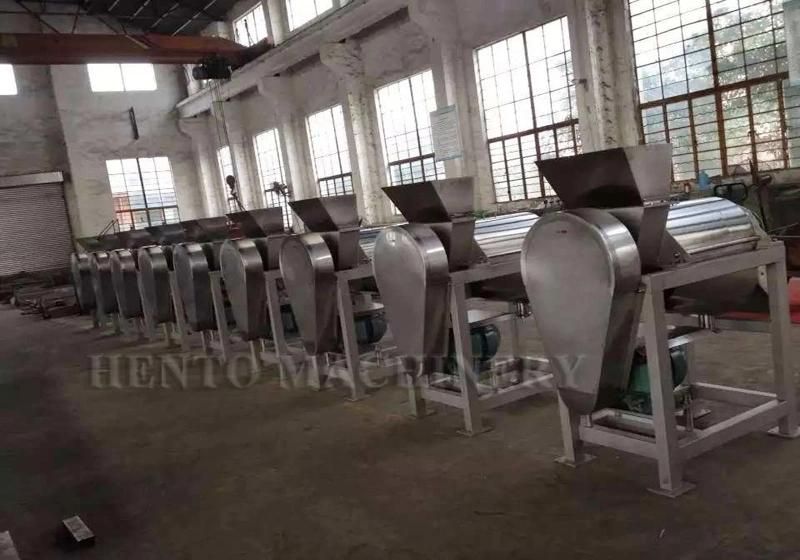

2.Machine Photos:


3.Technical Parameters:

Model	HT-LZ0.5
capacity	0.5 T/H
Spiral diameter	φ88mm
Stainer aperture	φ0.6mm
Motor power	1.5 KW
weight	85KG
Dimension	780*320*860mm

4.Company Certificate:

5.Packing&Delivery:

6.Our Customer:

7.Contact Information:
If you need further information, please contact us freely, we will do our best to cooperate with you.
