• Model NO.：RYG-3
• Water Tempering in The Jacket：40-65 Degree
• Nominal Capaciy：120kg*3
• Transport Package：Wooden Case
• Specification：2082*1036*1000
• Trademark：GUSU
• Origin：Suzhou
• HS Code：8438200000

Basic Info.

Model NO. RYG-3 Water Tempering in The Jacket 40-65 Degree Nominal Capaciy 120kg*3 Transport Package Wooden Case Specification 2082*1036*1000 Trademark GUSU Origin Suzhou HS Code 8438200000

Product Description

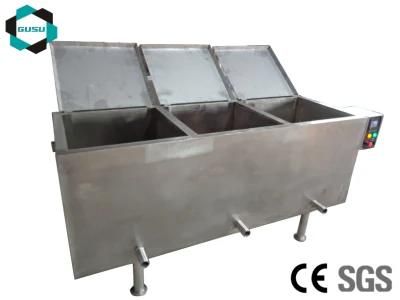

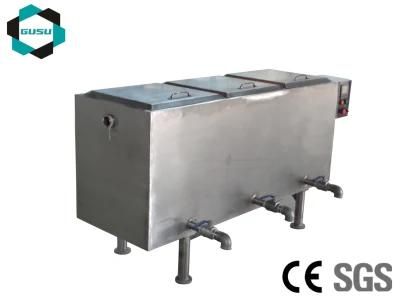

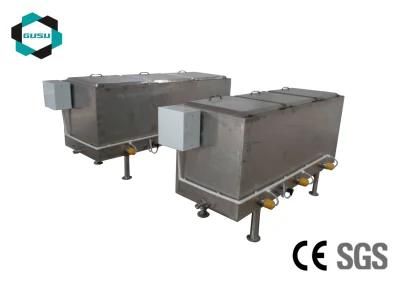

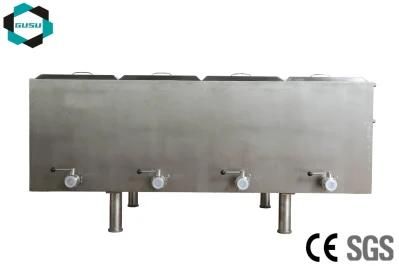

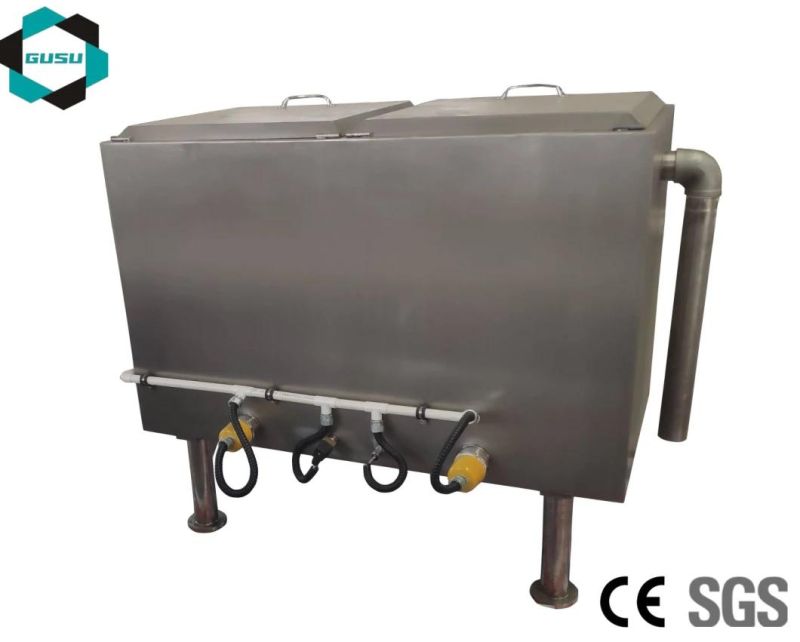

             Chocolate Melting Tank RYG-3

1.Product DescriptionThe chocolate fat melters were designed to continuously melt chocolate, compound, butter and fat, whether in chip/button or block form. They have a holding unit, which enables you to draw from the tank whilst still melting the product.  Features:
1) All tanks can be made to your preferred size. We can offer round or square tanks;2) Full stainless steel construction in either 304 or 316;
3) Temperature controllable;
4) Top driven gate type stirrers for round tanks;
5) It also has the function of preventing fat separation from chocolate tank;

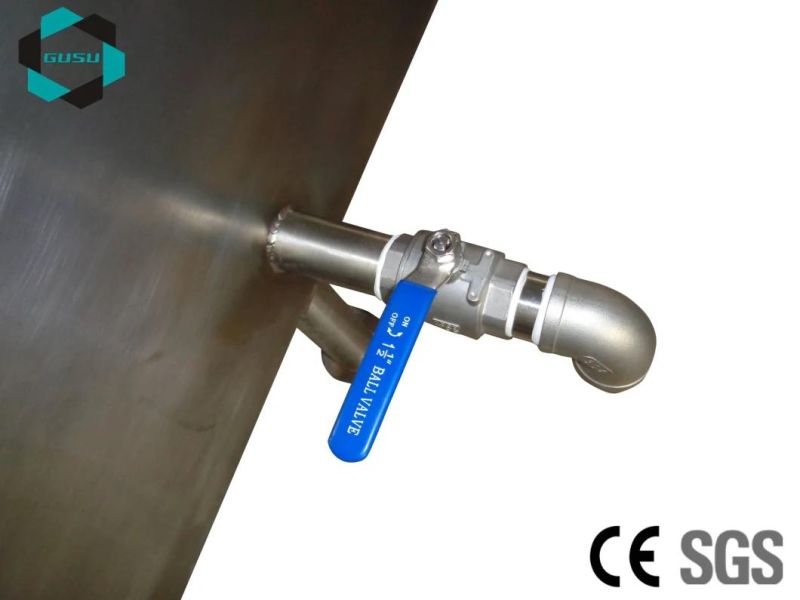

6) The discharge port has been updated from the traditional flange interface to the quick joint.

2.Technical Parameter

Model	Capacity (L)	Heating Power(kW)	Water Temperature in the Jacket(ºC)	Water jacket pressure	Dimension (mm)
RYG-3	120KG*3	9	40~65	≤1.5kg	2300*800*1000
RYG-4	250KG*4	12	40~65	≤1.5kg	2300*1250*1000
RYG500	500KG	12	40~65	≤1.5kg	φ1220*1500
RYG1000	1000L/h	15	40~65	≤1.5kg	2550*1670*1820






RAQ

1 How to Order
1. Customer send us an inquiry.
2. Confirm machine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to    yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better

2 About after-sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .

3 About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.

4 About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation
