Sb Series Rice Mill Sb-10d Sb-30 Sb-50 Mini Set Rice Milling Machine Rice Processing ...

Wuhan Acme Agro Tech Co., Ltd.
  • Warranty：1 Year
  • Type：Rice Mill

Base Info

  • Model NO.：SB
  • Application：Rice flour
  • Voltage：380V
  • Appearance：Vertical
  • Press Materials：Rice
  • Press Series：Second
  • Condition：New
  • Customized：Non-Customized
  • Name：Rice Mill
  • Model：Sb
  • Capacity：2300kg,H
  • Function：Rice Milling Machine
  • Power：Electric Motor or Diesel Engine
  • MOQ：5
  • Transport Package：Carton
  • Specification：1070x760x1760mm
  • Trademark：no
  • Origin：China
  • HS Code：65000
  • Production Capacity：40000

Description

Basic Info.

Model NO. SB Application Rice flour Voltage 380V Appearance Vertical Press Materials Rice Press Series Second Condition New Customized Non-Customized Name Rice Mill Model Sb Capacity 2300kg/H Function Rice Milling Machine Power Electric Motor or Diesel Engine MOQ 5 Transport Package Carton Specification 1070x760x1760mm Trademark no Origin China HS Code 65000 Production Capacity 40000

Product Description

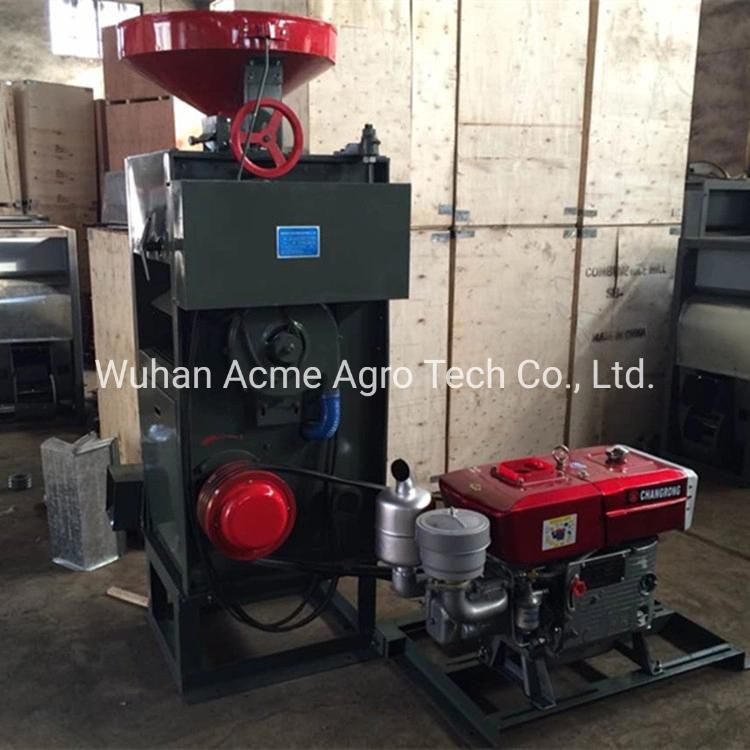

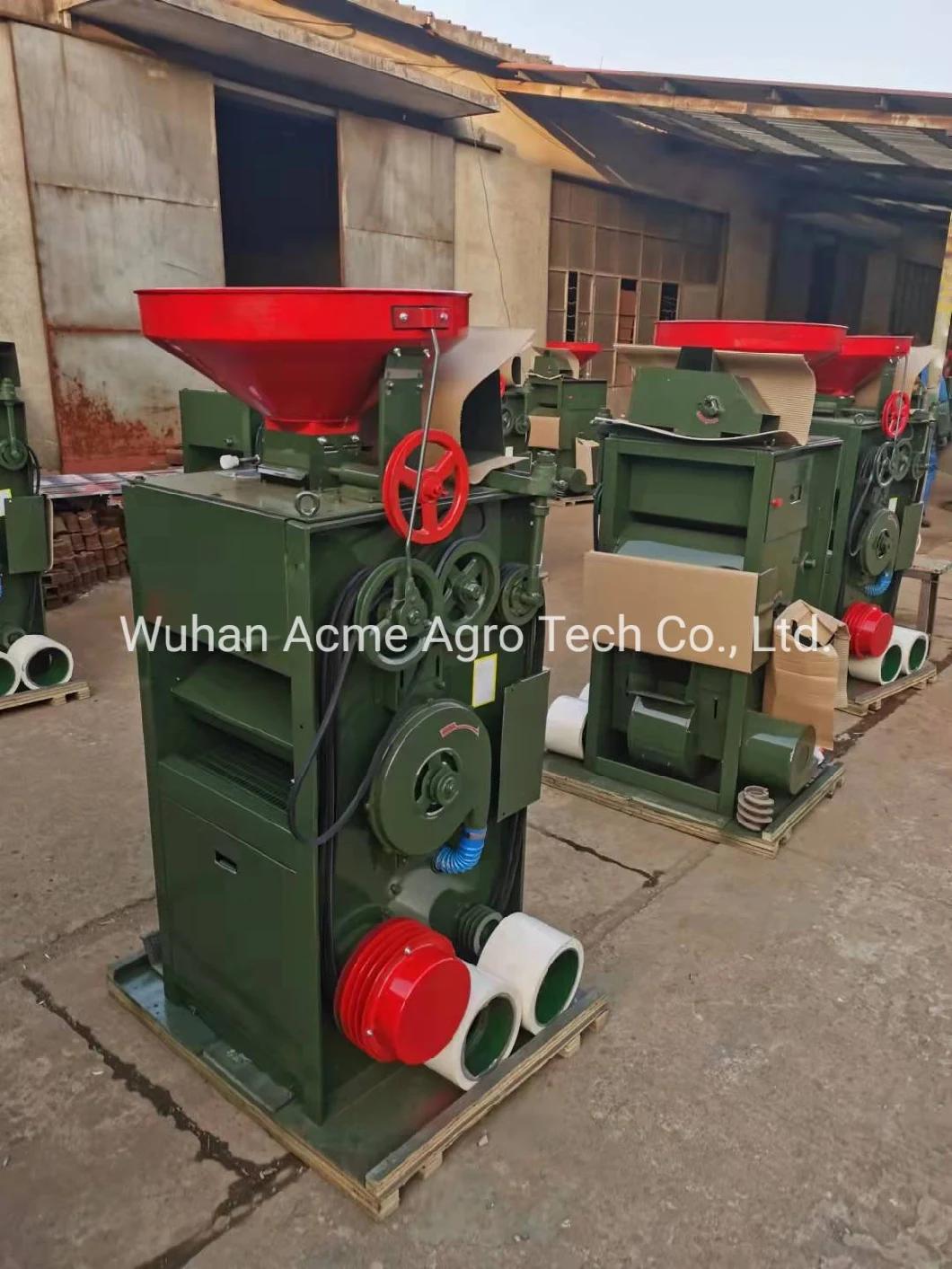

 SB Series Rice Mill SB-10D  SB-30 SB-50 Mini Set Rice Milling Machine
Rice Processing Machine
Sb Series Rice Mill Sb-10d Sb-30 Sb-50 Mini Set Rice Milling Machine Rice Processing Machine

Product Application

The price mini combine rice mill is comprehensive equipment for paddy rice processing. Rice goes into machine through vibrating screen and magnet unit, and then forward under rubber roller for hulling, winnowing and air blowing to husk.
The price mini combine rice mill may complete all the processing works from cleaning grains, hulling to rice husking in succession. As to husk, chaff, blighted grain as well as polished rice, they are all pushed out of varied kinds of rice processing machines. For instance, it is arranged with a comprehensive view of situation and is designed rationally.


Working principle
Paddy firstly enters into the price mini combine rice mill through vibrating sieve and magnet device, then passes rubber-roller for hulling. After air blowing and air jetting to the milling room, the paddy finishes the process of husking and milling in succession. Then husk, unripe paddy, and white rice are expelled out of the machine respectively. The dust collector collects the fine rice husk

Features
1). Can remove paddy husk , whitening rice , crush rice husk at one time
2). It is easy to operate with less power consumption and high productivity.
3). with Iron roller that the rice has low breakage
4). Low temperature when working


Technical parameters
ModelSB-5SB-10DSB-30SB-50
Capacity (kg/h)400-600600-9001000-15001800-2300
Rubber roller180x120mm233x152mm283x180mm254x254mm
Diesel engine power10hp15hp18hp30hp
Dimension (mm)690x670x1400780x760x17001070x760x17601050x960x2150
Weight (kg)130195320630
