• Application：Peanut, Broad Bean
• Customized：Customized
• Total Power：15.6kw
• Weight：500kg
• Electricity Requirement：380V,220V 50Hz,60Hz 3phase
• Production Load：800-1000kg,H
• Suitable for：Green Peas, Broad Beans, Peanuts, Sunflower Seeds,
• Material：Stainless Steel 304#
• Operating Mode：Automatic
• Name：High Quality Automatic Coating Machine
• Transport Package：Wooden Box
• Specification：2m * 2m * 2.5m
• Trademark：Handyware
• Origin：Foshan
• HS Code：8438800000
• Production Capacity：600~1200kg,H

Basic Info.

Application Peanut, Broad Bean Customized Customized Total Power 15.6kw Weight 500kg Electricity Requirement 380V/220V 50Hz/60Hz 3phase Production Load 800-1000kg/H Suitable for Green Peas, Broad Beans, Peanuts, Sunflower Seeds, Material Stainless Steel 304# Operating Mode Automatic Name High Quality Automatic Coating Machine Transport Package Wooden Box Specification 2m * 2m * 2.5m Trademark Handyware Origin Foshan HS Code 8438800000 Production Capacity 600~1200kg/H

Product Description

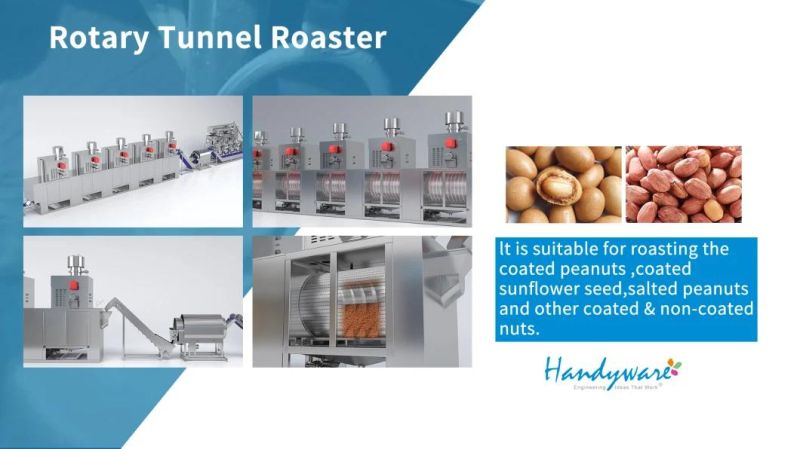

Rotary Tunnel Roaster RTR1400
*Capacity 80-100kg/h
*Each RTR1400 has the following:
 -Baltur (Italy) LPG burner
 -2 sets of air pump
 -CIP for easy cleaning of food chamber
 -Food chamber includes special designed rotary tunnel drum
 -Body, cover, tunnel drum are stainless steel 304
*Roasting time around 25mins
*Temperature 140-160deg C
*Drum length about 1300mm
*Each unit height about 2.8m
*40,000kcal/h burner for each unit
It is suitable for roasting the coated peanuts,coated sunflower seed,salted peanuts and other coated%non-coated nuts.





Introduction
   Automatic coating machine is responsible for peanut-like product coating, such as broad bean, green pea, sunflower seed, even small fish. It contains a electric cabinet, which can monitor entire coating process. User just need to pour in peanut-like products and flour, then every other thing is left to automatic control system. Due to its unique characteristics like easy maintenance, diversification and low cost, it seems very popular in the market, also because its unique characteristics, this machine is frequently used as a core part of a processing line, for example, peaut coating line, green pea coating line, broad bean frying line. Whenever you wanna add a coating line, this machine should be a major choice in your hand.

Customer of Handyware Engineering


Exhibition




Patent Certificate:





Before  sale services:

1. Provide initial  standard machine configurations.
2.According to the clients' special requirment,offer customized and competitively priced solution. Where necessary,offer customer with options .
3.Help client design the factory and offer professional advice ,provide free drawing for the factory layout.
4.Welcome to visit our factory for machine viewing or trial.

Services during the sales:

1.Provide customer with regular production status update.
2. Invite customer for inspection of machine before delivery.

After sale services:

1.Oversea install of the equipment.
2.Provide the basic food formulation.
3.Operation/Service/Maintenance Manual: Provided in English.
4. We will provide engineers to client's factory for the installation and training . The client is required to provide accomodation,food, round-trip ticket, visa,transportation fee and engineer fee of $80 /day/engineer.

Design of capacity as per needs.
