• Model NO.：RPS-CM20
• Application：Ice Cream, Candy, Chocolate, Popcorn, Chips, Biscuit, Donut
• Customized：Customized
• Frequency：20kHz
• Power：6000W in Max
• Horn Material：Titanium
• Cutting knives：3 PCS in Max
• Transport Package：Woodern Box
• Specification：2400*1200*1800mm
• Trademark：Rps-sonic
• Origin：China
• HS Code：8515900090
• Production Capacity：200PCS,Month

Basic Info.

Model NO. RPS-CM20 Application Ice Cream, Candy, Chocolate, Popcorn, Chips, Biscuit, Donut Customized Customized Frequency 20kHz Power 6000W in Max Horn Material Titanium Cutting knives 3 PCS in Max Transport Package Woodern Box Specification 2400*1200*1800mm Trademark Rps-sonic Origin China HS Code 8515900090 Production Capacity 200PCS/Month

Product Description

20Khz Fully Automated Ultrasonic Cake Cutting Machine

Item	paramter
Dimension	2400*1200*1800mm
Weight	600kgs
Power	6Kw in max, depending on the cutter numbers
speed	60times/min in max
Cutting knifes	3 pcs in max
Frame material	304 stainless steel
function	food cutting/ rubber cutting

What's the principle of ultrasonic cutting?


The principle of an ultrasonic cutter is completely different from conventional one. It uses the energy of ultrasonic to melt the material to be cut. Therefore, the ultrasonic cutting does not require a sharp cutting edge, nor does it require a large pressure, and does not cause any chipping or breakage. At the same time, since the cutting blade is subjected to ultrasonic vibration, the frictional resistance is particularly small, and the material to be cut is not easily adhered to the blade. This is particularly effective for cutting viscous and elastic materials, frozen materials such as food, rubber, etc., or objects that are inconvenient to apply pressure.

The basic structure of the ultrasonic cutting machine is an ultrasonic transducer, a horn, a cutting blade (tool head), and generator. The ultrasonic generator converts the commercial power into a high-frequency high-voltage alternating current and transmits it to the ultrasonic transducer. An ultrasonic transducer is actually equivalent to an energy conversion device that converts input electrical energy into mechanical energy, ie, ultrasonic waves. Its manifestation is that the transducer moves back and forth in the longitudinal direction. The frequency of the telescopic motion is equivalent to the frequency of the high frequency alternating current supplied by the driving power source. The role of the horn is to fix the entire ultrasonic vibration system and to amplify the output amplitude of the transducer. The cutting blade (tool head) further enlarges the amplitude on the one hand and focuses the ultrasonic wave. On the other hand, the ultrasonic wave is output, and the ultrasonic energy is concentratedly input to the cutting portion of the material to be cut by using a similar cutting edge of the cutting blade. Under the action of huge ultrasonic energy, this part softens and melts instantly, and the strength is greatly reduced. At this time, as long as a small cutting force is applied, the purpose of cutting the material can be achieved.

Similar to conventional cutting, the basic components required are a cutter and an anvil, and the ultrasonic cutter has two basic structures. Depending on the location of the ultrasonic application, we may wish to divide it into an ultrasonic cutter cutter and an ultrasonic cutter cutter.

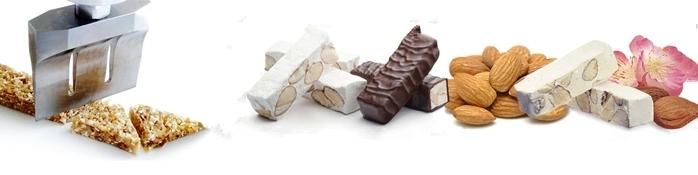

The ultrasonic cutter cutter directly loads the ultrasonic energy onto the cutter, and the cutter becomes a cutter with ultrasonic waves. When cutting the material, the material is mainly softened and melted by the ultrasonic energy, and the cutting edge of the cutter only serves as the slit positioning, the ultrasonic energy output, and the separation material. This cutting method is suitable for cutting thick, thick, long, etc. materials that are inconvenient to set the cutting board. Such as raw rubber output from the rubber mixer, pipe cutting, frozen meat, candy, chocolate cutting, printed circuit boards, or hand-held cutting machines.

The basic structure of the ultrasonic cutting board cutter is similar to that of the ultrasonic cutter cutter, except that the ultrasonic output portion is not a cutter but a standard ultrasonic flat mold. Here, the mold is equivalent to a cutting board. However, this is a cutting board that is used for ultrasonic vibration. The cutting knife can still be used in the traditional shape, but the sharpness of the cutting edge is reduced, and the life of the cutting knife is greatly extended.
