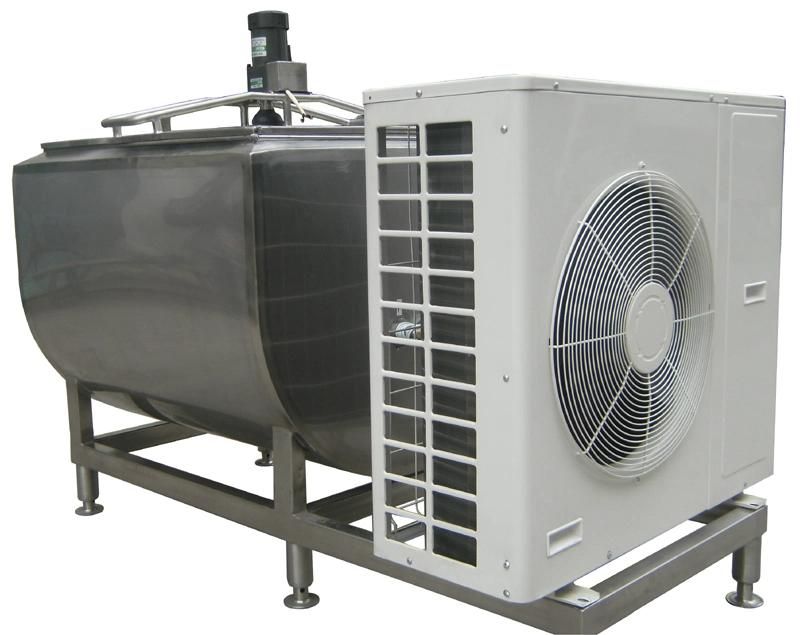

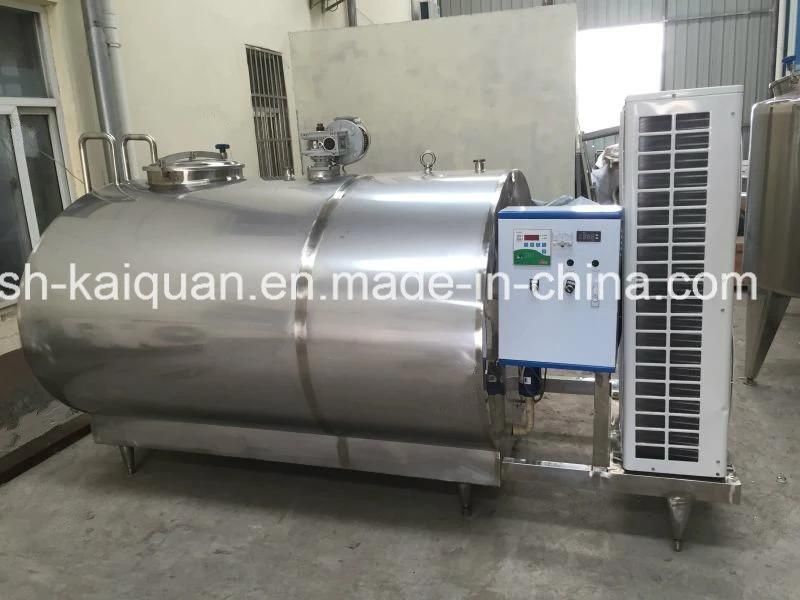

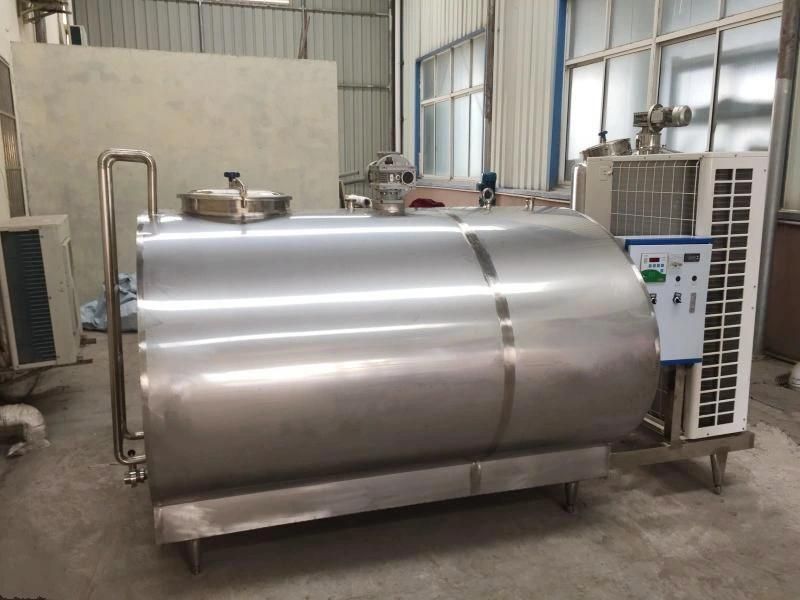

Food Grade Stainless Steel Insulation Milk Cooling Tank Price

Shanghai Kaiquan Machine Valve Co., Ltd.
  • Process：Frozen and Chilled
  • Power Source：Electric
  • Certification：CE, MET, CSA, UL, SA8000, ISO9001
  • Automatic Grade：Automatic
  • Application：Milk, Yogurt
  • Customized：Customized

Base Info

  • Model NO.：KQ
  • Name：Food Grade Stainless Steel Insulation Milk Coolin
  • Refrigerant：R404A , R22
  • Compressor：USA Copeland
  • Fresh Bulk Milk Cooling and Storage：300litres to 10000litres
  • PU Insulation Wall Thickness：80mm
  • Outside Shape：Vertical and Horinzontal
  • Milk Tank Material：Sanitary Stainless Steel 304,316
  • Insulation Wall：Polyurethane Foam
  • Milk Tank Function：Cooling and Storage Fresh Milk
  • Electricity：Make to Your Order
  • Mixer：Equiped
  • Motor Brand：Siemens ,ABB ,China Brand
  • Packing：Wooden Box
  • Working Life：More Than 10 Years
  • OEM：Yes
  • Transport Package：Standard
  • Specification：ISO
  • Trademark：KQ
  • Origin：China
  • HS Code：841869909
  • Production Capacity：1000

Description

TypeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-6T
 Laying typeKQ-8T
 Laying typeKQ-10T
 Laying typeCapacity(L)10002000300050006000800010000LRefrigerating Output(W)9000150002200037000380005500074000Refrigerating  Fluid(R)R22R22R22R22R22R22R22Insulating Property ≤1ºC/4h≤1ºC/4h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/6hAgitator Speed 36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.85.97.510.5111319.2Voltage380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T 0.75T0.9T1.1T1.3T1.8T2.05TFood Grade Stainless Steel Insulation Milk Cooling Tank Price
Food Grade Stainless Steel Insulation Milk Cooling Tank Price
Food Grade Stainless Steel Insulation Milk Cooling Tank Price

 producing milk cooling tanks, collection centres, tubular coolers, milking machine components, pasteurisers, ice
Food Grade Stainless Steel Insulation Milk Cooling Tank Price
