• Model NO.：Granular Swing Oven
• HS Code：2815110000
• Production Capacity：5000,Year

Basic Info.

Model NO. Granular Swing Oven HS Code 2815110000 Production Capacity 5000/Year

Product Description

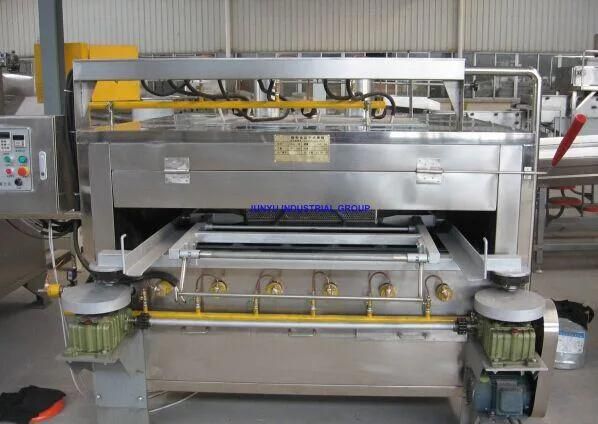

Granular Swing Oven



Sugar coating baking process
The sugar-coated beans are poured into the oven at one time, and the sugar-coated beans are cooked and then manually discharged. Electric and gas heating thermostat system, automatic setting temperature swing rotary grill.

Dimensions: electricity type, 2.2*2*1.4 meters
Gas type, 2.3*2.2*1.5 meters.

-The output: 80--100kg / h or so.
-Speed motor power 0.75kw voltage 380v 50hz.
  (Inner frame size: 1200*1200*150mm).
-Working temperature: 180-220 °C electric heating power 25kw (about 10-10 cubic meters of gas when using gas).
-The number of operations: 40-60 times/minute (speed motor).

Material
Configuration: inner casing 304 stainless steel 1.2mm bending; inner screen frame carbon steel 50 angle steel flat steel inner net 304 stainless steel, outrigger carbon steel bending 5mm; outer casing 1.2mm plate, frame 60 angle steel, carbon steel, eccentric disk 45 carbon Steel 12mm, wpo70 reducer; base 45 carbon steel, bearing 6204; 100mm rock wool board insulation. Stainless steel finned electric heating tube.
Inner frame size: 1200*1200*150mm.
Inner frame size: 900*900*150mm.
