• Model NO.：GY-S35
• Delivery：Within 60days
• Turn-Key Project：Yes
• Transport Package：Container
• Specification：SUS304
• Trademark：GENYOND
• Origin：China
• HS Code：84798990
• Production Capacity：5000sets,Year

Basic Info.

Model NO. GY-S35 Delivery Within 60days Turn-Key Project Yes Transport Package Container Specification SUS304 Trademark GENYOND Origin China HS Code 84798990 Production Capacity 5000sets/Year

Product Description

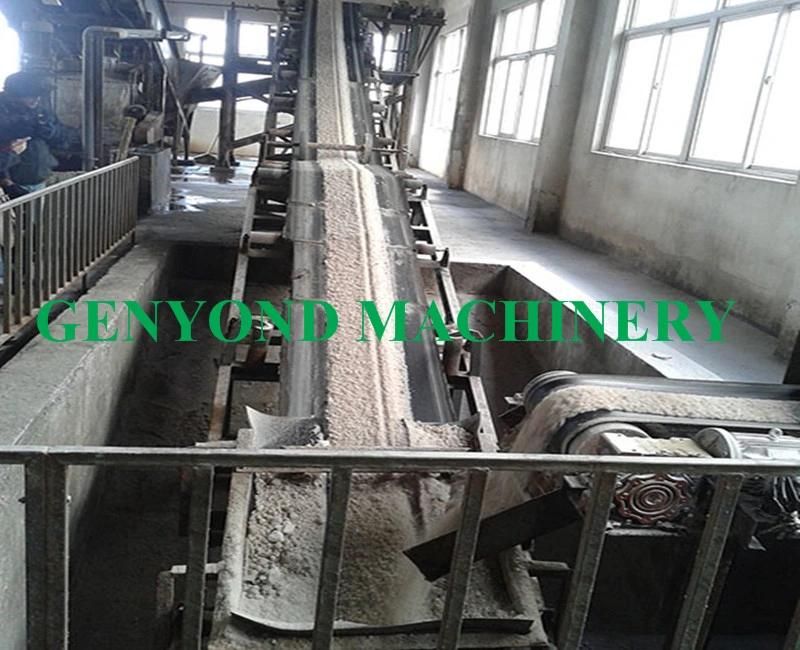

Industrial salt refined machine include: stainless steel elevator, mixer, conveyor, crusher, salt washing machine, iodize machine,

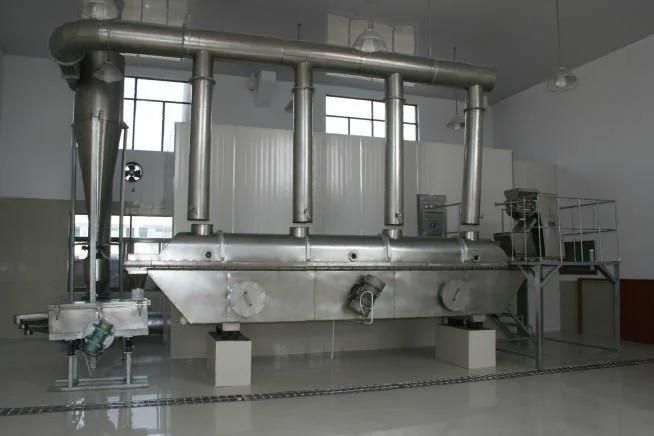

centrifuge and drying machine, dust remover, packing machine and etc.
For the capacity of the production line, we can produce based on customers' requirement. The capacity is 2-10ton/hour.


Advantage of our equipment line:
1) The high quality refined salt product has high purity, shiny appearance, good free liquidity and stable iodine content.
2) Low loss, the loss of NaCl is under 10%.
3) Low energy consumption and investment.
4) Equipment has long service life, easy to operate and maintain.

PP Series salt refiner machine is a kind of perforated basket centrifuge, both continuous and effective.
The mixture to be separated is fed
through the feeding pipe and the distributor continuously and evenly into the first stage basket.
Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .
The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore,
the desired humidity of the cake can be guaranteed. Afterwards, the cake is  continuously discharged out of the basket. In case of high purity for the solid product, the effective washing can be
carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.


Basket diameter (mm)	290/360	438/500	560/630
Stroke of pusher mechanism (times/min)	40-80	40-80	70-80
Machine speed (rpm)	2500	2000	1360
Operative oil pressure (Mpa)	2.5	2	8
Motor of oil pump (kw)	5.5-7.5	22	13-30
Main motor (kw)	11-15	37-45	55
Output (t/h)	5-7	12	20
Sieve slot	To be decided
Operation temp. (°C)	Below 105	Below 105	Below 105
Overall dimension (mm)	2346*1090*1006	3660*1420*2078	3127*1700*1955
Weight (kg)	2600	4400	4860
