• Model NO.：LPG
• HS Code：842119

140-350 automatic controlOutlet Temperature °C80-90Max. Evaporation Capacity (kg/h)52550150200-2000Atomizing Methodcompressed air drivemechanical driveRevolution (r.p.m)250001800018000150008000-15000Revolution (r.p.m)
Diameter of Atomizing Disc (mm)50120120150180-240Heat Sourceelectricitysteam+electricitysteam+electricity,oil, oil fuel, hot air furnaceMax. Heating Power (kw)9367299 Overall Dimensions(L×W×H)(m)1.8X0.93X2.23X2.7X4.263.5X3.5X4.85.5X4X7depends on actual situation
 Dried Powder Restoring Rate (%)≥95Note: the amount of water evaporation depends on the factors of material characteristics, inlet and outlet temperature. Water evaporation curve is shown above (for reference of selection) when the outlet temperature is 90ºC. With the constantly updated, relevant parameters will change without prior notice.

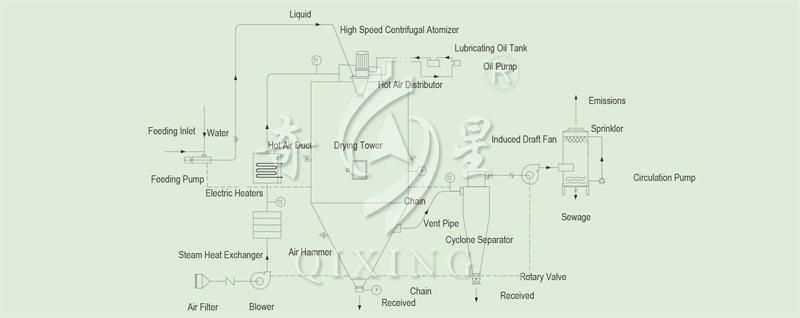

STRUCTURE SCHEMATIC
