• Model NO.：A4
• LED：0.1
• Camera：Japan
• Ejector：Matiris
• Output(T/H)：5-10t
• Voltage(V)：220V 50Hz
• Power(Kw)：3.1
• Consumption(L/Min)：1800-3800
• Weight (Kg)：1400
• Dimension(L*W*H)：2325*1590*1840
• Transport Package：Wooden
• Specification：led
• Trademark：pinyang
• Origin：China
• HS Code：84378000
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. A4 LED 0.1 Camera Japan Ejector Matiris Output(T/H) 5-10t Voltage(V) 220V 50Hz Power(Kw) 3.1 Consumption(L/Min) 1800-3800 Weight (Kg) 1400 Dimension(L*W*H) 2325*1590*1840 Transport Package Wooden Specification led Trademark pinyang Origin China HS Code 84378000 Production Capacity 1000PCS/Year

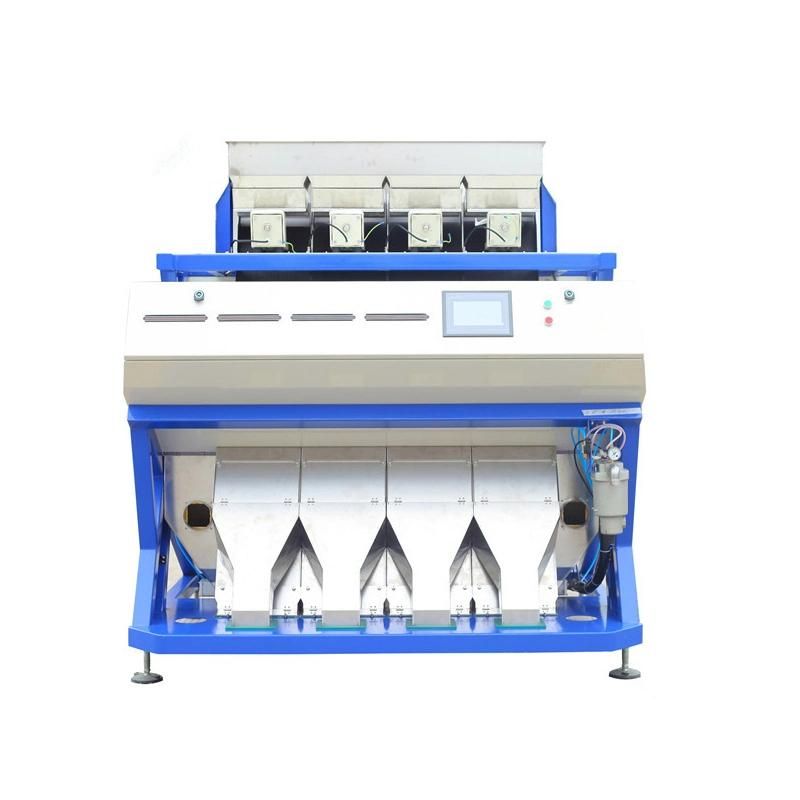

Product Description

Features:

The high speed DSP techonlogy provides the sorter with fast detection and high identification rate.

High speed air valve is used to ensure quick penponse,low power consumption and long service life.

Failure alarm automatic and modular construction makes easy repair.

adopting 2048 pixel high-speed ccd camera and photo processing technology can process photo parameters ever faster .

Specifications:



Model	A1	A3	A5	A6	A7	A8	A10
Throughput(T/H)	0.5-2	2.5-6.5	4.0-10	5-13	5.5-17.5	6.5-20	8.5-25
Accuracy	≥99.98%	≥99.98%	≥99.98%	≥99.98%	≥99.98%	≥99.98%	≥99.98%
Voltage(V)	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ
Power(KW)	1.5	2.2	2.8	3.1	3.4	4.0	6.0
Weight(KG)	500	800	1200	1400	1600	1800	2600
Dimension(mm)	825*1590*1840	1425*1590*1840	2025*1590*1840	2325*1590*1840	2625*1590*1840	2925*1590*1840	4426*1568*1862
