• Model NO.：ZT
• Model：200L
• Power：7.5kw
• Material：Stainless Steel
• Heating Method：Steam Heating
• Thickness：4mm
• MOQ：1set
• Polish：300 Mesh
• Jacket：Double
• Quality：Excellent
• Control：Button Control Panel
• Transport Package：Ply Wood Case
• Specification：Stainless steel
• Trademark：ZHITONG
• Origin：Guangzhou
• HS Code：8479820090
• Production Capacity：5000

Basic Info.

Model NO. ZT Model 200L Power 7.5kw Material Stainless Steel Heating Method Steam Heating Thickness 4mm MOQ 1set Polish 300 Mesh Jacket Double Quality Excellent Control Button Control Panel Transport Package Ply Wood Case Specification Stainless steel Trademark ZHITONG Origin Guangzhou HS Code 8479820090 Production Capacity 5000

Product Description

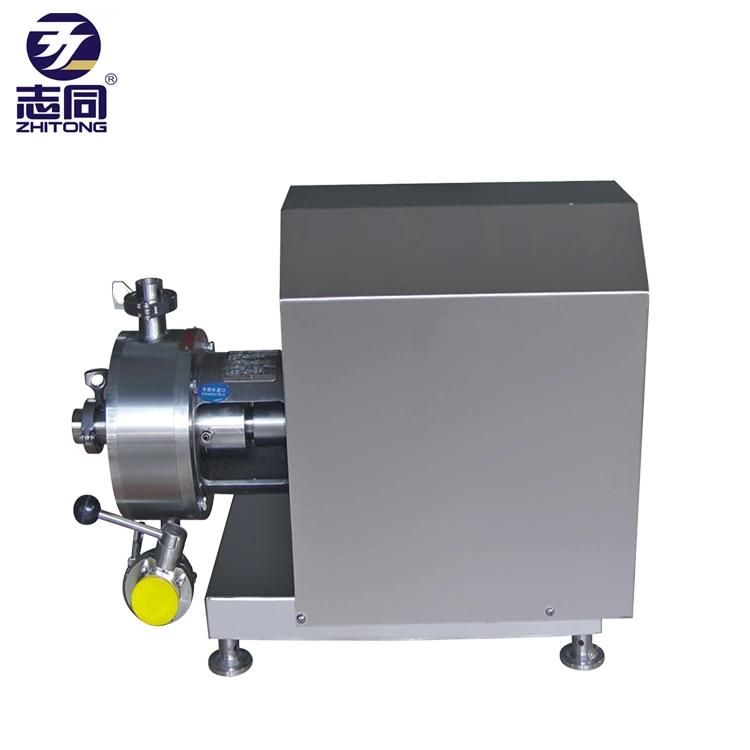

Pipeline type high shearing dispersion emulsifying machine



Model	Power(Kw)	Rotation speed (r/min)	Capacity  (m3/h)
TRL1-80	1.5	2900	0-1.5
TRL1-100	2.2	2900	0-3
TRL1-120	4	2900	0-4
TRL1-140	5.5/7.5	2900/2900	0-5
TRL1-165	7.5/11	2900/2900	0-8
TRL1-180	11/15	2900/2900	0-12
TRL1-185	15/18.5	2900/2900	0-18
TRL1-200	22	2900	0-25
TRL1-210	30	2900	0-35
TRL1-230	45	2900	0-50
TRL1-245	55	2900	0-75
TRL1-260	75	2900	0-90
TRL1-275	90	2900	0-110
TRL1-280	132	2900	0-130

Mixing dissolving: Soluble solid or liquid blends together with liquid in the state of the molecule or the gum
Crystallization powder, salt, sugar, ether sulphate, abrasive, hydrolysising colloid, CMC thixotropy, rubber, natural and synthetic resin.
Dispersed suspension: Unsoluble solid or liquid forms finer partical blended solution or suspended solution
Catalyst, flatting agent, pigment, graphite, paint coating, alumina, compound fertilizer, printing ink packing agent, weedkiller, bactericide.
Emulsification: Unsoluble liquid together with liquid does not separate
Cream, ice cream, animal oil, vegetable oil, protein, silicon oil, light oil, mineral oil, paraffin wax, wax cream, rosin.
Homogeneity: Make emulsification and suspended grain size finer with more even distribution.
Cream, flavouring, fruit juice, jam, condiment, cheese, fat milk, toothpaste, typing ink, enamel paint.
Thick liquid: Cell's tissue, organic tissue, the animal and plant tissues
Chemical reaction: Nanometer material, inflating with higher speed, synthesization with higher speed
Extraction: The vortex extraction
Depolymerization: Nanometer powder, dough powder







If you have any problem,please feel free to contact us.
