• Model NO.：TQSX
• Condition：New
• Customized：Customized
• Capacity：5-6.5 T,H
• Air Volume：3800-4100m3 ,H
• Power：0.75 Kw
• Weight：380kg
• Transport Package：Wooden Case
• Specification：1550x1830x2370 mm
• Trademark：CLJ
• Origin：China
• HS Code：84378000
• Production Capacity：4000 Units ,Year

Basic Info.

Model NO. TQSX Condition New Customized Customized Capacity 5-6.5 T/H Air Volume 3800-4100m3 /H Power 0.75 Kw Weight 380kg Transport Package Wooden Case Specification 1550x1830x2370 mm Trademark CLJ Origin China HS Code 84378000 Production Capacity 4000 Units /Year

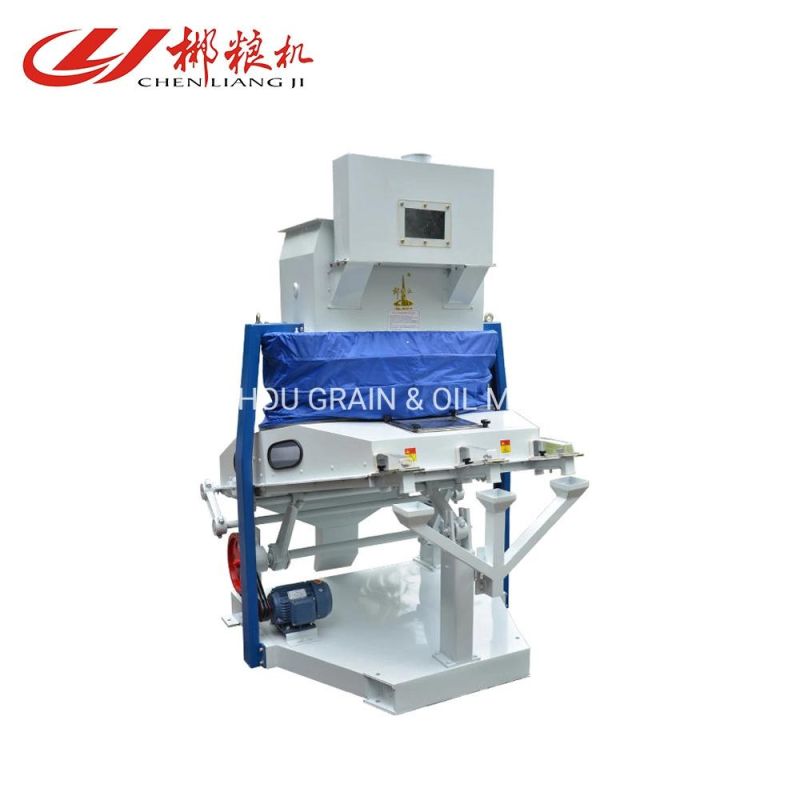

Product Description

Characteristic:
1. Unique selection chamber to seperate stones from grain, especially errective brwon rice.
2. Unique sieve stucture to save blowing rate.
3. Negative-pressure air suction to prevent dust from escaping the machine.



Model	TQSX168	TQSX125A	TQSX100B	TQSX85B	TQSX200
Output  (t/h)	10-12	7-8.5	5-6.5	3.5-4.5	14-16
Speed of Main Shaft r/min	485±15	485±15	485±15	485±15	485±15
Level Slant Angle of Stoning Plate (adjustable range)	11°-15°	10°-14°	10°-14°	10°-14°	11°-15°
Effective Operating Size of Stoning Plate(L×W)mm	1170×1640	1275*1200	1175*950	1175*800	1200*1990
Effective Operating Size of Selection Plate (length×width)mm	145×60	160*65	160*45	160*45	190*105
Air Suction volume m3/min	7500-7800	5400-6200	3800-4100	3200-3400	9800-10400
Equipment Resistance	40-50	40-50	40-50	40-50	40-50
Horizontal Slang Angle of Rocking Bar (degree)	35±1.5	35±1.5	35±1.5	35±1.5	35±1.5
Power of main machine(Kw)	1.5	1.1	0.75	0.75	2.2
Overall Dimension (length×width×height) mm	1826×1550×2365	1615*1375*2065	1515*1125*2065	1515*975*2065	1650*2220*2410
Machine Weight Kg	550	480	380	350	960
