• Model NO.：QS-520
• Dimension：2740*870*1200 mm
• Weight：190 Kg
• Max Dough：5 Kg
• Power：0.55 Kw
• Conveyor Belt：500*2160 mm
• Working Width：500 mm
• Adjustable Thickness：1-40 mm
• Certification：Ce
• Folding Size：810*690*1280 mm
• Package Size：910*790*1350 mm
• Transport Package：Standard Export Wooden Case
• Specification：520 mm
• Trademark：Hongling
• Origin：Guangzhou, China
• HS Code：8438100090
• Production Capacity：500 PCS,Month

Basic Info.

Model NO. QS-520 Dimension 2740*870*1200 mm Weight 190 Kg Max Dough 5 Kg Power 0.55 Kw Conveyor Belt 500*2160 mm Working Width 500 mm Adjustable Thickness 1-40 mm Certification Ce Folding Size 810*690*1280 mm Package Size 910*790*1350 mm Transport Package Standard Export Wooden Case Specification 520 mm Trademark Hongling Origin Guangzhou, China HS Code 8438100090 Production Capacity 500 PCS/Month

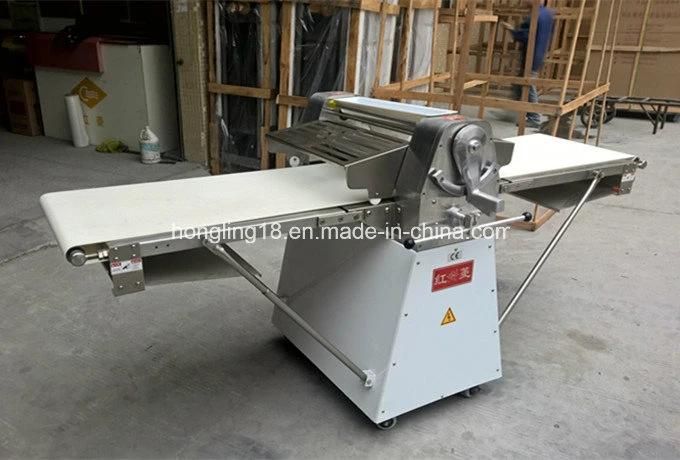

Product Description

Product descrition:

TEM	MODEL	Power	Voltage	Dimension (mm)	Weight	Working Standard
Dough Sheeter	QS-520S (Table Top)	0.55 KW	220 V/380 V	1780*950*620	129 KG	500 mm
Dough Sheeter	QS-450S(Table top)	0.55 KW	220 V/380 V	1780*830*620	120 KG	430 mm
Dough sheeter	QS-520	0.55 KW	220V/380V	2740*870*1200	190 KG	500 mm
Dough Sheeter	QS-520B	0.55KW	220 V/380 V	2740*870*1200	190 KG	500 mm
Dough Sheeter	QS-520A	0.55 KW	220 V/380 V	2740*950*1180	189 KG	500 mm
Dough Sheeter	QS-650B	0.75 KW	220 V/380 V	2940*1070*1200	225 KG	630 mm
Dough Sheeter	QS-380C	0.55 KW	220 V/380 V	2100*950*1200	100 KG	360 mm

machine performance:
1. Imported parts, good materials, the pinch roller has hard chromium plated,
non-stick and against scratches;
2. Unique oil immersion design, low noise, wear resistance;
3. The specially designed pinch roller and scraper to make uniform thickness, the thinnest is 1 mm.

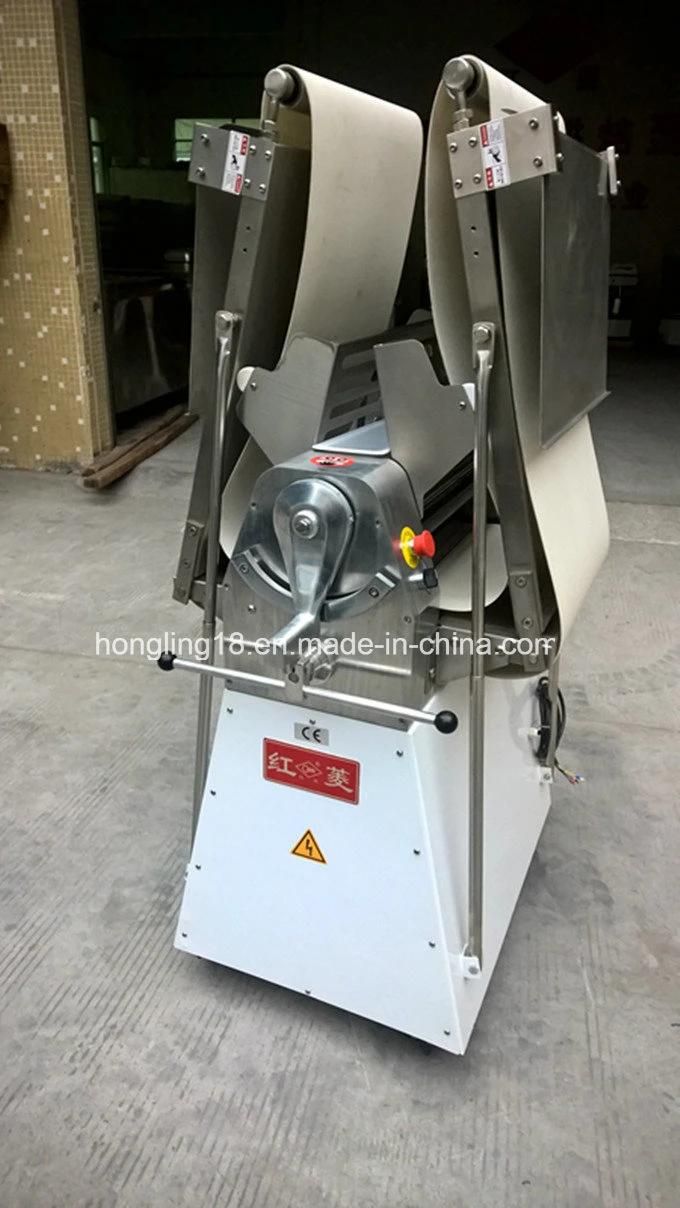

4. folding design, space saving, easy delivery;
5. Usage: All kind of pastries, croissant, also for small amount of dough rolling.

 Advantages:
1. Stainless steel platform.
2. The pedal and rolling pin can be installed, very convenient.
3. optional: automatic and manual.

no need turn off the machine to shift speed, automatic rolling/pressing, automatically reduce the height of pinch roller and other function.



Notice:

1, Test the machie empty to confirm the machine work properly before use.
2  the dough for rolling can not be hard (such as frozen dough), and do not adjust the thickness too much at one time, otherwise it will be bad for the machine stability and service life.

When the thickness of the dough is more than 10mm, each time it can be 5mm thiner; when the dough 5 ~ 10mm, each time decrease 2mm thickness; when the dough 5mm or less, it can be each time1mm decreasing.
3, It is prohibited to put any heavy goods on the transmission platform.
4, after the machine running 40 hours, please readjust the belt, chain to the appropriate position, in order to avoid transmission slipping off the chain;
5, After the machine running 80 hours, please add lubricant to the transmission parts,

6, Please keep the machine clean, the belts, chains and other transmission components can not be attached to flour or dirt or other items, in case the axle burn out or damage;
7. wipe the machine with clean dry cloth, do not use running water to clean, it is not strictly forbidden.
8, Any abnormal sound or other unsual conditions occur, please turn off the machine immediately and inform the professional maintenance staff.

Our Services:

1.We welcome your requirements/complaints and suggestions

2.We can make products as your own design, Dimension, material, function, etc.

3.We can provide English Manuals for products.

4.Provide technical support and after-sale services.

5.Any inquiries or complaints will be responsed within 24 hours.

6.Free maintenance and replacements will be provided if defects result from quality failure of our products.


2. Product Warranty
For most of the machine are 1 year warranty, but for some key parts of the machine, like heating tubes can be 8 years warranty and gas burner 5 years warranty, and lifetime technical support.

3. Spare Parts:
We can provide free spare parts if the order reach 5,000 USD, according to the order amount and products.
If the order is less than 5,000 USD, the customers can purchase the spare parts with the goods.
Spare parts will be shipped together with the goods.

4. Package:
Wooden crate or follow customer's requirements.
Carton Box+Foam+Plastic Bag+Wooden Crate.


Company advantages:

1. Set up in 1979. Guangzhou Hongling Electric Heating Equipment Co., Ltd produced f bakery equipment  for more than 35 years, the factory occupies more than 15, 000 square meters of workshop, locate in GZ.
2. Large output. The company has more than 200 emloyees in the workshop, it can produce bakery machine more than 10,000 sets per month.
3. A wide range of products: The factory produce all kinds of bakery equipment and accossories. Oven, Proofer, Mixer, Freezer, Sheeter, Moulder, Divider, Slicer, Baking Trays and so on. The customers can buy all the bakery equipment from one place, we can provide one stop purchase for bakery store, bread factory, hotel, etc.
4. Delivery on time: usually the delivery time is 15-30 days, if products in stock, usually can deliver in one week, according to order quantity.
5.Qualified and experienced technical team, ODM/OEM is welcome, a powerful expert team engaging in designing and developing
6.Strict quality control: Every product has been tested and mark 'qualified' before packing, and most of the products have CE certification. The products are manufactured according to the standards of ISO9001.
7. Global market: The company products have sold to more than 30 countries in Europe, Middle East, Southeast Asia, Africa and so on. And the company has more than 180 distribution agents at demestic market, sold to more than 80 cities in China.
8. Comany honors:
---Awarded ISO 9001 and ISO 2000 Quality System Certification in 1999.
---Won the most popular baking equipment brand in China during 2008-2014.
---Won the " Two decades of Trustworthy Enterprise" in 2015.
---Director unit of China Federation of Industry and Commerce
---Guangdong  Food service Industry Association member.
---China Quality Inspection Association group member.
