• Model NO.：FSFG 640,FSFG 740
• Condition：New
• Customized：Customized
• Speed：1.25-1.6m,S
• Load Capacity：8t,H- 220t,H
• Warranty：1 Year
• Transport Package：Wooden Box
• Trademark：AGS
• Origin：Zhenjiang
• HS Code：84378000
• Production Capacity：10000sets,Year

Basic Info.

Model NO. FSFG 640/FSFG 740 Condition New Customized Customized Speed 1.25-1.6m/S Load Capacity 8t/H- 220t/H Warranty 1 Year Transport Package Wooden Box Trademark AGS Origin Zhenjiang HS Code 84378000 Production Capacity 10000sets/Year

Product Description

Productppp

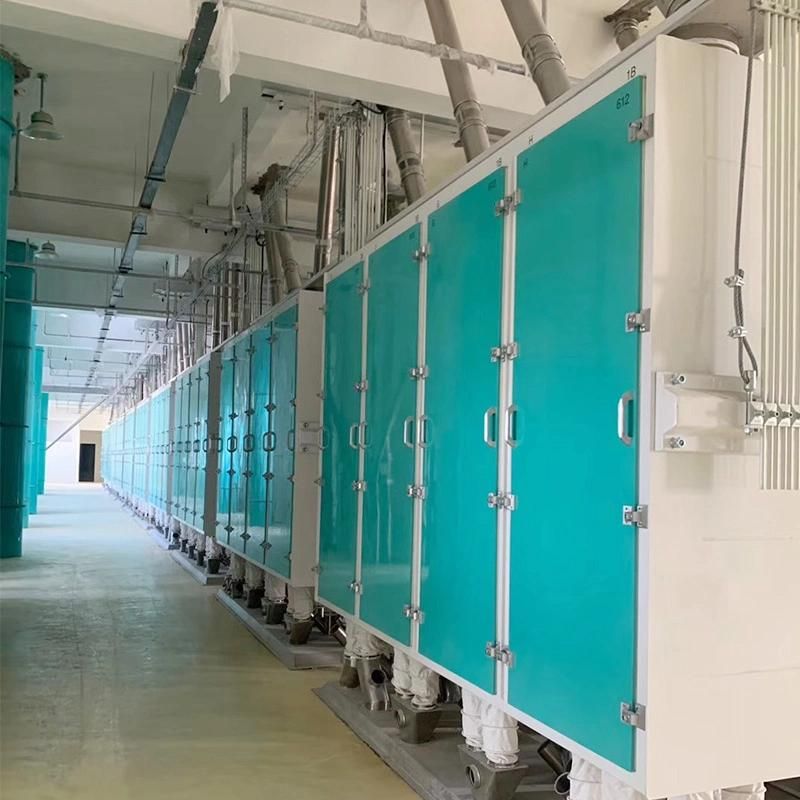

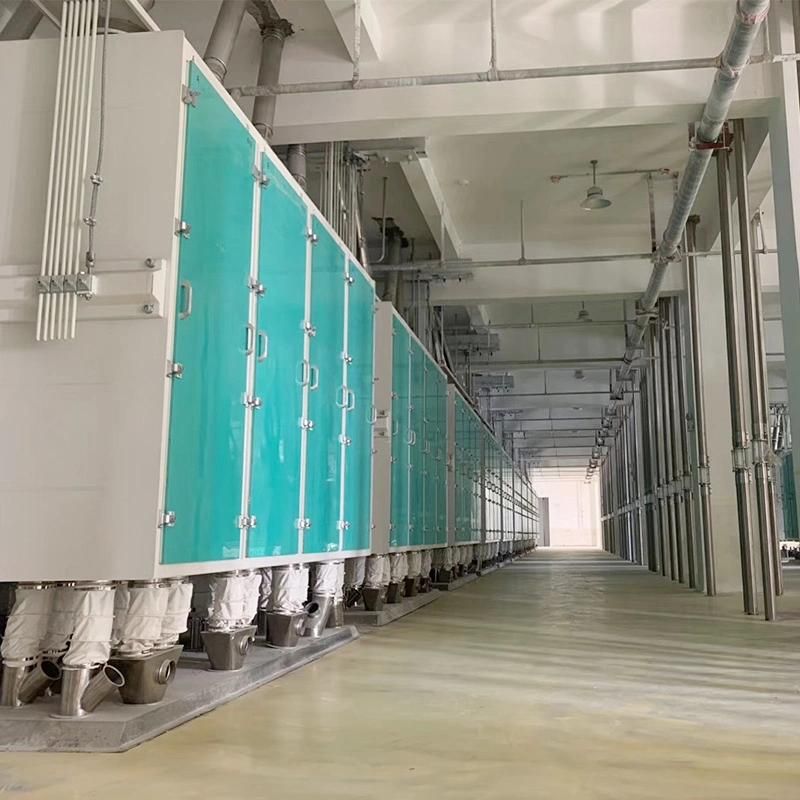

PFSFG 640 Plansifter/FSFG 740 Plansifter



Performance parameter Model	Comp.	Sieves of Comp.	Sieve Area Square meter	Main Shaft Speed	Radius of Gyration mm	Effective Sieve Height	Top Sieve Height (mm)	Power(Kw)	Weight (Kg)
FSFG640x4x27	4	23~27	32.3	245	≤65	1900~1640	125	3	3200
FSFG640x6x27	6	23~27	45.4	245	≤65	1900~1640	125	4	4200
FSFG640x8x27	8	23~27	64.6	245	≤65	1900~1640	125	7.5	5600



Performance parameter Model	Comp.	Sieves of Comp.	Sieve Area Square meter	Main Shaft Speed	Radius of Gyration mm	Effective Sieve Height	Top Sieve Height (mm)	Power(Kw)	Weight (Kg)
FSFG740x4x27	4	23~27	41.3	245	≤65	1900~1640	125	5.5	3850
FSFG740x6x27	6	23~27	62.1	245	≤65	1900~1640	125	7.5	4800
FSFG7440x8x27	8	23~27	82.7	245	≤65	1900~1640	125	11	6000

FSFG plansifter id mainly applied in sifting and grading for system material during milling process in milling industry. It is also used in other industries for granule materials.


1. Unique motor shaft sealing device ensures the flour does not enter the equipment;
2. It is equipped with a resilient support of the balance iron under the main shaft;
3. Using imported self-aligning roller bearings for drive shaft, to ensure highly concentric precise;
4. The top of sieve uses adjustment clamping mechanism, with simple, convenient and easy to operation;
5. Using the new sieve box, the novel design patterns of sieve box increase the sieve area and capacity;
6. Sieve door and the strict of channel sealing to ensure no powder fleeing and leakage;
7. Plansifter framework uses automobile frames steel bending, welding, strong rigidity and good fatigue resistance;
8. The completely enclosed structure is adopted for the machine has driven motor inside with attractive appearance.

Core technologies & Achievements:

• Engineering Procurement Construction
• Engineering Design
• Consultation
• Research And Development

Core Technology:




Related Products:

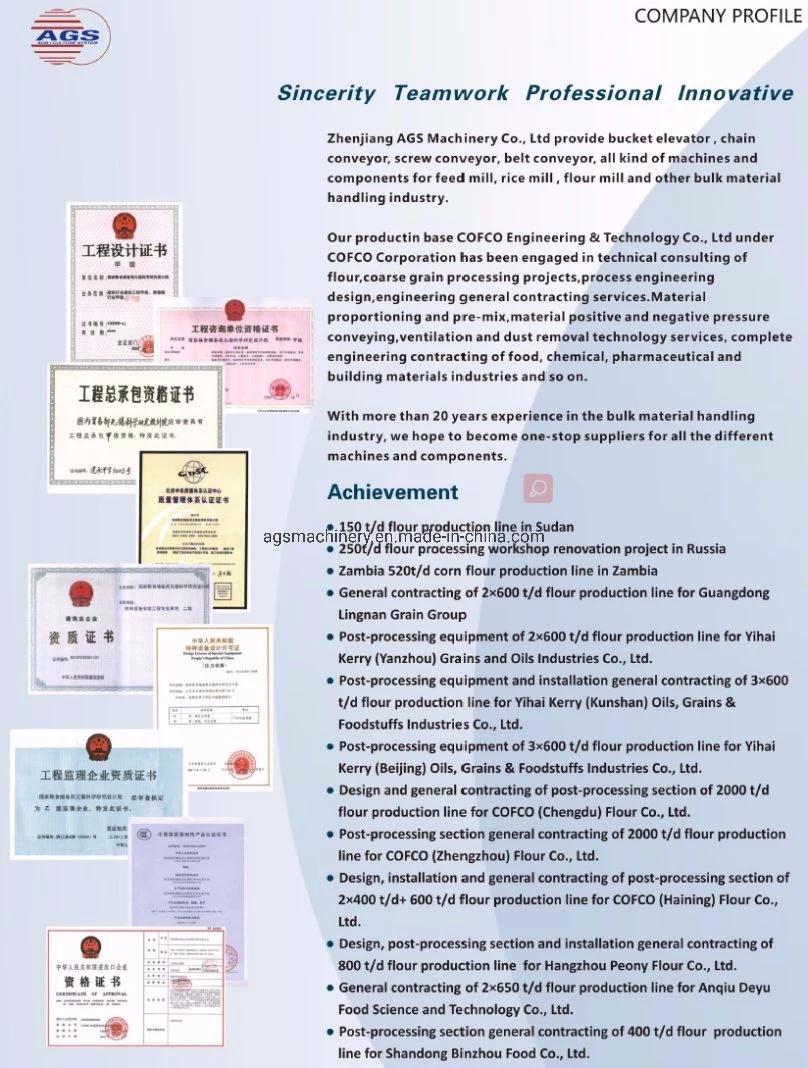

ABOUT AGS:
Zhenjiang AGS Machinery Co., Ltd manufacture and export conveyor parts in China.
Our Business:screw conveyor, chain conveyor, belt conveyor, bucket elevator, Roller mill, Purifier Bin Filter, spout pipe, sieve cleaner, chain ,all kind of machines and components for flour mill ,feed mill, rice mill , and other bulk material handling industry.
Exported country:South Asia, South Africa, West Africa, South American and Russia and the Philippines.
QC standard:All the products are tested before delivery according to relevant International Standard or customers' requirements.
OEM service: Besides the international standard products, we can also design and manufacture new products according to drawings or requirements.
Our purpose:With more than 20 years experience in the bulk material handling industry, we hope to become one-stop suppliers for all the different machines and components
