• Model NO.：ACM300
• Suitable for：Green Peas, Broad Beans, Peanuts, Sunflower Seeds
• Electricity Requirement：380V,220V 50Hz,60Hz 3phase
• Operating Mode：Automatic
• Compressed Air Supply：0.6-0.8MPa
• Power：11.35kw
• Material：Stainless Steel 304#
• Weight：500kg
• Production Load：300kg,H
• Name：Factory Hot Sale Peanut Coating Machine
• Transport Package：Wooden Box
• Specification：2m * 2m * 2.5m
• Trademark：Handyware
• Origin：Foshan
• HS Code：8438800000
• Production Capacity：200~600kg,H

Basic Info.

Model NO. ACM300 Suitable for Green Peas, Broad Beans, Peanuts, Sunflower Seeds Electricity Requirement 380V/220V 50Hz/60Hz 3phase Operating Mode Automatic Compressed Air Supply 0.6-0.8MPa Power 11.35kw Material Stainless Steel 304# Weight 500kg Production Load 300kg/H Name Factory Hot Sale Peanut Coating Machine Transport Package Wooden Box Specification 2m * 2m * 2.5m Trademark Handyware Origin Foshan HS Code 8438800000 Production Capacity 200~600kg/H

Product Description

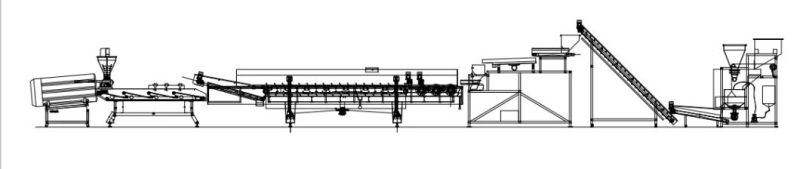

Automatic Coated Peanuts Processing Line with capacity 200kg/h,300kg/h,500kg/h

Introduction

   Automatic coating machine is responsible for peanut-like product coating, such as broad bean, green pea, sunflower seed, even small fish. It contains a electric cabinet, which can monitor entire coating process. User just need to pour in peanut-like products and flour, then every other thing is left to automatic control system. Due to its unique characteristics like easy maintenance, diversification and low cost, it seems very popular in the market, also because its unique characteristics, this machine is frequently used as a core part of a processing line, for example, peaut coating line, green pea coating line, broad bean frying line. Whenever you wanna add a coating line, this machine should be a major choice in your hand.

The process is as follow:

1. The Automatic Coating Machine coats the peanuts with syrup and flour mix.
2. Fines are removed using the sifting machine. Sifted peanuts are stored in a hopper. A vibrating feeder will feed peanuts from the hopper into the frying pan.
3. The frying system will fry the peanuts. The system includes a frying pan, heat exchanger, burner, online oil filter and oil storage tank.
4. After peanuts exist from the frying pan, excess surface oil will be blown off as they are on the de-oil conveyor.
5. The peanuts are then sent for seasoning.


                 Coated, before frying                                                                                           After frying

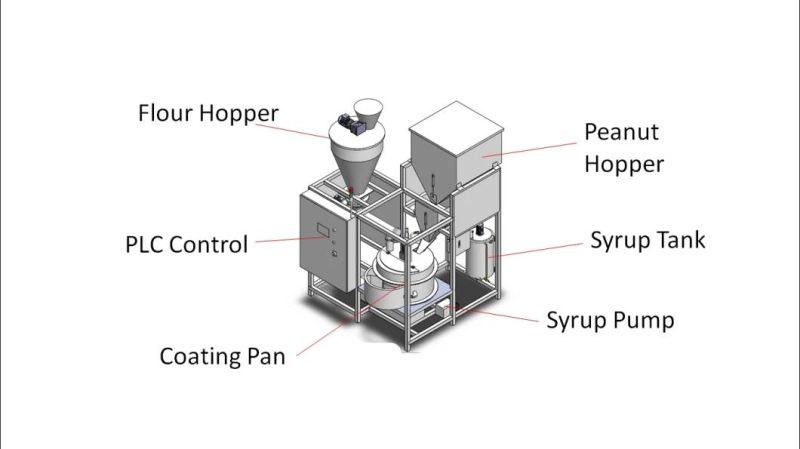

Automatic Coating Machine:


The Automatic Coating Machine has the following different models catering to different capacity requirement:


Model	Capacity	Feature	Power	Dimension (mm)
ACM200	120-200kg/h	Single coating pan	8.21KW	2000 x 2000 x 2500
ACM300	220-300kg/h	Single enlarged coating pan	8.21KW	2000 x 2000 x 2500
ACM600	500-600kg/h	Double enlarged coating pan	16KW	2400 x 2000 x 3500

Frying System
1. Prevent Over-cooking• Non-direct heating reduces oil rancidity
• Heat exchanger used to maintain desired cooking oil temperature
 2. Cleaner Oil• Low oil volume and rapid oil turnover assure fresh product with along shelf life. Optimal oil level is automatically maintained
• Circulating oil keeps fines in suspension for efficient removal. 100%of the system oil volume passes through a filter to remove product particles for the highest oil and product quality.
 3. Oil Cost Saving• No oil discard required if run continuously
 4. Easy to control• Central control panel to manage process parameters
 5. Top Quality• Manufactured using high quality stainless steel (304)
